IR Night Vision America License Plate Rear View Car Camera Cm-315b

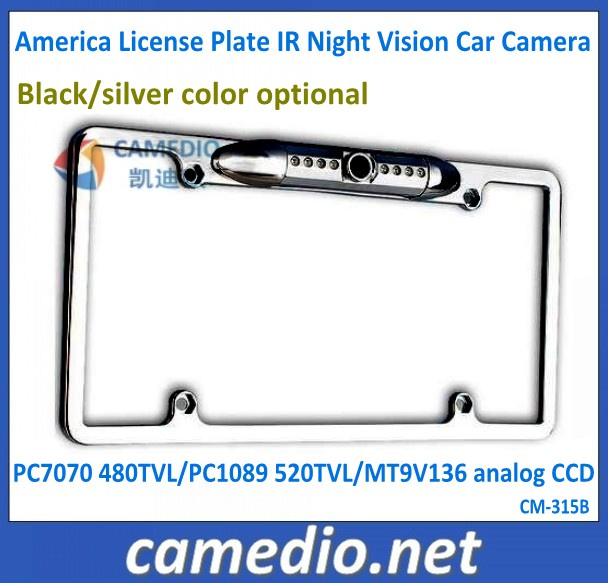

Name: IR Night Vision America License Plate Rear View Car Camera Cm-315b
Brand: ibuyautoparts.com
SKU: 693788022
Availability: InStock
Rating: 4.5 (27 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1)Exquisite high cleass Zinc alloy shell design

2) Built in 8pcs IR for better night vision at night

3)Waterproof design, day/night vision

4)Black/silver housing avilable

5)4 Kinds of image sensors available

Features:
High definition
Shockproof
Waterproof, shatterproof protection level equals to IP67K
Super wide angle(135° )
Night-vision function: Eight LED lights
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Camera angle is adjustable
Performs in rugged conditions. Operating temperature: -20º C +70º C
Mirror / Real optional
Reversing grid is optional
Three working positions: Protection, reverse, rear view
CCD chips available
Hidden-type, specially designed for car rear view systems

Electrical Parameters
Input voltage: 12V
Input current: 80MA-120MA
Average power consumption: <1W
Environmental Parameter
Operating temperature: -20~+75(RH95%, Max)
Storage temperature: -30~+85(RH95%, Max)
The IP rating: IP67
Optical Parameter
Image sensor: CMOS
Signal system: Analog signals
TV line: 480line
Effective pixels: 648*488
Scanning system: 1/50Hz, 1/60Hz
Sensing area: 5.5um*5.5um
Minimum illumination: 0.5lux
Night vision distance: 10m-25m
Lens: 1.7mm
Signal to noise ratio: >48db
Shutter speed: 1/10000second
Video output: 1.0vp-p. 75ohm

Prod Model:	CM-315B silver
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC1030/PC7070/Mt9V136/PC1089
Camera Degree:	170 Degree
IR Lights:	8
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	628X582
Resolution:	420tvl/480 Tvl/520tvl Optional
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines
