| Prod Model: |
603010043 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Type: |
Auto Maintenance and Cleaning |
| Model: |
CNC600 Injector Cleaner |
| Certification: |
CE |
| Testing Equipment Type: |
Injector Cleaner |
| Diagnostic Tool Type: |
Auto Maintenance and Cleaning |
| Update Method: |
No Update |
Product Description

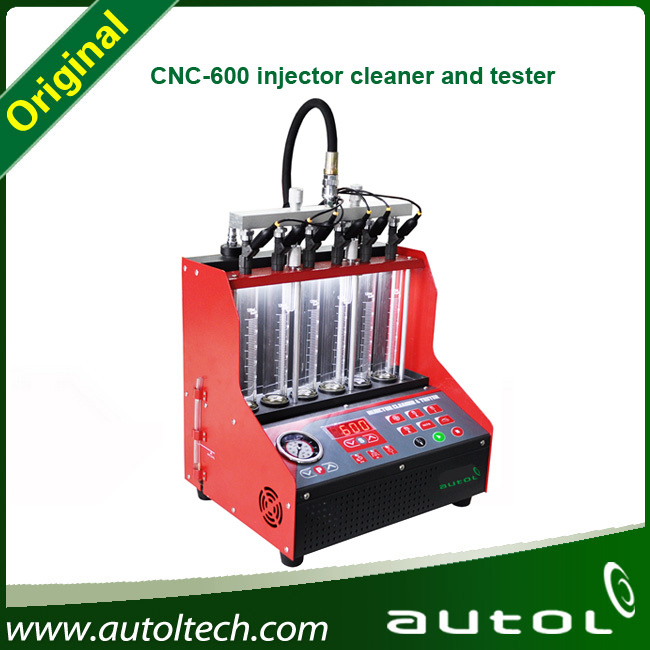

| Injector Cleaner & Tester CNC-600 AC220V/AC110V~50/60Hz |
CNC-600 is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.
1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.
CNC Series
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)
Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain
Specifications
Power supply: AC220V/AC110V~50/60Hz
Input power of main unit: 200W
Ultrasonic cleaner power: 60W
Pressure: 0~7bar
Accuracy of tube: ±2%
RPM range: 0~9999rpm, step: 10 rpm
PW range: 0.1~30ms, step: 0.1ms
Timing: 1~30min
LED display
LED background light
Membrane keypad
Top-supply fuel distributor
Features
Optimization structure design
LED backlight
Be equipped with cooling fan
Special material seals
Friendly interface
Remark: Standard Package Of CNC600 Is Not With any liquid ( Testing and cleaning liquid )due to the regulation of Chinese Customs,Please note.
