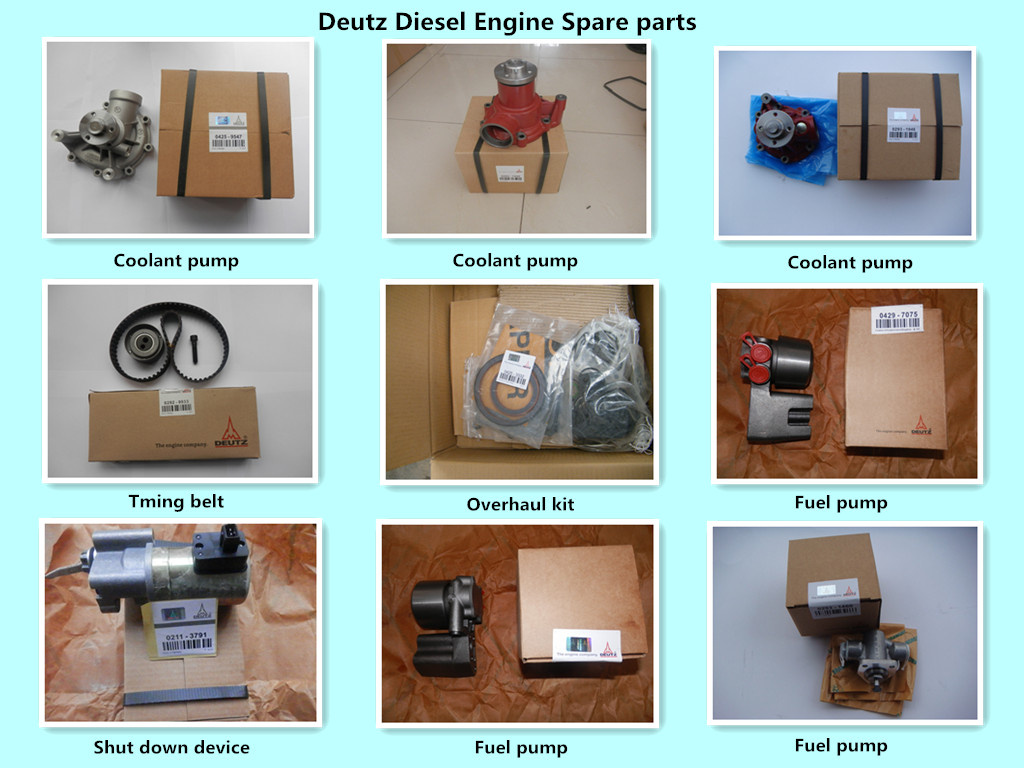

We can supply deutz diesel engine spare parts of bfl912/913, fl413/513, fl511 and bfm1015 series deutz diesel engine. The deutz engine spare parts scope inculdes: Crankshaft, crankshaft pulley, bolts, crankshaft pulley washer, connecting rods, connecting rod bush, rod bearing, rod bearing, rod bearing, piston/rings assembly(std), ring set, cylinder head cover, cylinder cover gasket, cylinder head, cylinder head gasket, inlet valve, exhaust valve, valve lucking pieces, spring, blower assembly, crankshaft, camshaft, cylinder liner, cylinder head, cylinder block, starter, alternator, v-belt, fan, air filter, oil filter, fuel filter, piston, piston ring.
Product Description
The DEUTZ DIESEL ENGINE PARTS (Aircooled series) includes 912/913/413/513/511, we can supply all the DEUTZ OEM Parts and DEUTZ replacement parts for the above mentioned engine. There is a colosed cooperation relationship between us and the DEUTZ OEM manufactures, which make our cost lower than competitors, the strick products testing &quality control make the quality reliable. In addition, we also supply warranty for all the ENGINE PARTS we supplied. If there is quality problem, we can supply new parts for compensation.
Main Parts list
Component Group | Spare Parts | Ident. No. | DEUTZ Number |
| BLOCK | Block | 01 | 15 | 02239224 |
| | Front Cover | 01 | 152 | 02235812 |
| | V-Belt Tension Roller | 01 | 250 | 02136229 |
| | Front Oil Seal | 01 | 160 | 02234133 |
| | Clinder Sleeve | 04 | 1 | 02231924 |
| | Adjustment Gasket | 04 | 3 | 02137256 |
| | Gear | 05 | 8 | 03362737 |
| | Crankshaft Assy | 05 | | 02166932 |
| | Crankshaft | 05 | | 02136934 |
| | Ring Gear | 05 | 56 | 02131081 |
| | Flywheel (With Ring Gear) | 05 | 57 | 02160705 |
| | Flywheel | 05 | | 02240165 |
| | Connecting Rod | 06 | 1 | '02130571 |
| | Connecting Rod | 06 | 1 | '02230465 |
| | Connecting Rod | 06 | 1 | '02232059 |
| Connecting Rod | Connecting Rod Bushing | 06 | 3 | 03371612 |
| | Connecting RodAssy | 06 | 1 | 02101119 |
| | Connecting RodAssy | 06 | 1 | 02232060 |
| | Piston | 07 | 1 | 02233365 |
| Piston & Piston Ring | Piston Pin | 07 | 2 | 03371660 |
| Cylinder Head | Cylinder Head | 08 | 12 | 02237310 |
| | Intake Valve | 08 | 29 | 02137457 |
| | Exhaust Valve | 08 | 30 | 02232717 |
| | Cylinder Head Bolt | 08 | 33 | 02101681 |
| | Camshaft complete | 10 | 1 | 02137336 |
| | Rocker Arm | 11 | 12 | 02230852 |
| | Tappet | 11 | 17 | 03371885 |
| | Push Rod | 11 | 18 | 03371836 |
| | Valve Rocker Arm Seat | 11 | 9 | 03371867 |
| | Lube Oil Pump | 14 | 1 | 02130385 |
| | Oil Filter | 15 | | 02232147 |
| | Oil Filter Braket | 15 | 26 | 02232100 |

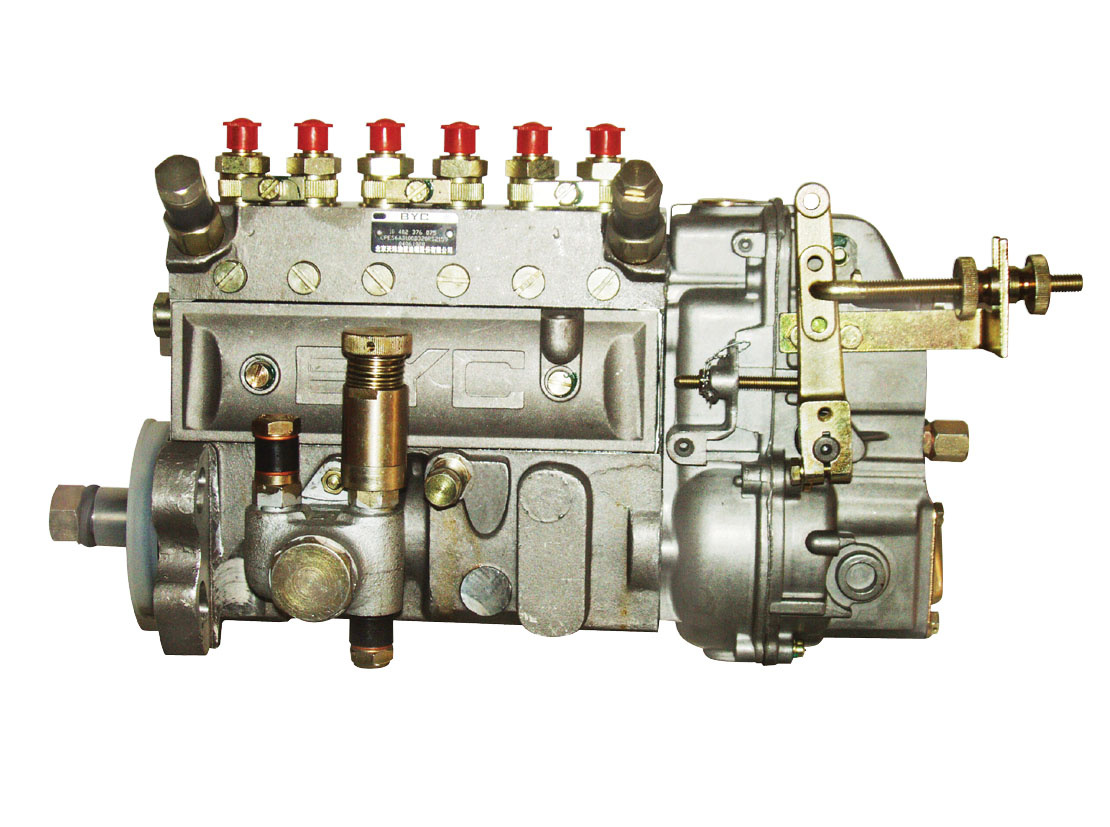

| | Injection Pump | 17 | 12 | 09126332 |
| | Fuel Pump Piston-type | 17 | 37 | 03363174 |
| Fuel Pump | Fuel Pump (Diaphram Type) | 17 | 17 | 02134511 |
| Injection Pump | Injection Advance Device | 18 | 2 | 02230840 |
| | Injectior Assy | 19 | 6 | 02233291 |
| Injector | Injectior Assy | 19 | 1 | 02233272 |
| | Fuel Filter | 20 | 1 | 01160243 |
| | Air Cleaner With Paper Core | 22 | 2 | 02240464 |
| | Filter Cartridge | 22 | 3 | 02241034 |
| | Oil Bath Air Cleaner (Open in sides) | 22 | 5 | 02102537 |
| | Cooling Air Blower Assy | 39 | 14 | 02235462 |
| Cooling Air Blower | Driven Wheel | 39 | 2 | 02235067 |
| | Narrow V-Belt (2x9.5x1325) | 39 | 15 | 02235714 |
| Starter | Starter (B22R24V*4.8KW) | 44 | 5 | 01163626 |
| Alternator | Alternator (J3RL14V*33A) | 44 | 41 | 01171617 |
| | Alternator (E33RL28V*27A) | 44 | 41 | 01172650 |
| | ElasticSupport (Steel Plate Welded) | 46 | 2 | 02247341 |
