Detailed Specifications| Inside dimension | 6300×3450×2800mm(L×W×H) |
| Outside dimension | 7550×3550×3500mm(L×W×H) |
| Basement & Floor | Complete Steel assemble,3 rows of indented plate, 2 rows of grille, |
| ramp | 2 pcs ramp. Each one: 2000×750×300mm (L×W×H), color:blue. |
| Ceiling System | Dimension:6400×3550×520mm (L×W×H), with lights on the 2 sides of roof,part of it with filter,small part with air-proof seal plate |
| Generator Setting | Back side exhaust air,quadrate steel frame, blue coated steel, |
| Intake & Exhaust air system | Generator dimension: 1300×1100×1100mm (L×W×H);with 1 set 7.5KW fan for exhaust air,belt-drive motor position: outside;Air capacity is 21000m³/h,Electric damper control intake and exhaust air capacity. |
| Sealed Type | Back assemble wall panel of 50mm EPS,3 sides with PVC soft curtain,curtain color: upper part: white, middle part:transparent,lower part: blue |
| Ceiling Installation | Steel rope hanging or steel pole supporting the roof(Option). |
| Filtering System | Pocket pre-filter ,Ceiling filter,Floor filter(fibreglass). |
| Lighting System | 8units x 4pcs=32pcs36W |
| Control System | Control the operation of fan, lighting and electric damper |
| Voltage frequency | As request |
| Total Power | 8.7KW |
Advantages of a Preparation RoomA. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D. Optional heat units are available for high production needs.
Standard Prep Stations optionalL Semi-Downdraft or Pit-Style Downdraft or Full Downdraft
L With or without overhead plenum
L With or without heater & intake system
L Free-standing with structural steel support or suspended from the shop ceiling
We also can customize according to your need.

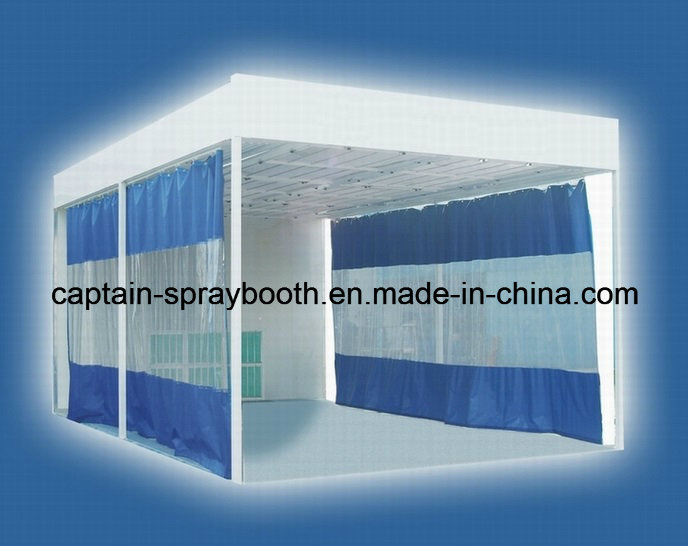

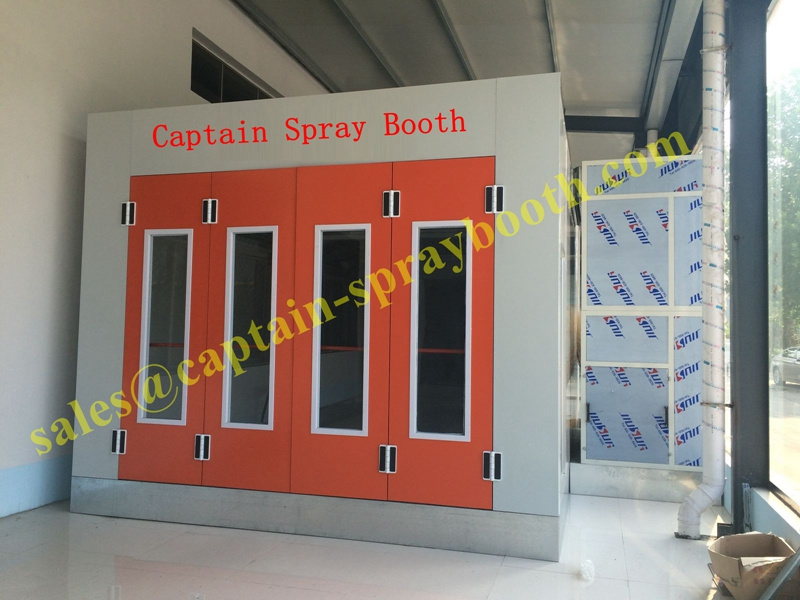

Pictures of our spray boothFront View

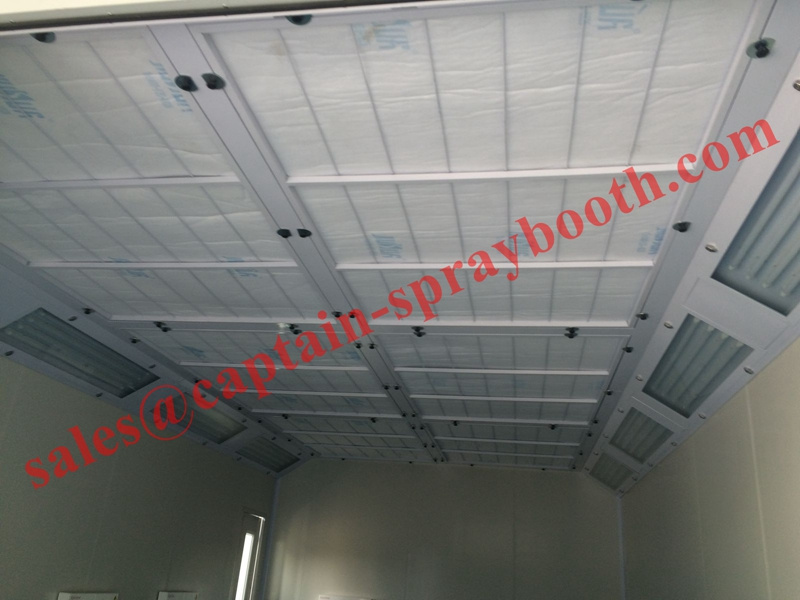

The Ceiling

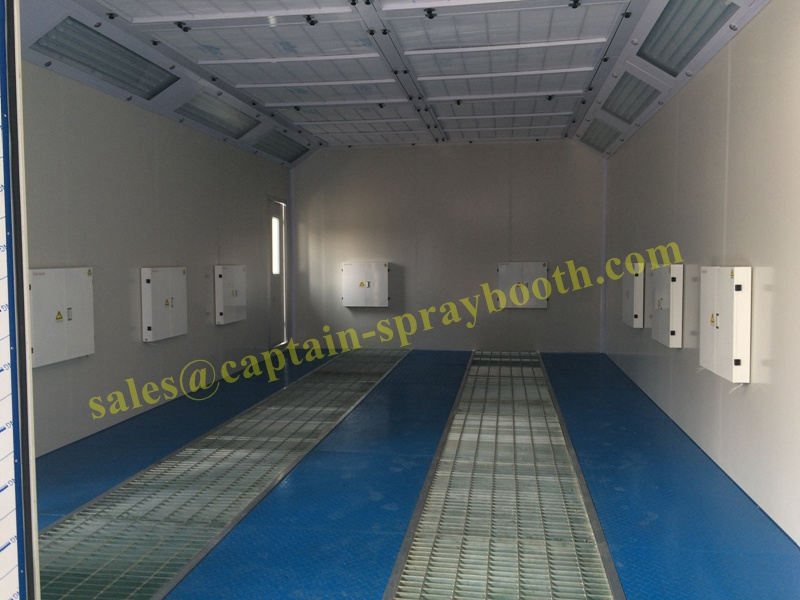

The inside View--for basement, we also can do full girlles, 3 grilles in the middle.

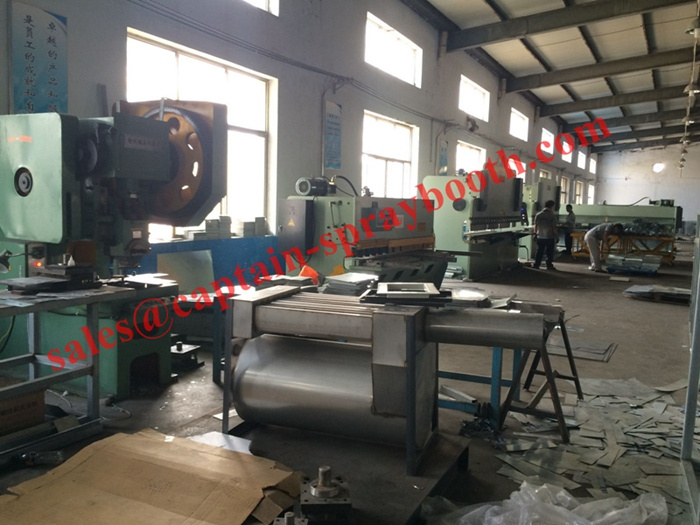

Production machine--high technology machine makes sure precise production
IntroductionCaptain Auto Equipment Co.,Ltd is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We SupplyCustomized service, More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions. The draw we made according to our buyer's need.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !

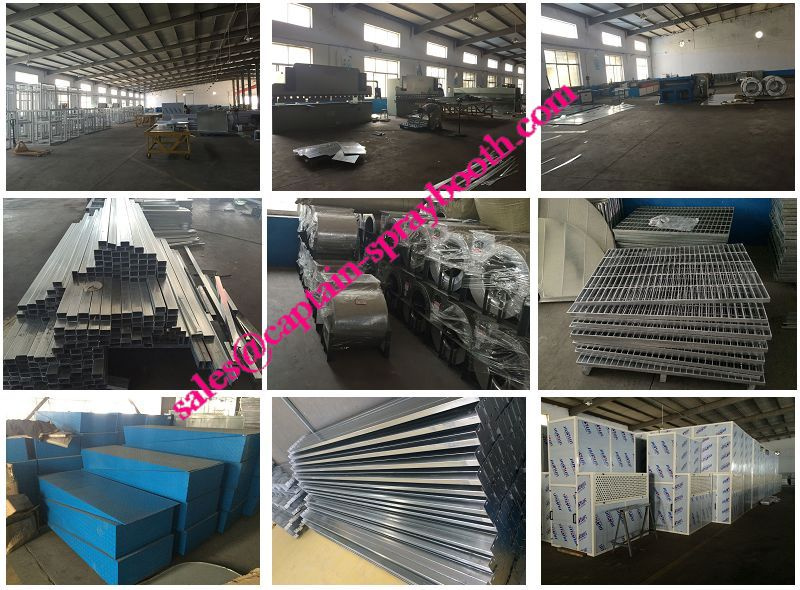

From the picture you can see we have engough stock to ensure fast delivery!
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
