Application for Forklift TOYOTA, HYUNDAI, TCM, NISSAN, CLARK, LINDE, KOMATSU, NICHIYU, DOOSAN, HELI AND ETC.Advantages of GRIPKING Solid tyres1. The resilient tires are compatible with the standard rims of Pneumatic tires, so it can replace Pneumatic tires without changing rims.
2. Wear resisting rubber compound, make sure the tyre longer service life, lower rolling resistance, puncture free.
3. Resilient cushion rubber center, improve shock absorption, drivers experience stable and comfortable operation, reduce damage, extend vehicle service life.
4. High strength and steel reinforce base rubber.
Specification and technical data| Tire Size | Rim | O.D.
(mm) | S.W.
(mm) | Weight
(kg) | Load Capacity(kg)
Counter Balanced Lift Trucks | Other Industrial Vehicles(kg) |
| 10km/h | 16km/h | 25km/h |
| Driving | Steering | Driving | Steering | Driving | Steering | 16km/h |
| 4.00-8 | 3.00/3.75 | 423 | 120 | 14.5 | 910 | 700 | 830 | 640 | 765 | 590 | 590 |
| 5.00-8 | 3.00D/3.50D | 469 | 127 | 18.5 | 1210 | 970 | 1175 | 880 | 1095 | 820 | 840 |
| 5.50- 15 | 4.50E | 676 | 144 | 41 | 2525 | 1870 | 2415 | 1790 | 2195 | 1625 | 1690 |
| 6.00-9 | 4.00E | 545 | 148 | 28 | 1920 | 1535 | 1855 | 1390 | 1730 | 1295 | 1325 |
| 6.50-10 | 5.00F | 597 | 158 | 37.5 | 2640 | 2110 | 2545 | 1910 | 2370 | 1780 | 1820 |
| 6.50-16 | 5.50F | 748 | 165 | 59 | 3425 | 2740 | 3285 | 2465 | 3080 | 2310 | 2365 |
| 7.00-12 | 5.00S | 683 | 167 | 48 | 3015 | 2410 | 2910 | 2185 | 2710 | 2035 | 2075 |
| 7.00-15 | 5.50S/6.00 | 759 | 186 | 64.5 | 3590 | 2870 | 3465 | 2600 | 3225 | 2420 | 2475 |
| 7.50-16 | 5.50F | 819 | 181 | 77 | 3910 | 3130 | 3780 | 2835 | 3520 | 2640 | 2700 |
| 8.25-12 | 5.00S | 735 | 206 | 76 | 3325 | 2660 | 3215 | 2410 | 2995 | 2245 | 2295 |
| 8.25-15 | 6.50T/5.50S | 847 | 212 | 97 | 4940 | 3950 | 4765 | 3575 | 4440 | 3330 | 3405 |
| 8.25-20 | 6.50T/7.00 | 992 | 219 | 130.2 | 5425 | 4340 | 5240 | 3930 | 4880 | 3735 | 3475 |
| 15×4.5-8 | 3.00D/3.25I | 380 | 106 | 10 | 905 | 725 | 875 | 655 | 805 | 605 | 625 |
| 16×6-8 | 4.33R | 418 | 156 | 16.8 | 1500 | 1200 | 1445 | 1085 | 1345 | 1010 | 1035 |
| 18×7-8 | 4.33R | 457 | 154 | 20.7 | 2350 | 1880 | 2265 | 1700 | 2110 | 1585 | 1620 |
| 21×8-9 | 6.00E | 535 | 189 | 35 | 2810 | 2250 | 2715 | 2035 | 2530 | 1895 | 1940 |
| 23×9-10 | 6.50F | 595 | 211 | 52 | 3420 | 2735 | 3300 | 2475 | 3075 | 2305 | 2355 |
| 23×10-12 | 8.00G | 597 | 230 | 52 | 4005 | 3205 | 3845 | 2885 | 3605 | 2705 | 2765 |
| 27×10-12 | 8.00G | 683 | 236 | 73 | 4465 | 3570 | 4315 | 3235 | 4020 | 3015 | 3080 |
| 28×9-15 | 7.00 | 706 | 230 | 69 | 4090 | 3270 | 3945 | 2960 | 3675 | 2755 | 2820 |
| 200/50-10 | 6.50F | 458 | 198 | 25.3 | 2370 | 1900 | 2290 | 1720 | 2135 | 1605 | 1630 |
| 250-15 | 7.00/7.50 | 735 | 235 | 77.5 | 4365 | 3490 | 4220 | 3160 | 3930 | 2955 | 3010 |
| 300-15 | 8.00 | 838 | 256 | 115.5 | 5990 | 4790 | 5780 | 4335 | 5380 | 4035 | 4130 |
| 355/65-15 | 9.75 | 823 | 301 | 134 | 7120 | 5700 | 6880 | 5170 | 6410 | 4820 | 4910 |
| 9.00-16 | 6.50 | 869 | 214 | 113.0 | 5135 | 4110 | 4965 | 3725 | 4625 | 3470 | 3550 |
| 9.00-20 | 6.50T/7.0 | 997 | 238 | 154.4 | 6450 | 5160 | 6253 | 4675 | 5805 | 4355 | 4450 |
| 10.00-20 | 7.00/7.50/8.0 | 1033 | 248 | 173.0 | 7725 | 6180 | 7460 | 5595 | 6945 | 5210 | 5330 |
| 11.00-20 | 7.50/8.0 | 1049 | 270 | 194.0 | 8440 | 6750 | 8160 | 6110 | 7610 | 5680 | 5840 |
| 12.00-20 | 8.00/8.50/10.0 | 1103 | 285 | 231.0 | 8640 | 7200 | 7885 | 6570 | 7320 | 6100 | 6100 |
| 12.00-24 | 8.50/10.0 | 1208 | 302 | 298.0 | 9575 | 7655 | 9235 | 6925 | 8600 | 6450 | 6595 |
| 14.00-20 | 10.00 | 1249 | 328 | 365.0 | 10800 | 8640 | 10430 | 7840 | 9730 | 7315 | 7450 |
| 14.00-24 | 10.00 | 1329 | 328 | 393.0 | 12760 | 10210 | 12320 | 9240 | 11460 | 8595 | 8800 |

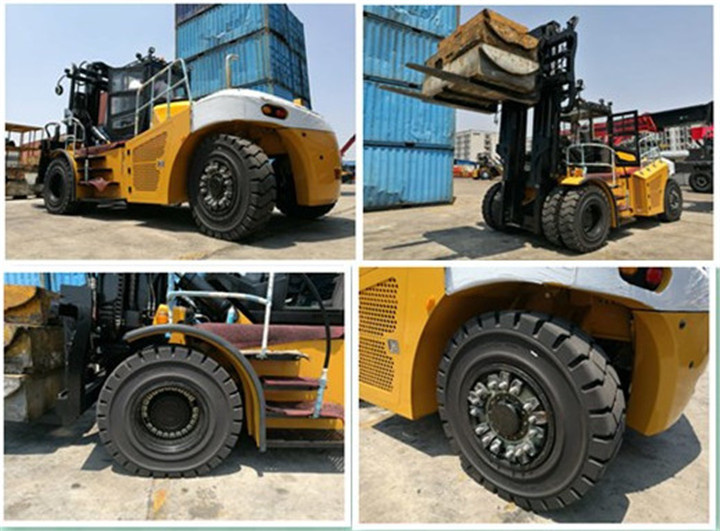

14.00-24 Solid tyre on SANY heavy forklift truck
Loading Solid tyres, export to USA, KOREA, AUSTRALIA, EUROPE, SOUTH EAST ASIA, AFRICA COUNTRIES
Skid Steer Tyre| SIZE | PR | PATTERN | TYPE | T.D
(mm) | Std. Rim | Max Load | Inflation Pressure | Speed
(mph) | S.W.
(mm) | O.D.
(mm) |
| lbs | kg | psi | kPa |
| 12-16.5 | 14 | L-5 | TL | 43 | 9.75 | 6780 | 3075 | 90 | 620 | 5 | 315 | 861 |
| 10-16.5 | 14 | L-5 | TL | 42 | 8.25 | 6010 | 2725 | 105 | 725 | 5 | 270 | 785 |
| 12-16.5 | 14 | L-4 | TL | 37 | 9.75 | 6780 | 3075 | 90 | 620 | 5 | 315 | 861 |
| 10-16.5 | 14 | L-4 | TL | 36 | 8.25 | 6010 | 2725 | 105 | 725 | 5 | 270 | 785 |
| 12-16.5 | 14 | X89 | TL | 43 | 9.75 | 6780 | 3075 | 90 | 620 | 5 | 315 | 861 |
| 10-16.5 | 14 | X89 | TL | 42 | 8.25 | 6010 | 2725 | 105 | 725 | 5 | 270 | 785 |
| 27X8.50-15 | 10 | X89 | TL | 33 | 7.00 | 3220 | 1460 | 80 | 550 | 5 | 221 | 686 |
| 5.90-15 | 8 | X89 | TL | 26 | 5.00 | 2100 | 950 | 90 | 620 | 5 | 152 | 686 |
| 5.70-12 | 8 | X89 | TL | 20 | 4.50 | 1870 | 850 | 90 | 620 | 5 | 146 | 574 |
| 27X10.50-15 | 8 | R-4 | TL | 23 | 8.50 | 3100 | 1405 | 60 | 415 | 5 | 267 | 686 |
| 27X8.50-15 | 8 | R-4 | TL | 23 | 7.00 | 2890 | 1310 | 60 | 415 | 5 | 221 | 686 |
| 23X8.50-12 | 8 | R-4 | TL | 18 | 7.00 | 2030 | 920 | 60 | 415 | 5 | 221 | 596 |
| 12-16.5RG | 12 | R-4 | TL | 26 | 9.75 | 6320 | 2865 | 80 | 550 | 5 | 321 | 820 |
| 12-16.5BG | 10 | R-4 | TL | 17 | 9.75 | 5600 | 2450 | 65 | 450 | 5 | 321 | 820 |
| 10-16.5RG | 10 | R-4 | TL | 24 | 8.25 | 4710 | 2135 | 75 | 520 | 5 | 274 | 774 |
| 10-16.5BG | 8 | R-4 | TL | 16 | 8.25 | 4140 | 1880 | 60 | 415 | 5 | 274 | 774 |
| 12.5/80-18 | 12 | I-3 | TL | 29 | 9.00 | 2625 | 1190 | 53 | 365 | 5 | 312 | 1004 |
| 26X12.00-12 | 12 | X-15 | TL | 27 | 10.50 | 42880 | 1940 | 75 | 520 | 5 | 300 | 670 |
| 31X15.5-15 | 12 | X-15 | TL | 26 | 13.00 | 4630 | 2100 | 60 | 415 | 5 | 402 | 802 |
Our Warehouse
Our Duty and Services1. We can press the rim and tyre together if customer need.
2. Shortest lead time, generally around 15 days after confirmation the order.
3. After sales advice, how to assemble, how to use under correct method, how to maintain the tyres.
4. All products before out of our factory must have strict inspection to make sure the tyre with high quality to customer.
5. OEM or new products develop are welcome and accepted.
For further information or any questions, please kindly send me an inquiry or via below contact information:
Contact person: Jason
Mobile: +86 158 0659 6262Web: www.oriental-sunrise.com
Oriental Sunrise Corporation Limited is a professional tyre manufacturer located in the beautiful seaside city Qingdao of Shandong Province for years.
Specialised in OTR Tyre, Industrial tyre, Solid and Pneumatic forklift tyre, truck tyre, car tyre, not only relying on advanced technology, world class production and testing equipments, but also the spirits to put the best possible tires on the road and the desire to satisfy customer's expectation.
Nowdays, we have got most certifications in the tire industry, including DOT, ECE, CCC, ISO9001, REACH, S-MARK, TS16949, GCC, BIS, SMARTWAY, INMETRO, SNI, SASO, SONCAP, and etc.
Products exported to North America, South America, Europe, Middle East, Australia and South East Asia countries, customers are very satisfy with tire performance. Especially for port tire, quality stable and service is much longer, have advantage technology from Japan and Taiwan and tens of years experience.
Our attitude is quality first, and have long term cooperation with our business partner and grow together.
