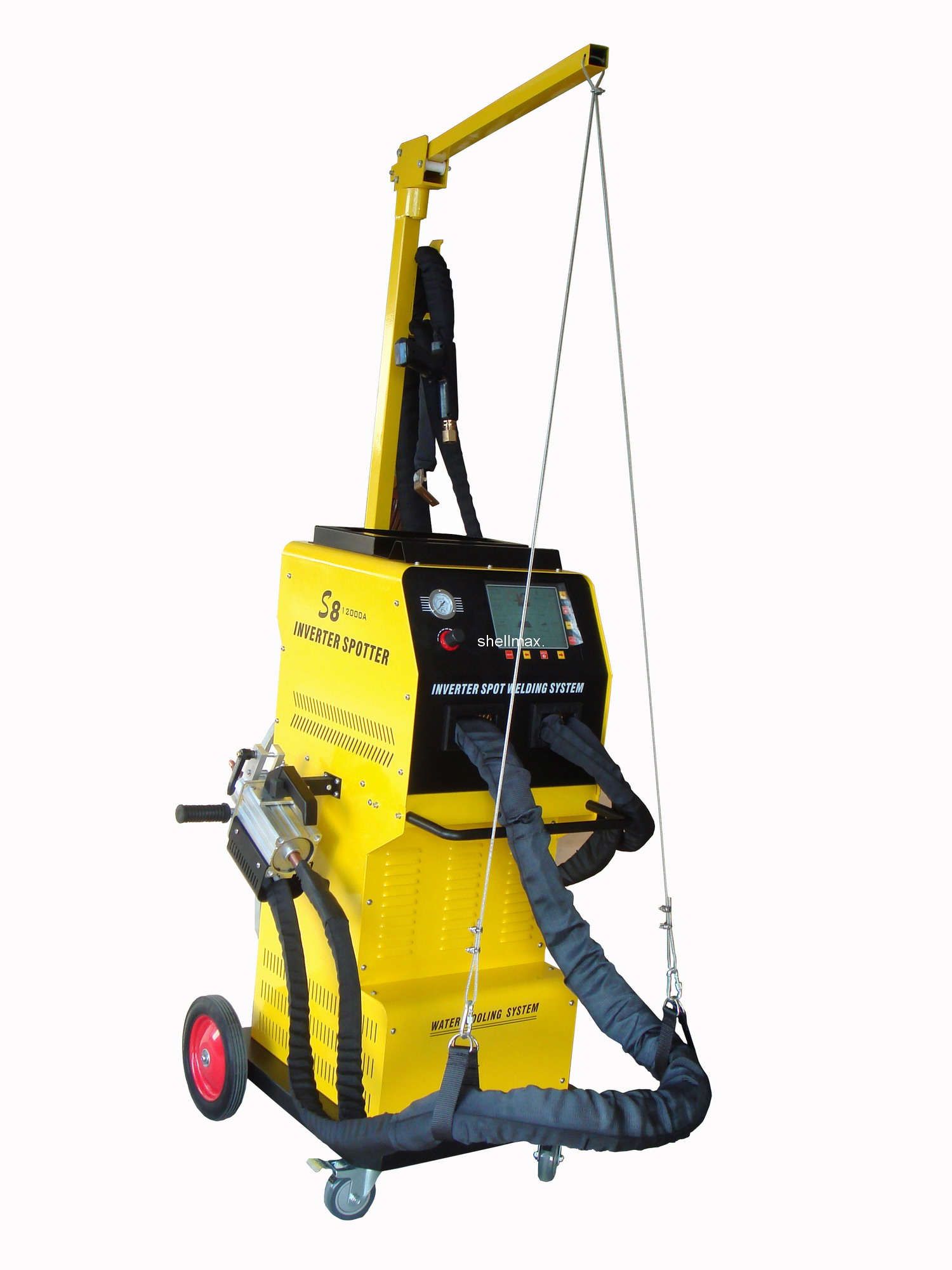

INVERTER SPOT WELDING SYSTEM S8-2
MODEL: S8-2
Spot Welding Gun: Single Sided Gun, C- Gun
Welding Pulse: Single Pulse, Double welded, Pulse welding
Display system: 8"LCD Display
Protection and Testing functions: Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections
Cooling System: Cable Fan cooling, Water cooled C-gun
Input Voltage(50/60Hz): 380-415V/3pH or 208-240V/3pH
No-load Voltage(V): 4-21V
Max Welding Current(A): 12000A
Max Current(A): 13000A
Max Absorbed power(KW): 73KW
Rated Power X=50%(KW): 25KW
Power Factor(cosphi): 0.8
Max Welding Thickness(mm): 4+4 or 2+2+2
Max electrodes power 8bar(daN): X-Gun 345; C-Gun 350(600Lb)
Duty Cycle: 5%
Insulation class: H
Protection degree: IP22
Diamension(mm): 800*730*1260
Net Weight (kg): 170
20GP container (set): 12
40GP Container (set): 24
Bilingual
Double pistons cylinder
Ideal for car-body works and serial productions
Customisation of any stored spot welding programs
Operation with pneumatic clamp, manual and studder welding.
Senses the voltage and auto-compensates for the power source.
Control and regulation of all the steps of the spot welding process
Microprocessor controlled, three-phases, inverter (MFDC 2000 Hz) resistance welding.
Automatic control of the spot welding current (12.000 A) continuous and pulse operation
High efficiency and productivity improved in comparison with the traditional resistance welding systems
Over 200 pre-set programs according to the kind and thickness of the material used and to the kind of clamp chosen.
High quality and aesthetic of the spot on all kinds of high resistance steels, HSS, AHSS, galvanized steels and stainless steels
Standard equipment: Water cooled clamp and air cooled cables, built-in water cooling system, arm and balancer to hold the clamp
Control Panel: Use a large 5x7" monitor to display images and clip art and software is stored on an upgradeable CPU by internet.
| IGBT Inverter spot welder |
| MODEL | S5-2 | S5-3 | S6-2 | S6-3 | S8-2 | S8-3 | S9 | S10 | S11 |
| Spot Welding Gun | Single Sided Gun, C- Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C- Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun |
| Display system | LED Display | LED Display | LED Display | LED Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display |
Protection
and Testing
functions | Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections | Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections | Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections, cooling fluid monitoring | Memory card& Automitic adjusting the pressure functions, Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections, cooling fluid monitoring |
| Cooling System | Fan Cooling | Cable Fan cooling, Water cooled C-gun | Water cooling Cables/C-gun/x-gun/Arm sets/Radiator/Transformer |
| Welding Pulse | Single Pulse, Double welded, Pulse welding | Single Pulse, Double welded, Pulse welding, No Spark welding |
| Input Voltage(50/60Hz) | 380-415V/3ph or 208-240V/3ph |
| No-load Voltage(V) | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V |
| Max Welding Current(A) | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 13000 | 13000 |
| Max Current(A) | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 | 14000 | 14000 |
Max Absorbed power
(KW) | 73 | 73 | 73 | 73 | 73 | 73 | 73 | 75 | 75 |
| Rated Power X=50%(KW) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | 26 |
| Power Factor(cosphi) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max Welding Thickness(mm) | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 |
| Max electrodes power 8bar(daN) | X-Gun 345 ; C-Gun 350(600Lb) |
| Duty Cycle | 5% | 5% | 5% | 5% | 5% | 5% | 5% | 8% | 8% |
| Insulation class | H | H | H | H | H | H | H | H | H |
| Protection degree | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 |
| Diamension(mm) | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 |
| Net Weight (kg) | 160 | 160 | 185 | 185 | 170 | 170 | 185 | 190 | 190 |
| 20GP container (set) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 40GP Container (set) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
