Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd. >> Hydraulic Traversing Mechanism Test Bench

Hydraulic Traversing Mechanism Test Bench

Hydraulic Traversing Mechanism Test Bench
Price: US $ 3000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: QFY-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 380V 50Hz
Motor Power: 7.5kw
Name: Hydraulic Traversing Mechanism Test Bench
Certification: ISO
Update Method: by Hard Disk

Product Description

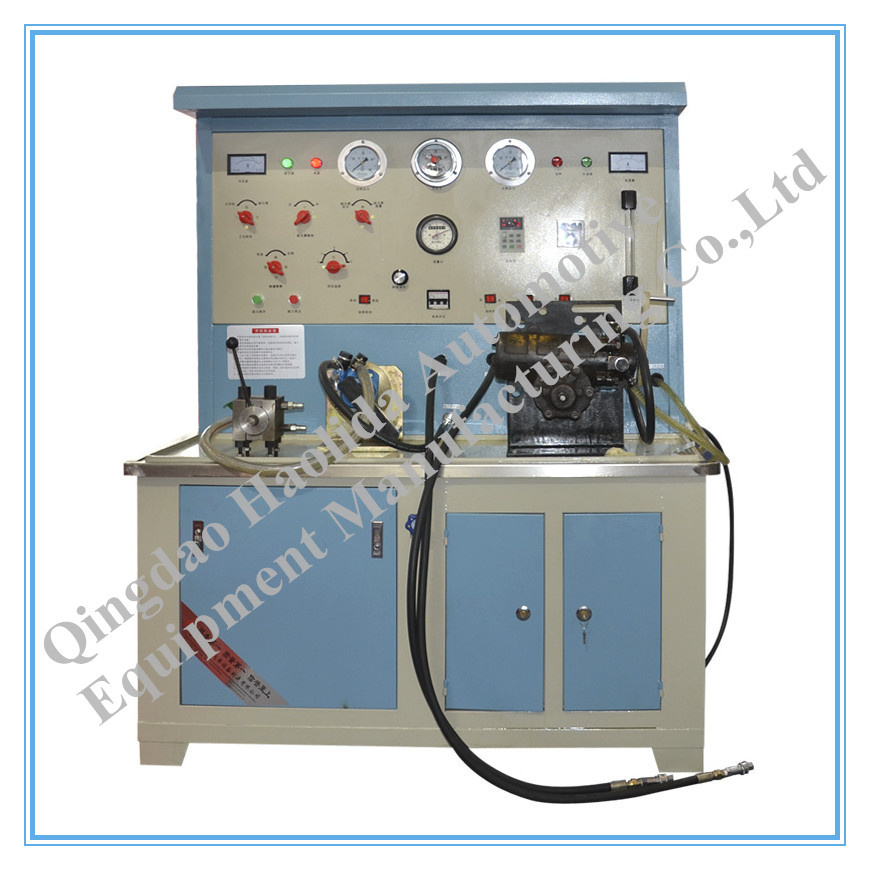

                      QFY-3 Model Hydraulic Traversing Mechanism Test Bench
General introduction:
This steering gear and power steering pump test bench is used for testing steering wheels and power pumps of various models trucks in steering system.

Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instruments.
3.It uses temperature control oil tank, can pre-set the oil temperature.
4.It adopts high-precision pressure regulator valve and driver.
5.It is with indicator lamp following each step and warn you the problems.
6.It is easy to learn and operate.
7.The valves matched with the steering gear valves can be made as customers' requests,  quick test no need to assemble totally.


Test items:
1.Pressure of power steering pump, can preset the rated pressure, automatic unloading
2.Oil  flow of power steering pump
3.Revolving speed of power steering pump
4.Input and output leakage of steering gear
5.Free stroke of steering gear
6.Working angle of steering gear
7.Performance of conversion valve assembly of steering gear

Technical parameter:

Model no
QFY-3
LanguageEnglish, etc
MaterialMetal plate
PaintingPowder painting, durable and beautiful
ColorBlue
Voltage380V 50Hz
Motor power7.5KW
Frequency converter power7.5KW
Speed0-2400rpm(frequency regulation)
DirectionClockwise, anti-clockwise
Power of heater1000W  220V
Rated heating temperature40ºC(adjustable)
Working pressure range of power pump0-18Mpa (adjustable)
Accessories:
Accessory wires, etc.
Others you may want to know:
MOQ1set
Warranty period12 months
Payment termT/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time35 days after receiving downpayment
HS code90312000.90
Packing sizes1560*1050*1870mm=3.06CBM


Why Choose us:
1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests

Company Introduction:
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.
Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.

We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
