Hydraulic Scissor Private Garage Used Parking Elevator

Hydraulic Scissor Private Garage Used Parking Elevator

Specification:
1) Load capacity: 3000kgs (customized)
2) Platform size: 5.5m x 2.5m (customized)
3) Lift height: 4m (customized)
4) Power: 380v/50hz/3ph/5.5kw (customized)
5) Control system: 1 control box, 1 control panel
6) Control buttons up, down, stop, emergency
7) Safety device: explosion-proof lock valve
8) Standard: CE, ISO9001

Main Specification:

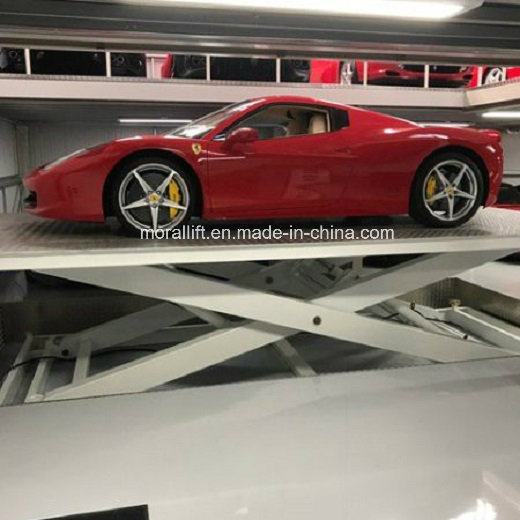

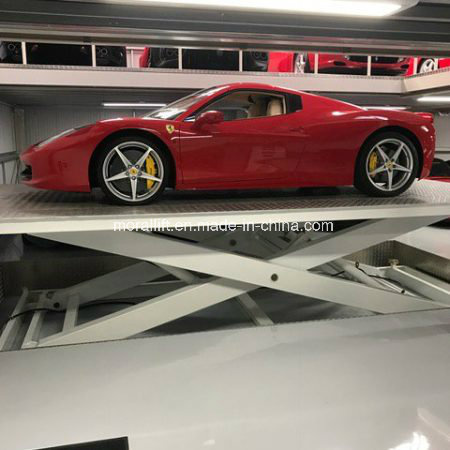

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3) The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5) Control system adopt elevator control system, very convenient and safety.
6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

Parameters:


Model	SJG3-4
Lifting capacity	3000kg
Lifting height	4000mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V  50HZ/60HZ
Speed	6m/min
Weight	2050KG

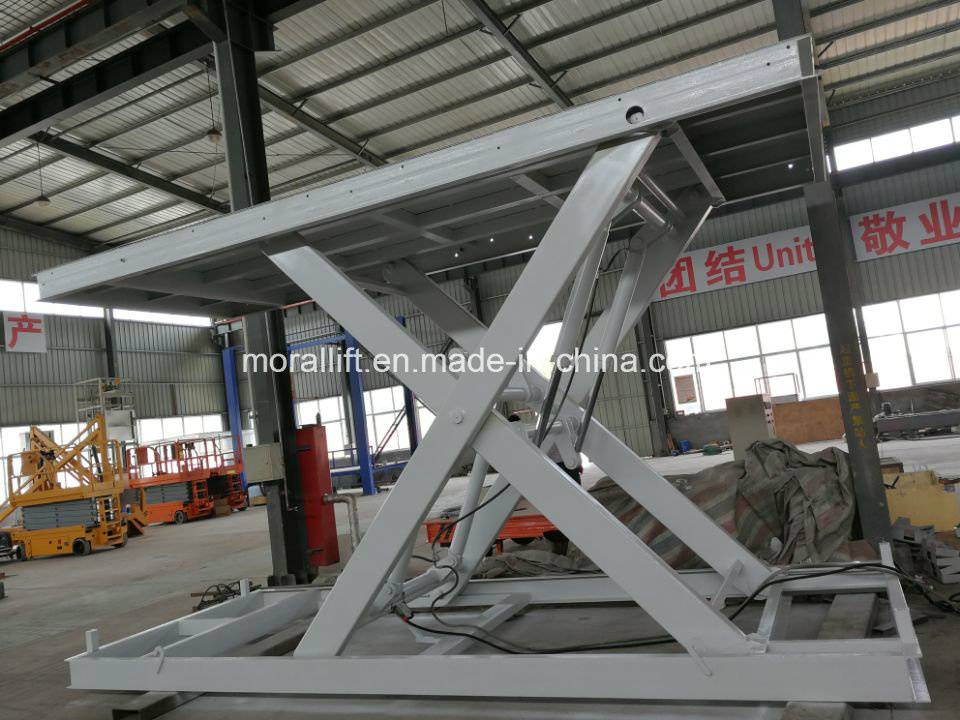

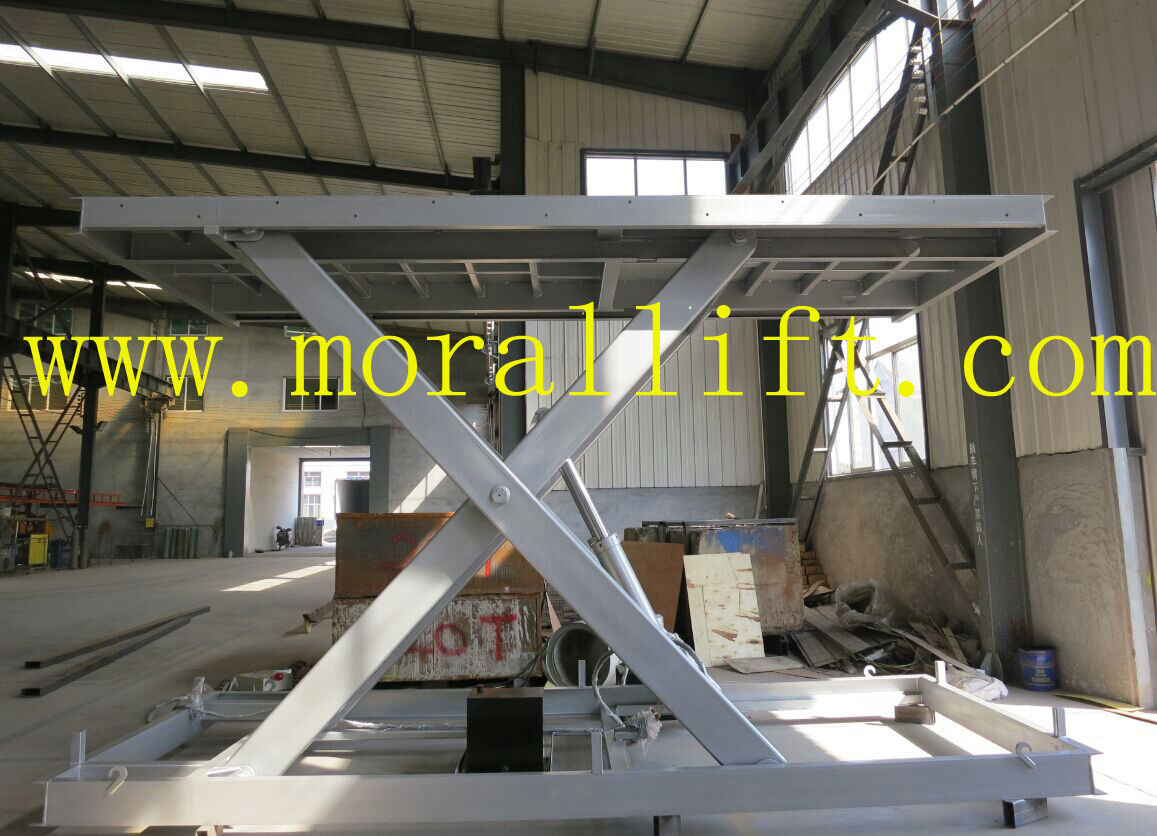

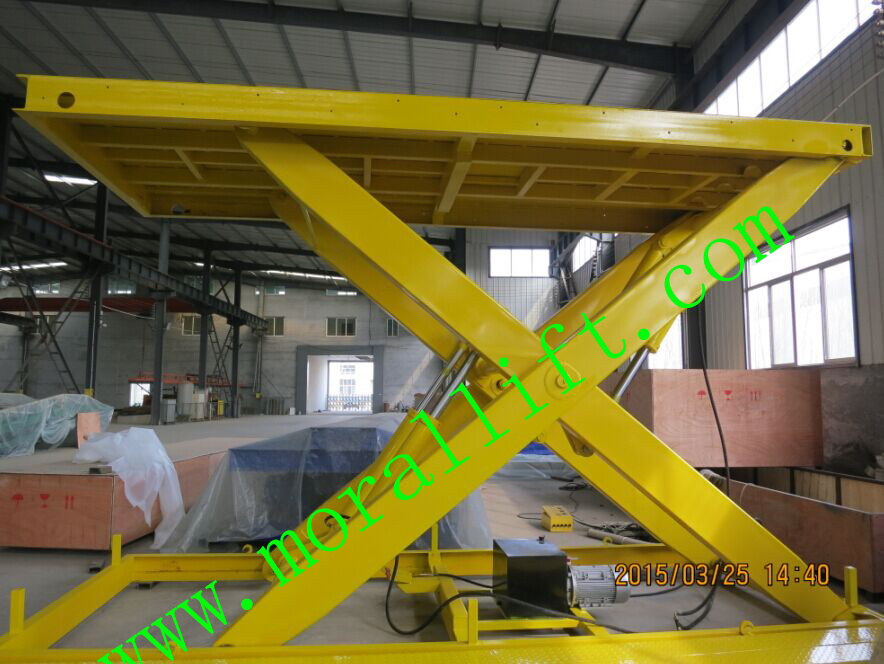

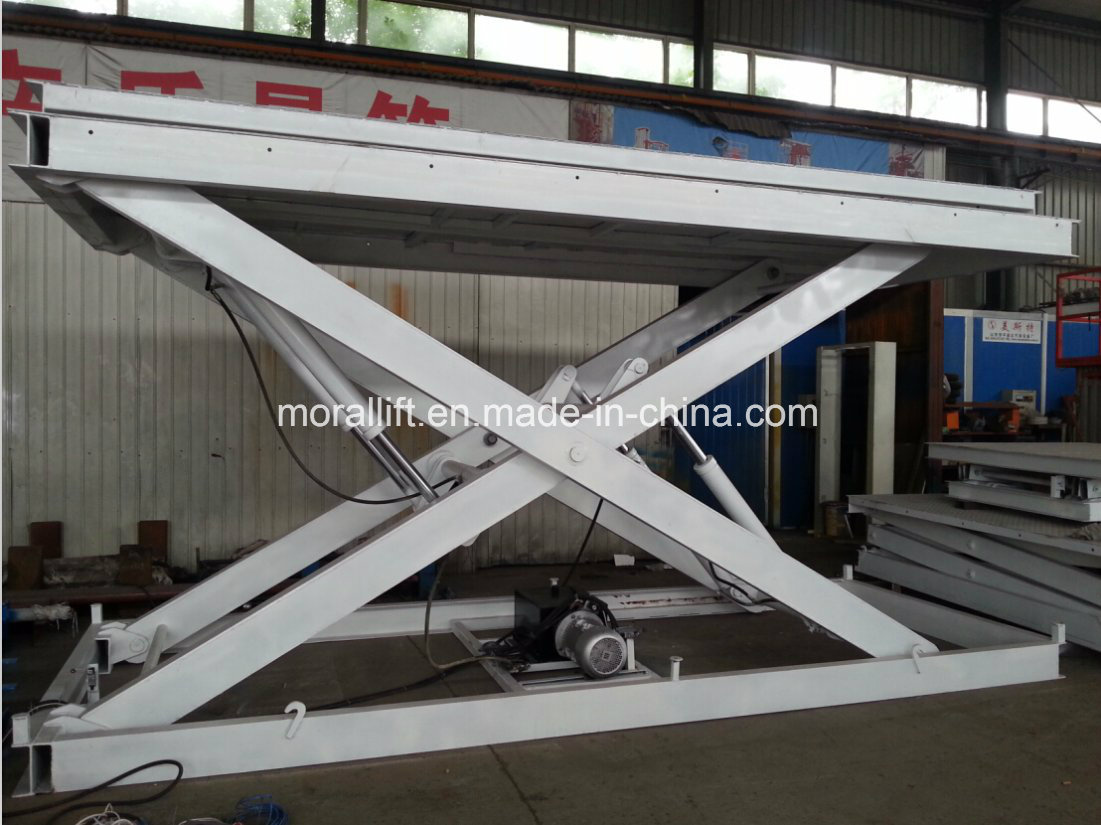

Pictures:
