Product Description

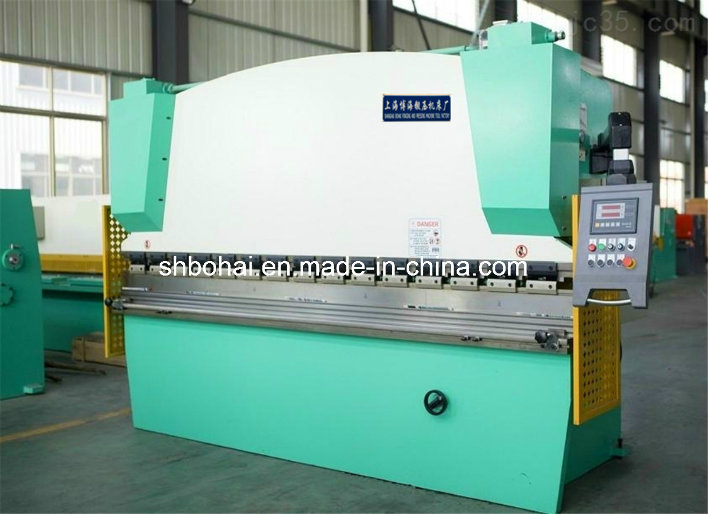

MODEL:Hydraulic press brake WD67Y 100T/3200 made in China
Introduction

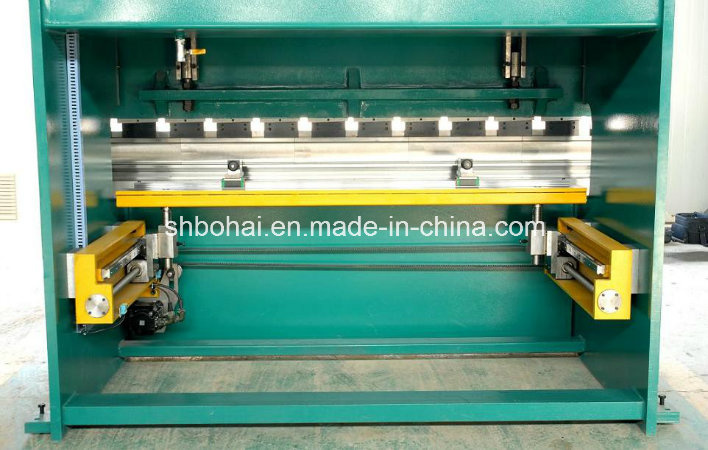

All Models are servo-proportional driven machines with micro-electronics ensuring perfect control of the bending process.The position, speed and pressing force of the Ram are controlled in a closed circuit at every point in the work cycle. The position of the Ram is controlled by two digital high precision linear scales. These linear scales are mounted on a independent C-frame on both side of the machine to prevent deformation of the Press Frame for accurate bending depth or bending angle.
Main Components List
No. | Item | QTY | Remarks |
1 | CNC Controller | 1set | NC-89/T10 |
2 | Servo Motor and Drive | 1set | Pansonic(Japan) |
3 | Main Motor | 1Unit | ABB motor(Switzland) |
4 | Hydraulics | 1set | BOSCH(Germany) |
5 | Ball Screw | 2 pcs | HIWIN, Taiwan |
6 | Linear Way | 2 pcs | HIWIN, Taiwan |
7 | Hydraulic Fittings | 1set | PARKER,USA |
8 | Hydraulic Seals | 1set | Japan VALQUA |
9 | Linear Scale | 2 pcs | Heidenhain,Germany |
10 | Electric Components | 1set | Omron,Shneider |
Technical Data
| | Model | Normal
force | Worktable
length | Distance
Between
Housing | Throat
Depth | Ram
Stroke | Max.Open
Height | Motor
Power | Dimension
(L x W x H) |
| | | KN | MM | MM | MM | MM | MM | Kw | MM |
| | 30T/1600 | 300 | 1600 | 1300 | 220 | 80 | 220 | 3 | 1600*940*1700 |
| | 35T/2050 | 350 | 2050 | 1600 | 220 | 100 | 250 | 4 | 2050*1050*1850 |
| | 40T/2200 | 400 | 2200 | 1850 | 200 | 100 | 340 | 5.5 | 2260*1250*2060 |
| | 40T/2500 | 400 | 2500 | 2000 | 200 | 100 | 340 | 5.5 | 2560*1250*2060 |
| | 63T/2500 | 630 | 2500 | 2000 | 250 | 125 | 370 | 5.5 | 2560*1280*2260 |
| | 63T/3200 | 630 | 3200 | 2560 | 250 | 125 | 370 | 5.5 | 3260*1280*2420 |
| | 80T/2500 | 800 | 2500 | 2000 | 320 | 140 | 390 | 7.5 | 2560*1500*2400 |
| | 80T/3200 | 800 | 3200 | 2560 | 320 | 140 | 390 | 7.5 | 3260*1500*2400 |
| | 80T/4000 | 800 | 4000 | 2960 | 320 | 140 | 390 | 7.5 | 4060*1500*2400 |
| | 100T/2500 | 1000 | 2500 | 2000 | 320 | 140 | 390 | 7.5 | 2560*150*2450 |
| | 100T/3200 | 1000 | 3200 | 2560 | 320 | 140 | 390 | 7.5 | 3260*1500*2450 |
| | 100T/4000 | 1000 | 4000 | 2960 | 320 | 140 | 390 | 7.5 | 4060*1500*2450 |
| | 125T/3200 | 1250 | 3200 | 2560 | 320 | 125 | 380 | 7.5 | 3200*1500*2450 |
| | 125T/4000 | 1250 | 4000 | 2960 | 320 | 125 | 380 | 7.5 | 4000*1500*2450 |
| | 160T/3200 | 1600 | 3200 | 2550 | 320 | 200 | 450 | 11 | 3260*1500*2480 |
| | 160T/4000 | 1600 | 4000 | 2950 | 320 | 200 | 450 | 11 | 4080*1500*2480 |
| | 160T/5000 | 1600 | 5000 | 3950 | 320 | 200 | 450 | 11 | 5060*1500*2480 |
| | 200T/3200 | 2000 | 3200 | 2540 | 320 | 200 | 450 | 15 | 3200*1500*2480 |
| | 200T/4000 | 2000 | 4000 | 2940 | 320 | 200 | 450 | 15 | 4000*1500*2480 |
| | 200T/5000 | 2000 | 5000 | 3940 | 320 | 200 | 450 | 15 | 5000*1500*2480 |
| | 250T/4000 | 2500 | 4000 | 2920 | 400 | 250 | 530 | 18.5 | 4240*1600*3000 |
| | 250T/5000 | 2500 | 5000 | 3920 | 400 | 250 | 530 | 18.5 | 5240*1600*3000 |
| | 300T/4000 | 3000 | 4000 | 2920 | 400 | 250 | 530 | 18.5 | 4060*1600*3000 |
| | 300T/5000 | 3000 | 5000 | 3920 | 400 | 250 | 530 | 18.5 | 5000*1600*3000 |
| | 300T/6000 | 3000 | 6000 | 4920 | 400 | 250 | 530 | 18.5 | 6000*1600*3000 |
| | 400T/4000 | 4000 | 4000 | 2920 | 400 | 300 | 560 | 22 | 4000*2180*3800 |
| | 400T/5000 | 4000 | 5000 | 3920 | 400 | 300 | 560 | 22 | 5000*2180*3800 |
| | 400T/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 6060*2220*3980 |
| | 500T/6000 | 5000 | 6000 | 4600 | 500 | 320 | 700 | 30 | 6080*2760*4000 |
| | 800T/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 6100*3250*4300 |
Hydraulics
Closed loop control composed of electrohydraulic servo valve and Linear Scale imported from Gemany , with high feedback precision, accurate and stable operation, and high repeated positioning precision of slider block.Integrated hydraulic system with hydraulic elements and sealing parts from reputable manufacturers to reduce hydraulic tubes and ensure highly reliable and sage performance.
