Hydraulic Heavy Loading Vertical Scissor Car Lift

Hydraulic Heavy Loading Vertical Scissor Car Lift
Price: US $ 5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SJG3-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Optional
Material: Steel
Warranty: 12 Montha
Speed: 100mm/S
Safety: Limit Switch
Voltage: 5.5kw
Platform Size: 6540*2500mm/Customized
Installation: Need One Pit
Drive: Hydraulic
Lift Height: 3000mm
Type: One Cylinder Hydraulic Lift
Lifting Capacity: 4T
Certification: ISO
Design: Scissor
Brand: Moral

Product Description

Hydraulic Heavy Loading Vertical Scissor Car Lift


Main features:
1)used for lifting kinds of cars
2)great loading capacity
3)hydraulic system increase safety
4)steady working



Parameter:
1. Load weight: 3000kgs/customize
2. Table size: 5.5m X 2.5m/customize
3. Travel height: 5m/customize
4. Elevator controls system
5. Structure: High-strength Mn steel
ModelSJG3-3
Load capacity6390KG
Platform size6239*2500mm
Lifting height3000mm
Speed100mm/s
Power5.5kw
Power supplyAC 220V/380V 50Hz/60Hz
Weight2950KG

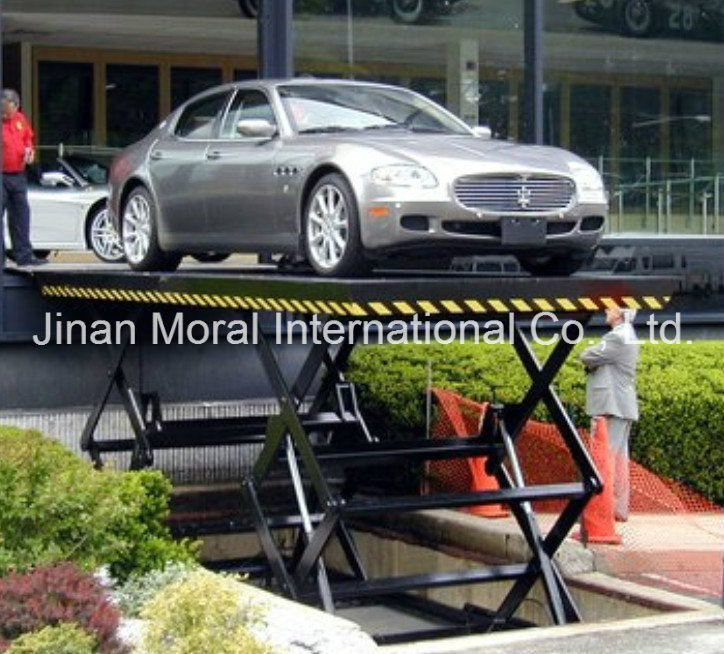

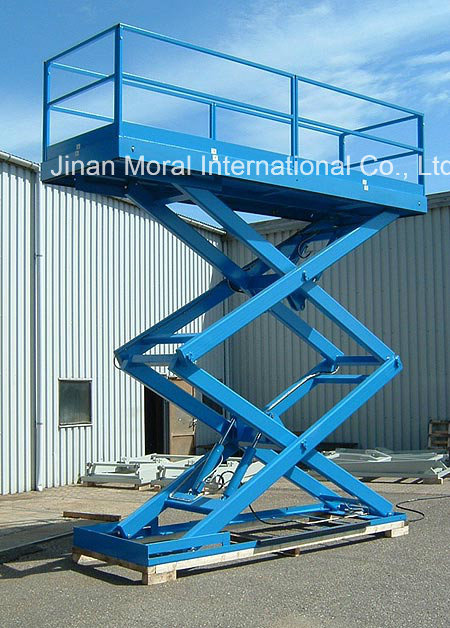

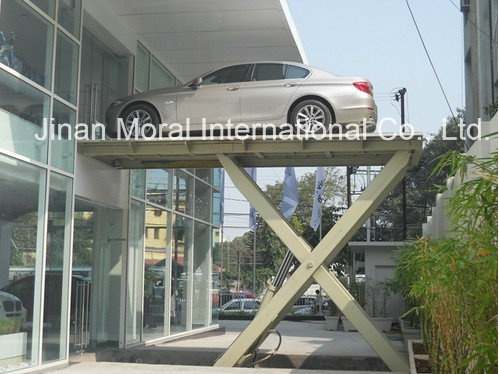

Photos:



Specifications and Safety:
1. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
