Hydraulic Cylinder Piston Rod Ck45 for Car Parking

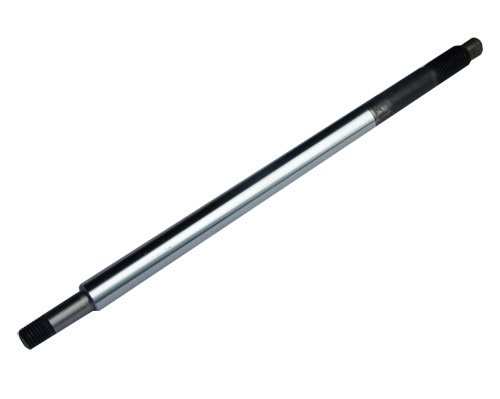

Name: Hydraulic Cylinder Piston Rod Ck45 for Car Parking
Brand: ibuyautoparts.com
SKU: 832295485
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 0.8-1/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Capacity for cnc machining:

CNC Turning	φ0.5 - φ300 * 750 mm	+/-0.005 mm
CNC Milling	510 * 1020 * 500 mm(max)	+/-0.01 mm
CNC Stamping	1000 * 1000 mm(max)	+/-0.05 mm
Drawing Format	IGS,STP,X_T ,DXF,DWG , Pro/E, PDF
Test Equipment	measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.

Material Available :
Chemical Composition

Material	C%	Mn%	Si%	S%	P%	V%	Ni	Cr%	Mo	Cu
CK45	0.42-0.50	0.50-0.80	0.17-0.37	≤0.035	≤0.035		≤0.25	≤0.25		≤0.25
ST52	≤0.22	≤1.6	≤0.55	≤0.04	≤0.04	0.02-0.15			≤1.6
20MnV6	0.17-0.24	1.30-1.70	0.10-0.50	≤0.035	0.035	0.10-0.20	≤0.30	≤0.30		≤0.30
42CrMo	0.38-0.45	0.5-0.8	0.17-0.37	≤0.035	≤0.035	0.07-0.12	≤0.03	0.90-1.20	0.15-0.25	≤0.03
40Cr	0.37-0.45	0.50-0.80	0.17-0.37	≤0.035	≤0.035		≤0.3	0.80-1.1		≤0.03
HY4700	0.38-0.45	1.20-1.60	0.30-0.50	≤0.035	≤0.020	0.051-0.15	≤0.25	0.10-0.20	≤0.15	0.25
HY4520	0.40-0.48	0.80-1.40	0.15-0.35	≤0.35	≤0.0.35	≤0.15	≤0.25	≤0.25	≤0.15	≤0.25

Chemical Properties

Material	Rm (MPa)	Rel(MPa)	A%	Charpy	Condition
CK45	610	355	15	>41J	Normalized
CK45	800	540	20	>41J	Q+T
ST52	500	355	22		Normalized
20MnV6	750	590	12	>40J	Normalized
42CrMo	980	850	14	>47J	Q+T
40Cr	1000	800	10		Q+T

Micro Alloy Steel

Material		Mechanical Property (Rolled)					HBW
Material		Rm (MPa)	Rel(MPa)	A%	Z%	KU2(J)	Untreated
HY4700	Φ35-Φ100	900-1100	≥650	≥16	≥35	≥39	270-340
HY4700	>Φ100-Φ140	850-950	≥600	≥16	≥35	≥39	270-340
HY4520	Φ40-Φ100	750-900	≥520	≥19	≥40	≥39	230-290
HY4520	>Φ100-Φ140	750-900	≥520	≥17	≥35	≥39	230-290

Surface treatment

Aluminum parts	Stainless Steel parts	Steel	Plastic
Clear Anodized	Polishing	Zinc plating	Painting
Color Anodized	Passivating	Oxide black	Chrome plating
Sandblast Anodized	Sandblasting	Nickel plating	polishing
Chemical Film	Laser engraving	Chrome plating	Sandblast
Brushing		Carburized	Laser engraving
Polishing		Heat treatment
Chroming		Powder Coated

Surface finish:

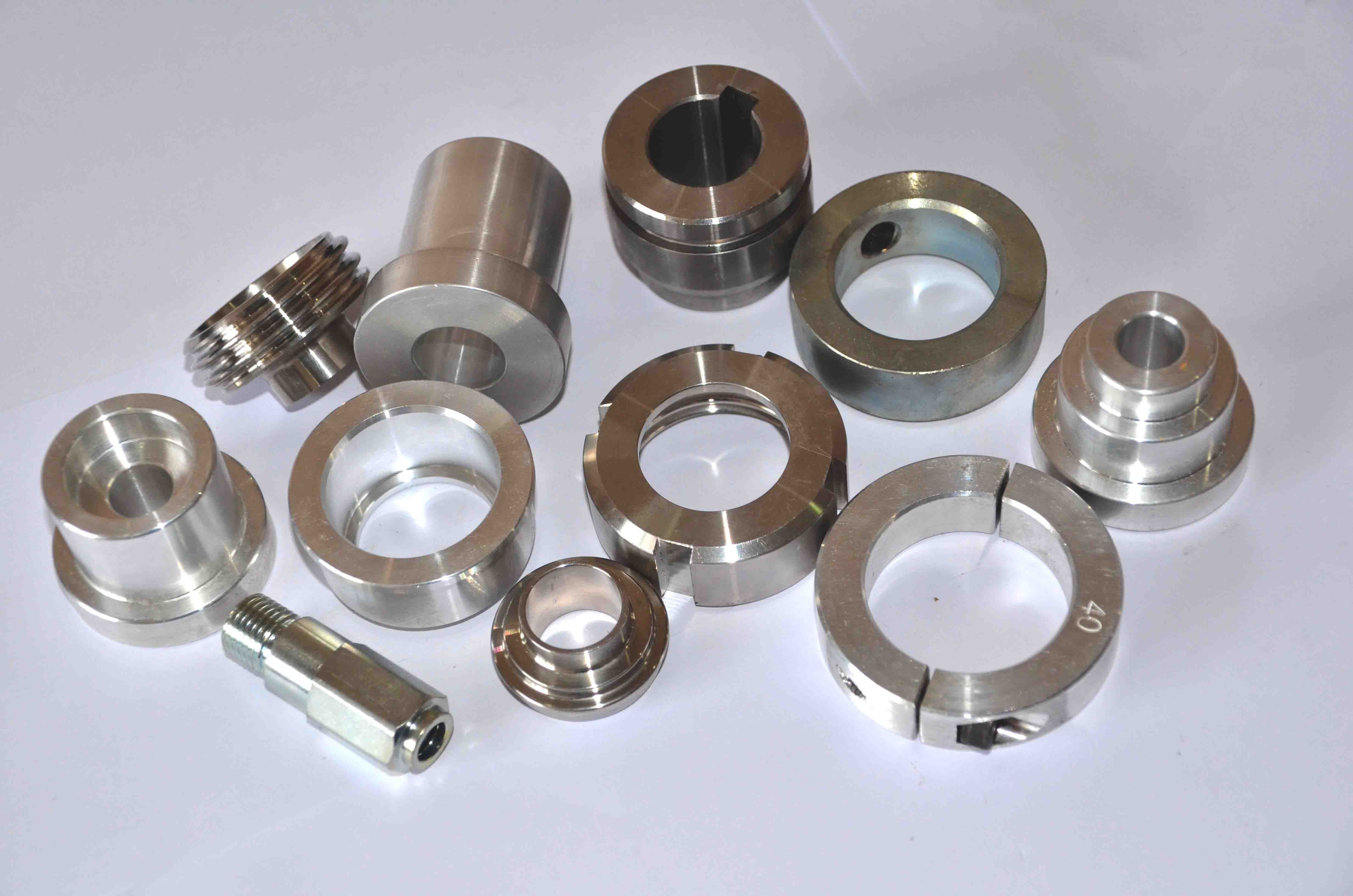

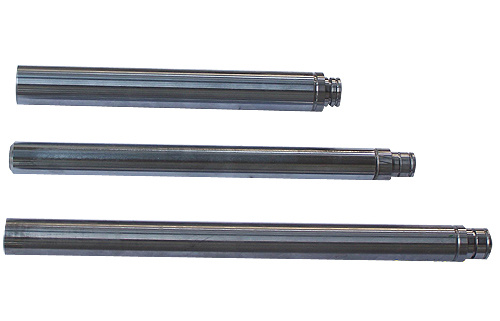

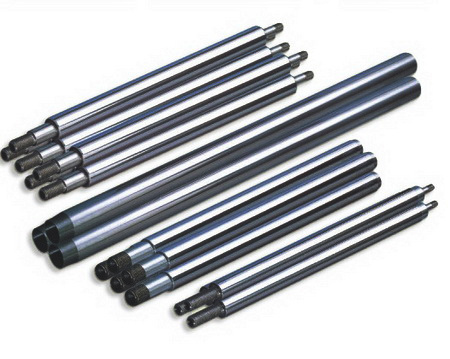

Products Show

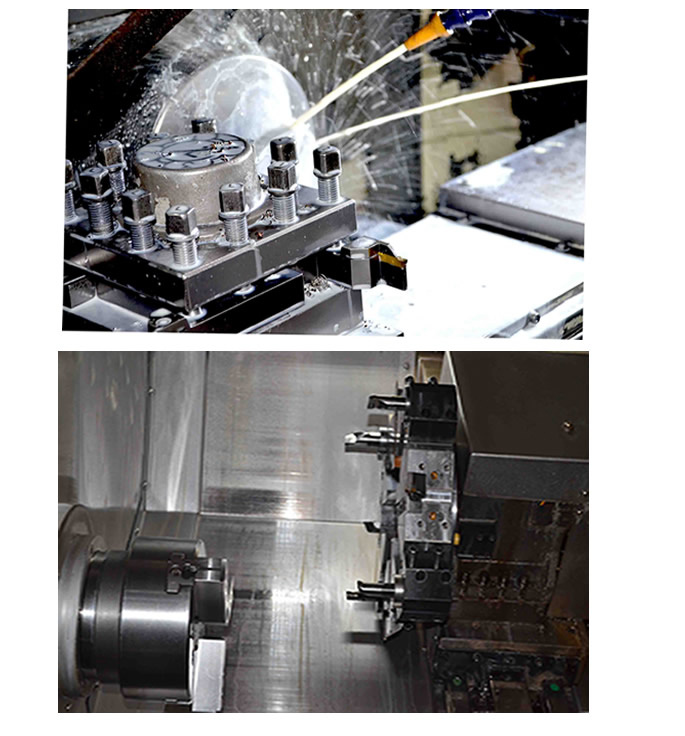

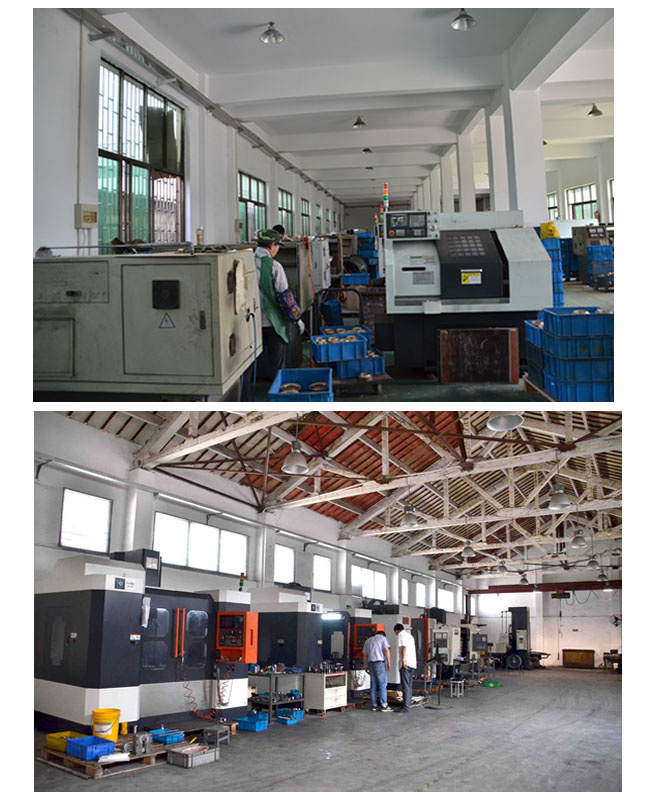

Production equipment

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 30%TT in advance. 70% T/T before shippment

Prod Model:	dia 20

YuChen power transmission are one of the leading manufactures for various transmission parts in China, Our sell products are sprocket, gear, timing belt pulley, V-belt pulley, transmission roller chain, conveyor chain, rack, turning parts, bearing and gearboxes. We have been in this line for more than 10 years.

Quality and delivery time are the key factors highly guaranteed by our long-term experience. By insisting on high start planning, high level investment and scientific management, we strictly carry out ISO9001 international quality system certificate and are scrupulous about each process detail, Our quantity products have been well accepted by vast customers.

All of our products are made in conformity with the international standard and custom drawing, and have been sold to various provinces, cities of China, and exported to USA, UK, Spain, Germany, Italy, Poland, Czech, Malaysia, Argentina and other regions and countries.

Success belong to the history, future depends on further development, YuChen our friends and customers supports, Yuchen had been grown up.
