Hydraulic Car Lift Elevator for Sale
Price: |
US $ 2000-6000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
3T 2.5M hydraulic car lift automat for sale Application:
This kind of electric car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor. Operation is easy, and the electric components are CE certified.
Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable lift for you soon.Parameter:1. load weight: 3000kgs
2. table size: 5.85m x 2.6m
3. travel height: 2.5m
4. structure: high-strength Mn steel
5. power: 380v / or 220v / or 240v / or 400v The frequent models we supplied for our clients:MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The electric car lift can be customized as your detailed size. |
CE, TUV, SGS certificate

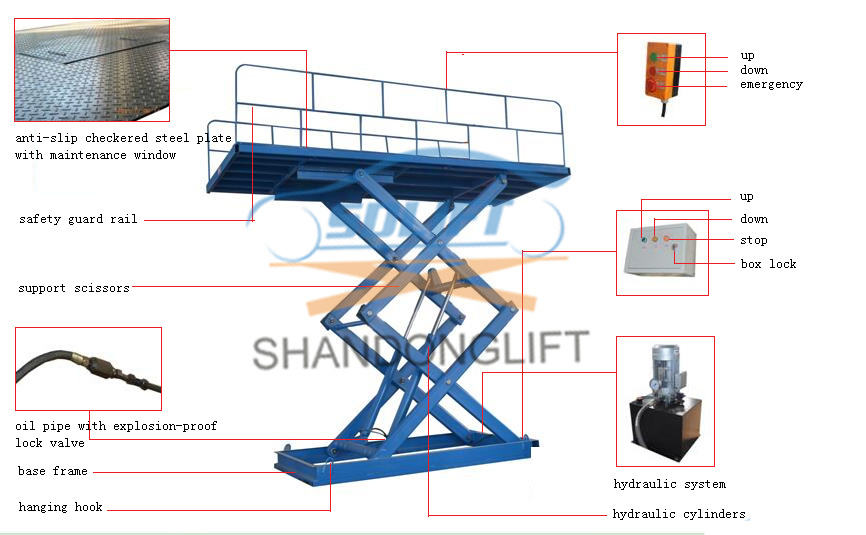

Safety: 1. Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2. The limit switch system helps the electric car lift to stop at accurate position.
3. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
4. All the electric car lift are passed 1.2 times loading test before leaving factory
5. Guarantee: 24 months, we supply spare parts free and supply technical supporting all the time.Contact us:
Prod Model: |
SJG3-5 |
Power: |
4.0kw |
Install: |
Underground |
Type Of Products: |
Hydraulic Scissor Car Lift |
Color: |
Optional |
Motor: |
Customer Required Brand or Chinese Famous Brand |
Safety Device: |
Explosion Proof Lock Valve, Emergency |
Lifting Height: |
5000mm |
Lift Wide: |
2600mm |
Type: |
Double Cylinder Hydraulic Lift |
Lifting Capacity: |
3T |
Certification: |
GS |
Design: |
Scissor |
Brand: |
Sdlift |
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
