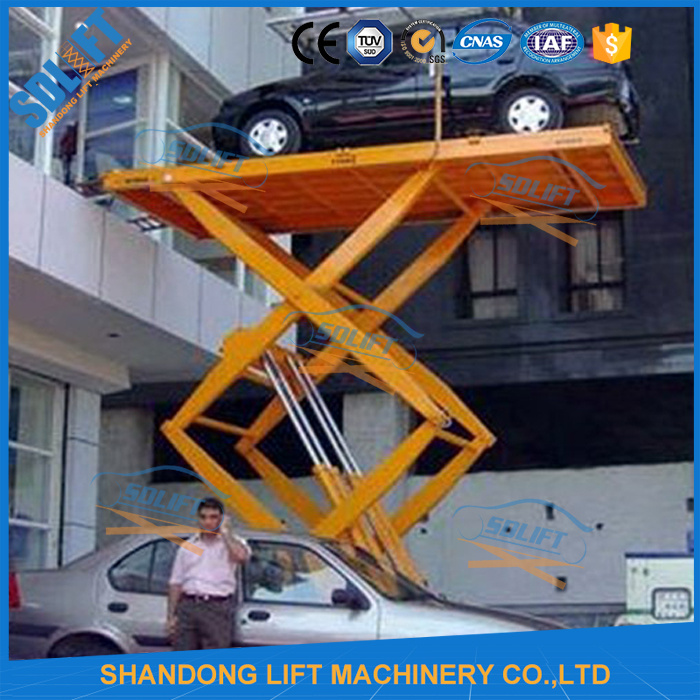

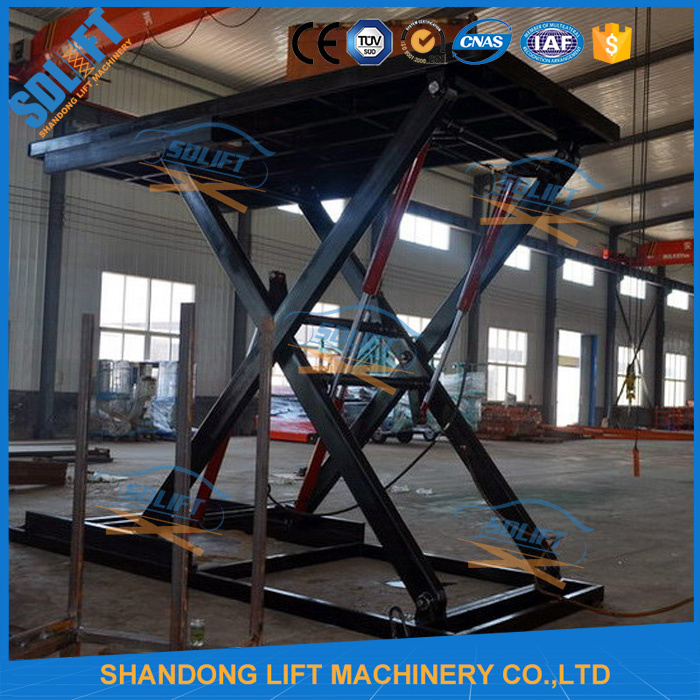

Hydraulic Car Elevator Parking Systems
| Price: |
US $ 5000-8000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SJG3-3.3 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Western Europe |
| Lift System: |
Hydraulic System |
| Safety Rail: |
2 Side |
| Power: |
4.0kw |
| Safety Device: |
Explosion-Proof Lock Valve |
| Motor: |
Customer Required Brand or Chinese Famous Brand |
| Package: |
Iron Case or Plywood Case Package |
| Stationary Hydraulic Scissor Lift: |
Scissor Lift Table |
| Voltage: |
110V 220V 240V 380V Optional |
| Keywords: |
Vertical Lift Platform |
| Application: |
Vertical Lift Platform |
| Type: |
One Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Sdlift |
Product Description
Car elevator parking systemsProduct parameters:Load weight: 3000kgs
Table size: 5m x 2.5m
Travel height: 3.3m
Structure: high-strength Mn steel material
Control system: 1 control box, 1 control panel
Power: 380v / or 220v / or 240v / or 400v
Safety device: explosion-proof lock valve
Standard: CE, ISO9001
Safety:1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safe rails to guarantee safety of the car above platform
3) The limit switch system helps the car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic car lifts are passed 1.2 times loading test before leaving factory. Application:The hydraulic scissor car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor.
Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable hydraulic car lift for you soon.
The models we supplied for clients:| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
The car parking lift can be customized as your detailed size. |
