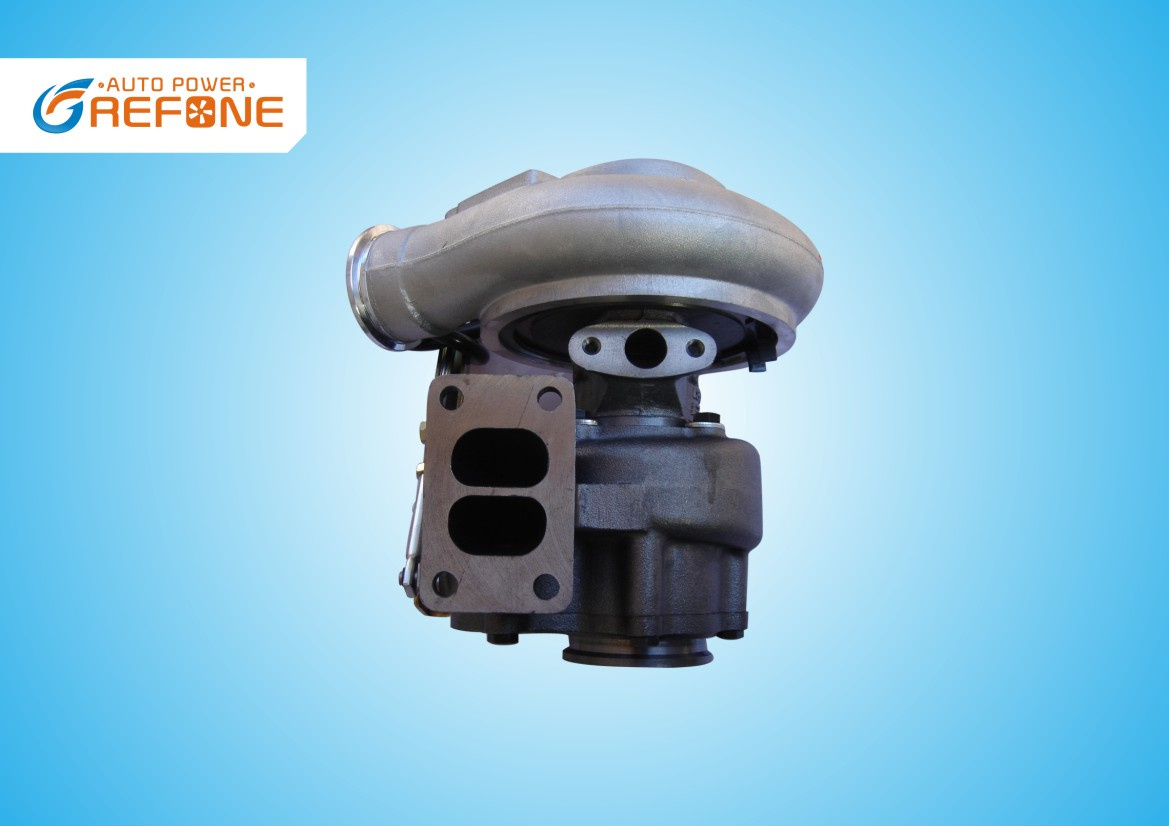

Hx35W 3597912 Holset Turbocharger for Cummins Various

Δ HX35W 3597912 turbocharger specs

Part Number	3597911
OE number	4090050
Year	2001-10
Manufacturer Part Number	3597912
CHRA	4027212 (3538421)
Turbo Model	HX35W-E7755M/E12PB11
Engine	6BT, 6BT Euro-2
KW	212
Fuel	Diesel
Angle α (compressor housing)	322
Angle β (turbine housing)	360
Bearing Housing	3532630
Turbine Wheel	3519336
Comp. Wheel	3599649
Back plate	3530923
Heat shield Number	3519302
Repair Kit	575169
Actuator	4030958
Gasket (oil outlet)	210060

Δ Application

2001-10 Cummins Various with 6BT Engine



Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support



Δ More cummins turbocharger models

Vehicle	Model	Part No.	OEM	Power	Match
Cummins	H1C	3522778	3522777/3802289	132kw/180ps	Cummins 6BT --5.9L
	H1C	3528237	3528238		Cummins 6BTAA--5.9L
	H1C	3522900	3802290	130ps	Cummins 4BT---3.9L
	H1E	3524034/4035234	3527370	240ps	Cummins 6CT---8.3L
	H1E	3528708	3528873	240PS	Cummins 6CTA---8.3L
	HX35W	3590808	3800464	235hp	Cummins 6BTA off highway
	HX35W	4050268	6BT	135ps	Cummins 6BT
	HX40W	3538856	4090213		Cummins 6CTA
	HX40W	4045212	4041406		Cummins 6CTAA
	HX40W	4050036	C300	220kw/300ps	Cummins C300
	HX40	4035234	6CT	211ps	Cummins 6CT
	HX30W	4040382	A3592318	180-260ps	Cummins 4BTAA
	HX55	3590044	3590045	300-450kw	Cummins M11-C 370PS
