Htac Cordierite Ceramic Honeycomb Substrate

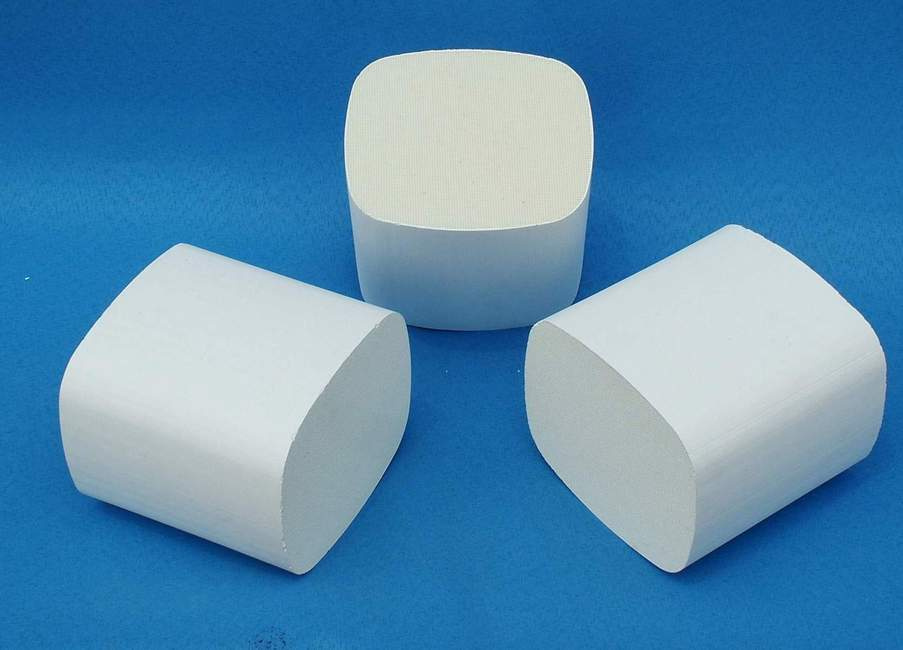

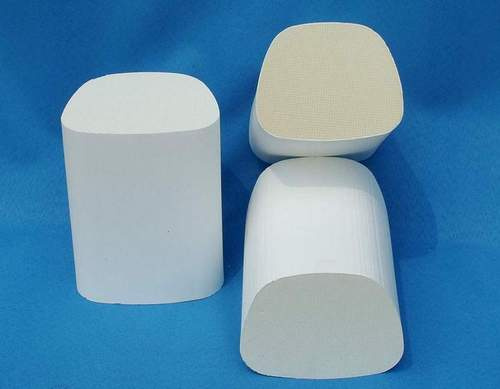

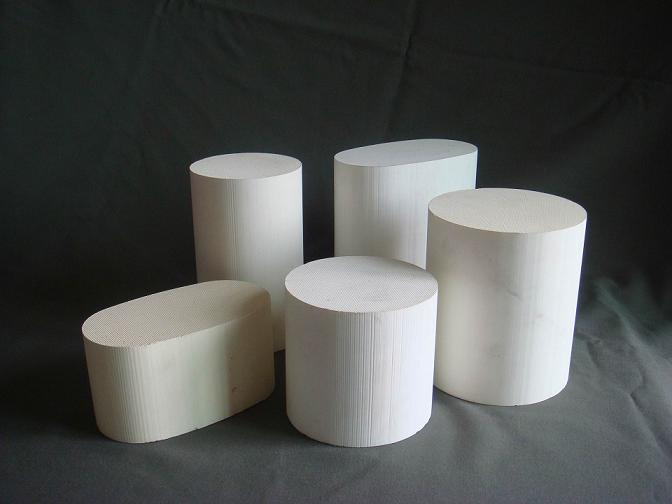

Name: Htac Cordierite Ceramic Honeycomb Substrate
Brand: ibuyautoparts.com
SKU: 685009472
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 15.5-16.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cordierite
Common Specification:	Diameter<120mm/Diameter<200mm,etc
Certification:	ISO9001
Component:	Catalytic Converter
Discharge Standard:	Euro IV
Body Material:	Ceramic

Product Description

Ceramic honeycomb (Porous Cordierite Honeycomb Monolith) used for RTO application
Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low
coefficient of thermal expansion and excellent resistance to thermal shock. Cordierite also offers
an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded
and dry-pressed forms.

Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered
plane, also applied in the industry waster gas and waste water processing etc

Specifications:
*Porous Cordierite Honeycomb
*Al2O3:31-34% ,
Material: Monolith, Cordierite
divided into two types:porous type and compact type

SiO2	Al2O3	MgO	Fe2O3	Na2O	K2O
48-51%	31-34%	14-16%	<0.5%	<0.5%	<0.5%

Index	Value
Cordierite gross density(g/cm3)	1.9-2.0
Average linear expansion(20-1000celsius degree) (10-6/k-1)	<2
Specific heat capacity(KJ/Kg)	830-900
Temperature cycle resistance(K)	300
Max operation Temp.(celsius degree)	1300
Thermal shock resistance(celsius degree)	800
Acid resistance(%)	>99
Alkali resistance(%)	>85

Spec.	Quantity of channels	Wall thickness (mm)	Surface area (m2/m3)	Free volume (%)	Average weight (min.) (kg/m3)
150150300	60*60	0.5	1315	70	680
150150300	50*50	0.7	1050	58	680
150150300	40*40	0.7	883	65	518
150150300	25*25	1.0	573	67	502
