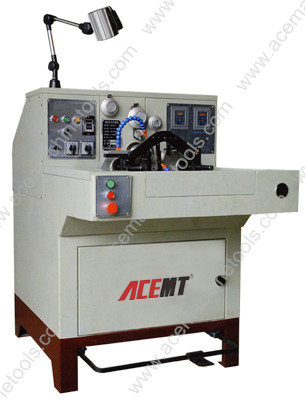

Horizontal Honing Machine (HM2000)

Name: Horizontal Honing Machine (HM2000)
Brand: ibuyautoparts.com
SKU: 773951845
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 1-6000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Features
-The installing and mingling is easy, the efficacy and precision can be ensured.
-The spindle the stroke have functions of changing speed in double frequencies braking and adjusting the rub patterns in mate easy.
-The numeral showing operate screen in board can change the related parameter quickly.
-Have functions of "designating", time and controlling.
-The double transmit tracks with high precision bearing in straight line sporting, keep the reliability and stability.
-Roundness: With 1um, size dispersion ratio: Within 5um

Parameters
Model	HM2000
Working	The diameter of the bore is Φ 3mm -Φ 100mm
Limits	The max length the bore is 200mm
The speed of spindle	250-2500r/min,changing stepless
The speed of motor power	1.5kw electrical machinery of changing frequency
The speed of stroke motor power	80-320 times/min changing stepless
The length of the stroke	0 -160mm
The stroke motor power	0.75kw
The total power	3kw
The size of appearance	1300×850× 1300mm

Prod Model:	HM2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Limits:	The Max Length The Bore Is 200mm
The Speed Of Spindle:	250-2500r/Min,Changing Stepless
