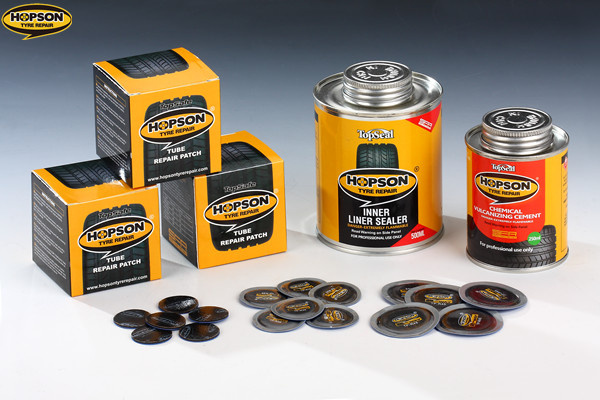

Hopson 25mm Round 2-Way Tube Repair Patch

1. Designed for repair of bicycle, motorcycle, car, truck, and tractor tubes
2. Twice as strong as the tube itself
3. Perfect bond and seamless repair


Part No.: TP-R25
Specification: Dia. 25mm, Round
Packing: 100pcs/box, 48box/CTN
MEAS: 26x26x20.5CM
N. W/G. W: 4.4/4.7KG

HOPSON 25mm tube repair patches are some of the finest tyre patches made today. They are actually twice as strong as the tube itself ensuring every repair is permanent and safe.


INSTRUCTIONS

1. Inspect tire for repairability using tire manufacturer of HOPSON LAB guidelines. If repairable, mark injury with crayon and carefully remove injuring object.

2. Probe injury to determine exact size and direction, removing all debris. Injuries must be within repairable area and no larger than 6mm(1/4'') in diameter.

3. Apply vulcanizing cement to injury channel and fill with a vulcanizing insert. Cut insert flush with the innerliner.

4. Center patch over injury, outline for reference, clean using buffing solution and innerliner scraper. Mechanically buff area to a velvet texture, finally removing all buffing dust.

5. Apply vulcanizing cement allowing it to DRY THOROUGHLY. Apply repair patch, stitching it down completely, working from the center out.

6. Remount and inflate tire following all safety guidelines. Carefully inspect repair for leaked and tire for additional leaks or damage using tire manufacturer or HOPSON LAB guidelines. If all inspection criteria are met, the tire is ready to be put back into service.

NOTE: When you send us an inquiry, kindly pls include the following information if possible:
Part No.:
Qty:
It will help us reply to you efficiently. Thank you.

Part No.	Size(mm)	Description	Box Qty (pcs/box)	CTN Qty (box)
TP-R25	25	Round	100	48
TP-R35	35	Round	80	48
TP-R45	43	Round	40	48
TP-R60	57	Round	30	48
TP-R80	80	Round	20	48
TP-V30	30×40	Oval	50	48
TP-V40	40×65	Oval	30	48
