| Prod Model: |
MHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SS304, SS316 |
| Application: |
Gas Treatment/Purifier for Auto/Motorcycle |
| Size: |
28X100mm, 63.5X50mm, etc |
| Cell: |
100-600cpsi |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description

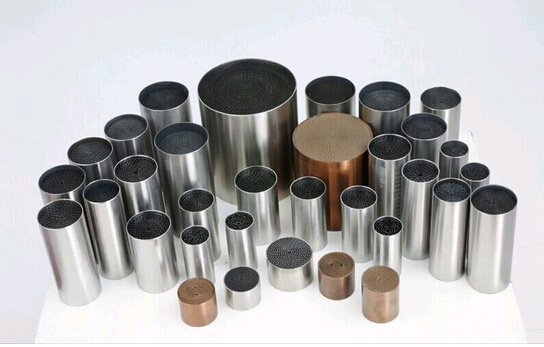

With the characters of thin cell wall, big specific surface area, high compressive strength, low pressure drop and low bulk density, metal honeycomb substrate can be used as catalyst carrier. This honeycomb metal catalyst carrier is made from the material of ss304, ss306, etc through the process of extrusion. Specification for honeycomb metal catalyst carrier is 100-400 pores or cells per square inch.
Honeycomb metal substrate usually carries noble metal catalyst, e. G. Platinum, rhodium, or palladium to clean waste gas in industries, e. G. It can be formed the catalytic converter to purify tail gas applied in automobile/motorcycle industry. When tail gas pass through catalytic converter, catalyst can enhance activities of CO, NOx and HC inside tail gas, converting them into CO2, H2O, N2, and O2 through selective oxidation-reduction reaction. Therefore, tail gas can be purified.
Applications:For light duty petrol vehicls exhaust purification, through the precious metals and earth catalyst, the exhaust HC, CO and NOx and other harmful components into harmful N2, CO2 and H2O so that emission of EuroII, EuroIII, EuroIV and EuroV.
Features:*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure
*Excellent quality and attractive price
| Specification (mm) | Radius (mm) | Height (mm) | CPSI |
| 28X60 | 26 | 50 | 100 |
| 28X100 | 26 | 90 | 100 |
| 35X30 | 33 | 20 | 100 |
| 35X40 | 33 | 30 | 100 |
| 35X50 | 33 | 40 | 100 |
| 35X60 | 33 | 50 | 100, 400 |
| 35X70 | 33 | 60 | 100, 200 |
| 35X100 | 33 | 90 | 100, 200, 400 |
| 42X100 | 40 | 90 | 100, 200, 400 |
| 43X75 | 41 | 65 | 100, 200, 300 |
| 43X100 | 41 | 90 | 100, 200, 300 |
| 45X60 | 43 | 50 | 100 |
| 53X60 | 51 | 50 | 100 |
| 63.5X50 | 60.5 | 40 | 100, 200, 400 |
| 63.5X70 | 60.5 | 60 | 200, 300, 400 |
