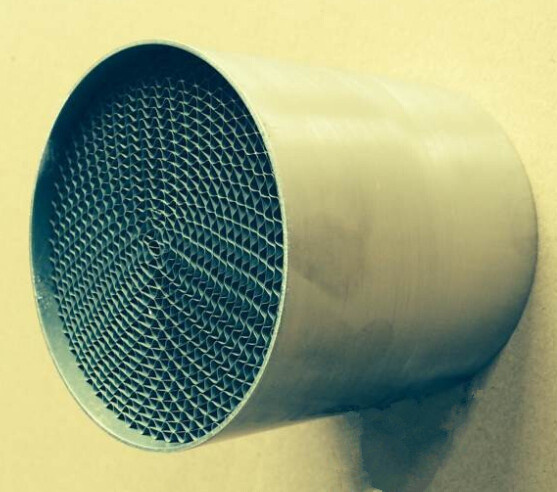

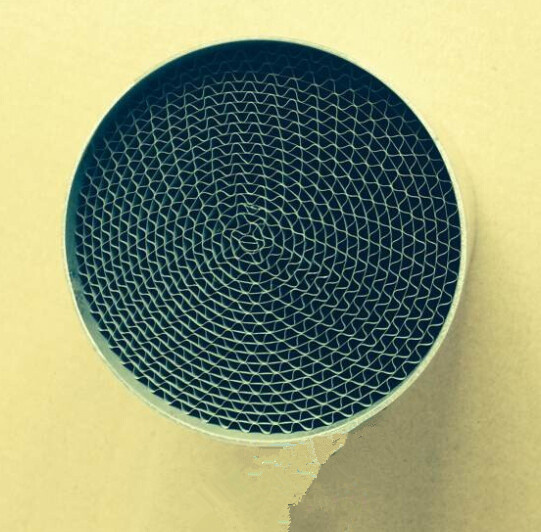

We are manufacturer of various catalytic converter for exhaust system. Main products: Metal honeycomb substrate catalyst and ceramic honeycomb substrate catalyst for automobile, motorcycle exhaust pipe substrate etc. The material of outside shell is SUS441 and 444. The foil material of inside is OCr21Al6, and the thickness is 0.1 mm. Compared to ceramic substrate, the metallic substrate has good heat conduction advantage. The honeycomb metal substrate for precious metal coating, our technology can make sure the low loss rate. It can be made of concentric round metal substrate, also can be made of duboule s metal substrate.
We mainly produce auto catalyst used for motorcycles, universal engine and so on. The catalyst is well known for low light-off temperature with long-term durability performance. It is mainly exported to Germany, Korea, Sweden etc. Our products meet the standards EuroII, EuroIII, EuroIV and EuroV emission standard approved.
Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application
High dispersion of noble metals:
*Low light -off temperature
*Excellent oxygen storage ability wide span of λ
*Good performance against high temperature
*Reduces emission of CO. HC NOx by up to 98%
*Can be provided in a standard or custom configuration
|
Mantle |
Matrix |
Brazing |
|
Ferritel (SUS444, SUS441, SUS430) |
Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) |
Nickel base alloy |
|
or Austenitic heat resistant stainless steel (SUS304) |
|
Thickness(mm) |
0.04-0.1 |
|
Width(mm) |
10-250 |
|
Main Chemical composition |
Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune |
|
Max Service temperature |
1250 ° C |
|
Thermal conductivity |
63.2 |
|
Resistivity at 20 ° C |
1.42 |
|
Density(g/cm3) |
7.16 |
|
Coefficient of line expansion |
14.7 |
|
Melting point(approx.) |
1500 |
|
Tensile strength |
630-780 |
|
Elongation at rupture |
>12 |
|
Variation of area |
65-75 |
|
Repeat bending frequency |
>5 |
|
Hardness |
200-260 |
|
Thickness(mm) |
0.04-0.1 |
|
Width(mm) |
10-250 |
|
Main Chemical composition |
Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest , Re:opportune |
|
Max Service temperature |
1250 ° C |
|
Thermal conductivity |
63.2 |
|
Resistivity at 20 ° C |
1.42 |
|
Density(g/cm3) |
7.16 |
|
Coefficient of line expansion |
14.7 |
|
Melting point(approx.) |
1500 |
|
Tensile strength |
630-780 |
|
Elongation at rupture |
>12 |
|
Variation of area |
65-75 |
|
Repeat bending frequency |
>5 |
|
Hardness |
200-260 |
