| Prod Model: |
MHS |
| Material: |
SS304, SS316, Fe-Cr-Al Alloy |
| Application: |
as Catalyst Used in Automobile/Motorcycle |
| Size: |
Diameter<120mm/Diameter<200mm, etc |
| Cell: |
100-600cpsi |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Coefficient Of Line Expansion: |
14.7 |
| Body Material: |
Alloy |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description

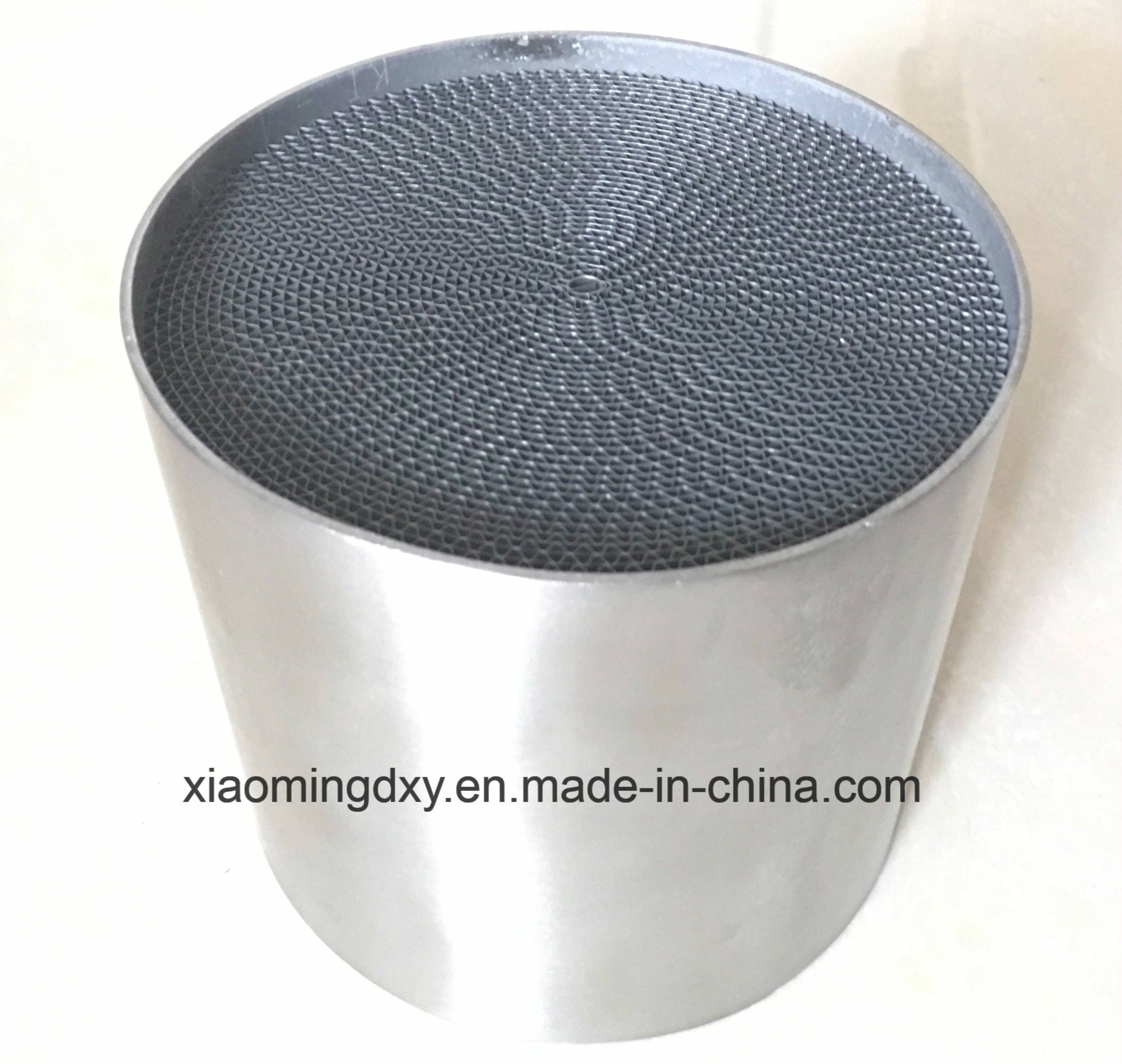

We mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system,
-- Precious Metal: Pt/Pd/Rh--German Heraeus / Johnson Matthey
Wall Material: Cordierite/ Stainless
Coating Material: Al2O3 and rare earth oxygen storage materials
-- Usage: for exhaust system of auto engine,like Honda, Suzuki, Toyato, etc.
And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.
-- Durability-- Ceramic catalyst:80,000 KM/ Metal catalyst: 100,000 KM
- Specification--Cylinder shape, "T" series(one hole)/ "S" series (Two holes)/ three-holes
-- Size: Dia 110mm~155mm, Hight:40mm~150mm, Cell: 100~600 cpsi.
like: Dia 110*110(Inner hight 80)mm/ 200 cpsi.
Dia 120*130(Inner hight120)mm/ 400 S
-- Can be used for Honda, BMW, Buick,,,,,,,

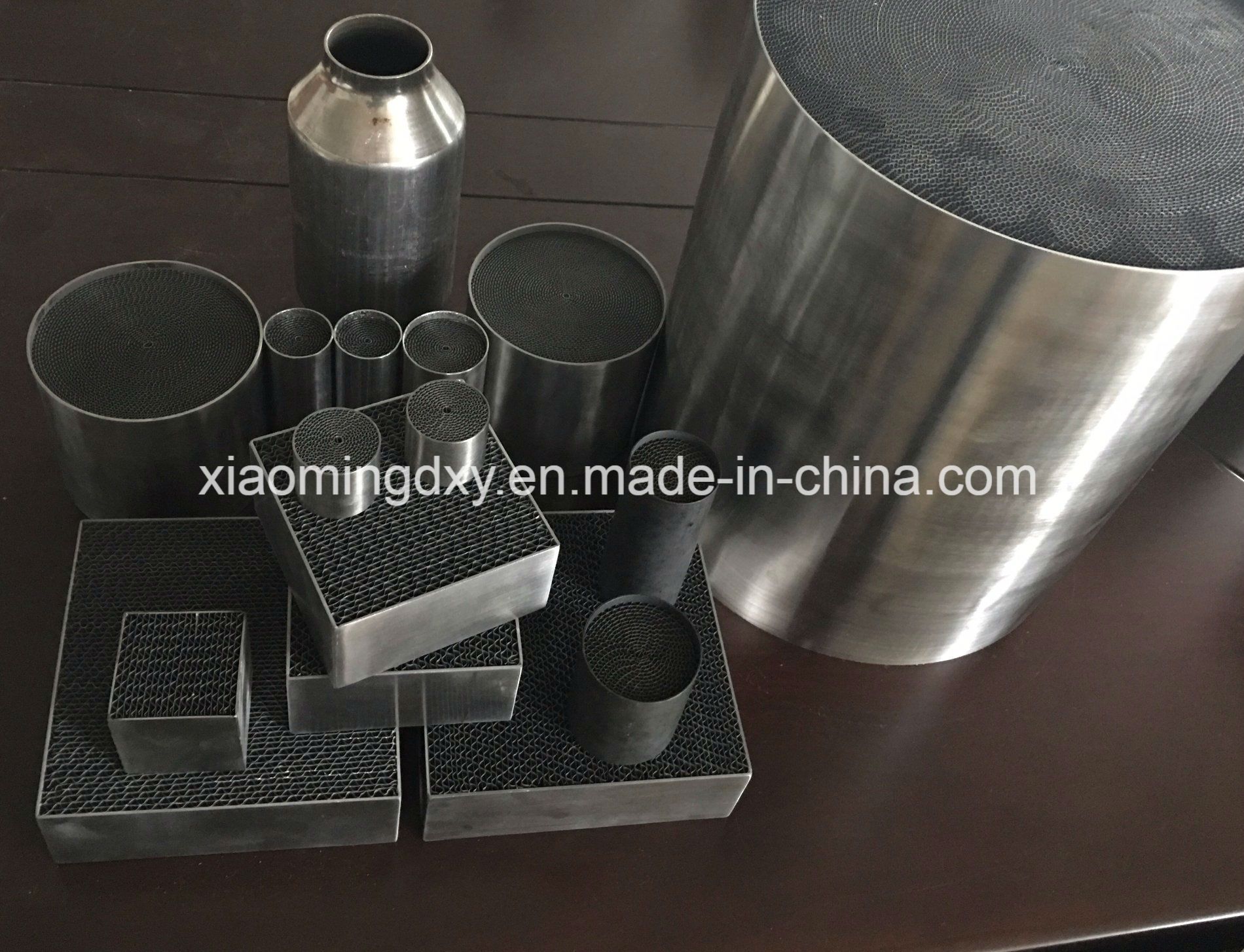

-- Above is part of our metal catalysts, more sizes and Spec. can be customized to your engine.
Advantages:
1. High temperature resistant
2. Can be specialized designed for the customers various vehicle type
3. Excellent and stable double-coating technology
4. Excellent resistance to sulfur poisoning properties
5. Meet the Standards European II ~ Europe V emission standard, EPA, CARB standard.
Application :

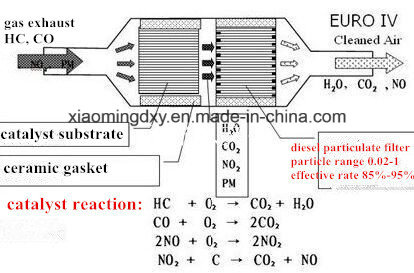

For light duty petrol vehicls exhaust purification ,through the precious metals and earth catalyst,the exhaust HC.CO.and NOx and other harmful components into harmful N2.CO2. and H2O. so that emission of State 3. 4 state standards.
| | Diameter (mm) | Hight(mm) | Inner Higtht ( mm) | Length (mm) | Width (mm) | Cell/ cpsi |
| | 110 | 110 | 80 | | | 200 |
| | 90 | 95 | 90 | | | 300S/400S |
| | 100 | 100 | 90 | | | 400S |
| Size | 120 | 130 | 120 | | | 400S |
| | 100 | 120 | 110 | | | 400 three holes |
| | 100 | 102 | 100 | | | 300 |
| | 110 | 150 | 105 | | | 600 three holes |
| | 155 | 75 | 75 | | | 400S |
| | | | | | | |
| | | 40 | 30 | 130 | 90 | 300/400 (two holes) |
| | | 102 | 92 | 150 | 88 | 400(two holes) |
| | | | | | | |
| Mark | Above is part of our metal catalysts, more sizes and Spec. can be customized to your engine |
| Our Certifications | SGS, ISO9001:2008, ISO14001, TUV, CARB |
