Honeycomb Ceramic Substrate Ceramic Catalyst Substrate Used in Gasoline Engine

Honeycomb Ceramic Substrate Ceramic Catalyst Substrate Used in Gasoline Engine
Price: US $ 25-186/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Honeycomb ceramic catalyst carrier for automobile
Introduction: Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic substrate body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a variety of unobstructed parallel channels sized to through gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.

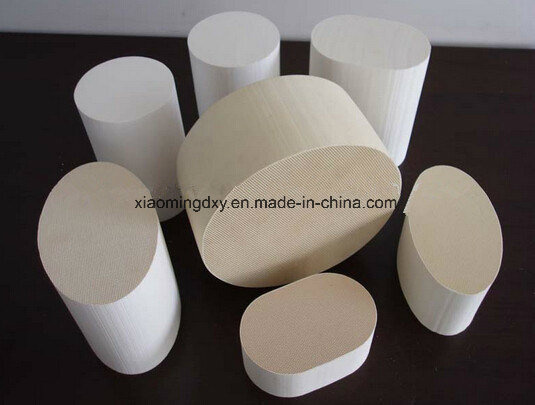

The ceramic substrate is made of cordierite, The cells density can be 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi. The usual cpsi (Cell Per Square Inch) for catalytic converter substrate is 400, the shape of ceramic substrate is round, racetrack, ellipse and other special shape according to the customer's requirement.

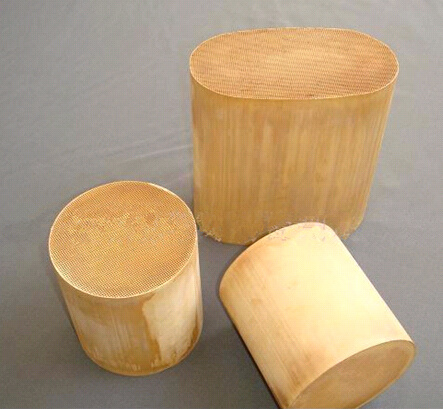

The ceramic substrate is made of cordierite, and it is used for car catalytic converter. The cells density can be 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi. The shape will be round, oval or racetrack. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.



Heat exchanger Honeycomb Ceramic application:
*NOx purification system in the smoke of the thermal power plant
*The harmful gas purification system in rubbish burning
*Poison gas purification system in chemical and mining industries. The slag filter for casting production in the metallurgical industry. The catalyst substrate. Stuffing material for chemical industry colums and Contact combustion.

Application
*As support of catalyst, ceramic honeycomb materials are typically used for purifying automotive emission, removing bad smell etc, for instance, utilized in exhaust catalytic converter, airfresher machine for hotel, restaurant, toilet and so on.
*Heat transfer agent: It can save 12% of energy in heat exchange, and it mainly utilized in heat recovery unit of RTO. Refractory stove: Low mass/volume, fast heat conduction. Gas burn distributing plate: Complete burn, energy saving is 10%.
*As filtrate substrate, they are generally utilized in food processing, environmental industry, metallurgical industry etc. For filtering particulate in industrial waste gas and bubble in liquid of molten melt and making the molten melt laminar so as to increase casting yields, also filtering impurities in juice, dextrose and sucrose etc.

Chemical composition
PropertyUnitValue
SiO2%48-51
Al2O3%31-34
Fe2O3%<1.0
MgO%12-14
K2O+Na2O%<1
Others%<1.0
Physical properties
PropertyUnitValue
Compressive StrengthA axis
MPA

≥10
B axis≥1.4
C axis≥0.2
Water adsorption°C≥17
Bulk Density g/cm3≤0.5
Softening temperature°C≥1360
Thermal Expansion °C-1(20-800°C)°C≤1.2×10-6
Thermal Shock Resistance--Not crack after 3 cycles (30 mins)

Channel densityShapeDimensin (mm)
400cells/square inch2RoundΦ150 x100
Φ144 x152.4
Φ118 x152.4
Φ115.4 x152.4
Φ106 x100.4
Φ103x100
Φ101.6x152.4
Φ100x100
Φ93 x152.4
Φ83 x152.4
Φ80x100
Φ76x50
Φ41x25
Racetrack shape(ellipse)Φ169 X 85.7 x115
Φ169 X 80.8x115
Φ148 X 84x152.4
Φ144.8 X 81.3 x152.4
Φ127 X 63.5x152.4
Φ93 X 61x90
Φ120 .6X 80 x152.4
Φ143 X 98x152.4
Φ147 X 95x152.4
Φ177.8 X114.3x170
Special shape144x84x75
114x105x115
120.2x108.2x75
112.2x92x115
119.5x99.5x115
122.3x104.4x80
Prod Model: CHS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Cordierite
Application: as Catalyst Used in Automobile/Motorcycle
Discharge Standard: Euro IV
Certification: ISO9001
Component: Catalytic Converter
Body Material: Ceramic
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.

Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.

We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.

With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
