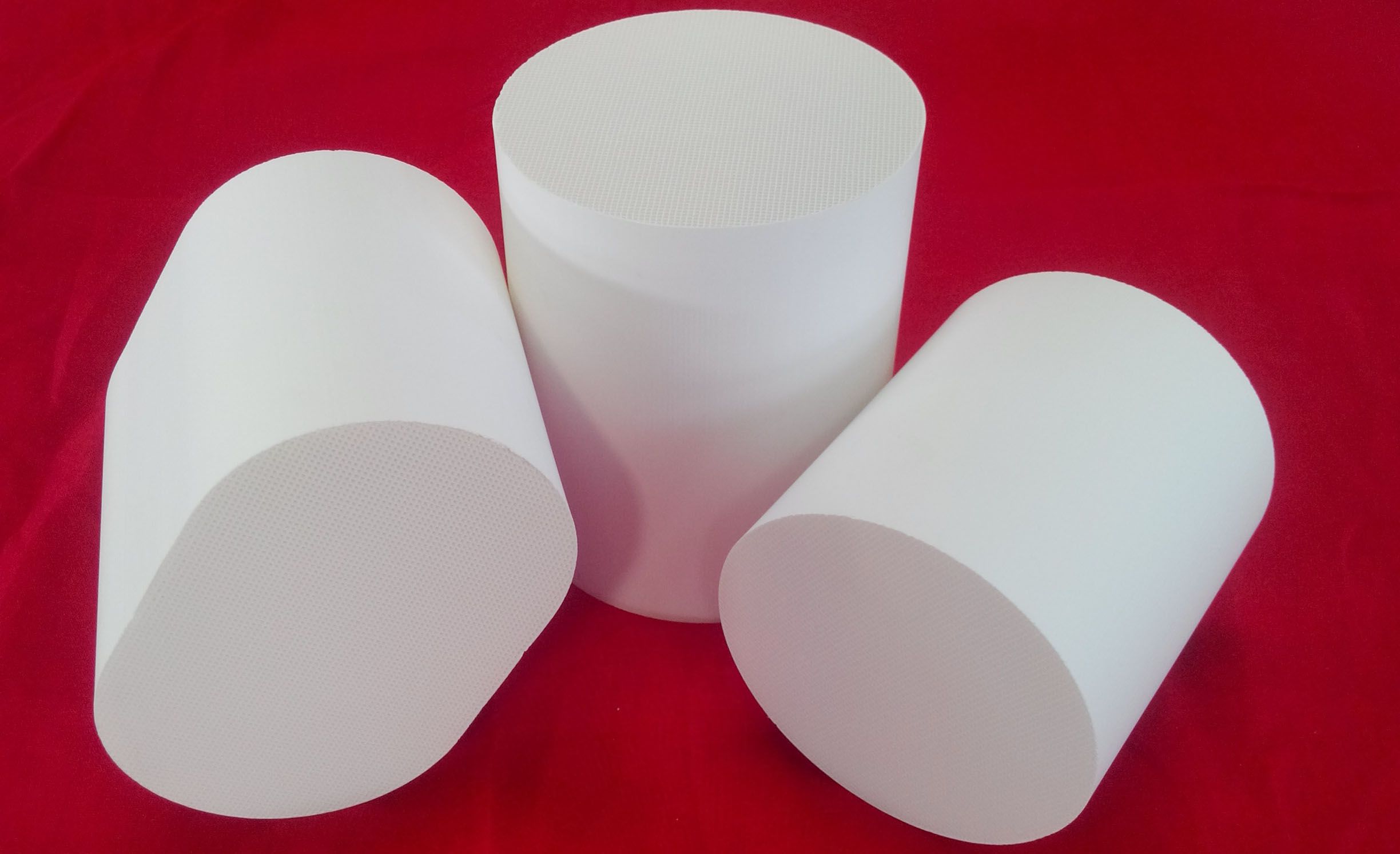

Honeycomb Ceramic Monolith Ceramic Honeycomb for Car

Honeycomb Ceramic Substrate is made of cordierite, and it is used for car catalytic converter. Honeycomb Ceramic Substrate have a very competive substrates. We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral. It can be coated with the catalyst and the noble metal of Pt, Pd, Rh as the customers emission standards: Euro II, EuroIII and EuroIV and so on.

They well match active components of catalysts, have thin pore wall, large geometric specific area, low thermal expansion coefficient and good thermal impact resistance, while widely used in various fields. The products are the ideal carrier for catalysts and heat exchanger of purifying waste gas in environmental protection and chemical industry, and also the ideal high-temperature filtering materials of the metallurgy and casting industry.

Honeycomb ceramic has the unique construction, excellent surface function and thermal property, was widely used in the automobile tail gas purification, chemical effluent gas purification, chemical catalysis, connecting combustion, melt metals and thermal medium filtering etc.

Application: Automobile exhaust purification catalyst carrier, suitable for Automotive vehicle exhaust purifiers (European standard) supporting

Specifications:
*Pore density: 600 cells/square inch, 25 cells/square inch
*Materials include cordierite, mullite cordierite, mullite and high alumina
*Pore shapes: Circular, rectangular and triangle
*Product section: Circular, square, rectangular, oval, lane-shape and special-shape
*Max. Outside dimensions: Diameter 300mm, height 355mm
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small
*Cold start performance is good, low light-off temperature, high conversion efficiency

Parameters		Unit	standard	typical data
Cordierite crystal phase		wt%	≥ 90	94
Coefficient of Thermal Expansion20-800 ° C		cm/cm/ ° C	≤ 1.2	≤ 1.5 × 10-6
Thermal Stability20-650 ° C		times	≥ 1	3
Soften Temperature		° C	≥ 1420	1440
Compression Strength	Lengthways	MPa	≥ 15	16.9
	Horizontal	MPa	≥ 2	6.2
Specific Weight		Kg/L	≥ 0.15	0.45-0.5
Porosity		%	40-45	41
Water-absorbing rate		%	23-27	23.8

Rotundity shape		Ellipse shape
Specificationmm	Number of channels (holes /square inch)	Specification (mm)	Number of channels (holes /square inch)
Φ 83 × 85	400	T146.8 × 77 × 86.4	400
Φ 144 × 152.4	400	T120.6 × 80 × 152.4	400
Φ 100 × 100	400	T169.7 × 80.7 × 76.2	400
Φ 130 × 130	400	T144.8 × 81.3 × 152.4	400
Φ 118 × 150	400	T144.8 × 81 × 76.2	400
Φ 103 × 100	400	T169.7 × 80.7 × 101.6	400
Φ 150 × 75	400	T144.8 × 81.3 × 100	300
Φ 83 × 125	400	T127 × 63.5 × 107	300
Φ 150 × 150	300	T144.8 × 81.3 × 70	300
Φ 120 × 100	300	T144.8 × 81.3 × 150	300
Φ 101.6 × 100	300	Race track shape
Φ 94 × 100	300	P120.65 ×  80.01 × 76.2	400
Φ 85 × 70	300	P120.65 ×  80.01 ×  76.2	200
Φ 93 × 76	200	P144 × 68 × 150	400
Φ 118 × 76	200	P125 × 80 × 100	400

Package
