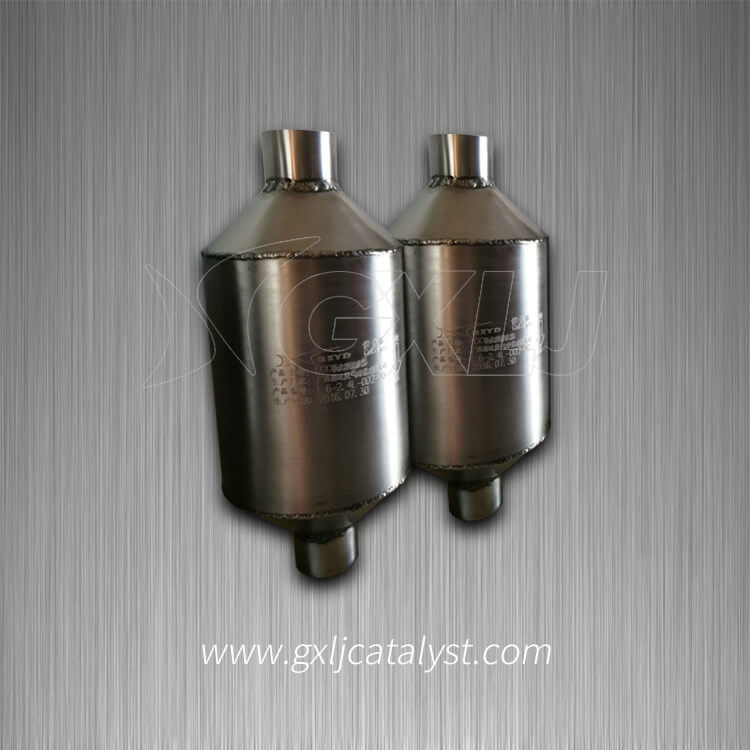

Honeycomb Ceramic/Metal Substrate (Catalyst Monolith) for Catalytic Converter

Body Material:	Steel
Discharge Standard:	Euro V
Certification:	TS16949
Component:	Catalytic Converter

Product Description

Metal Honeycomb Substrate is coated with rare earth element and noble metals of Pt, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalyst is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body, it is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application

Working principle about the catalytic converter:
*Catalytic converter is a device used to reduce the toxicity of emissions from an internal combustion engine
*Reduction of nitrogen oxides to nitrogen and oxygen:
2NOx xO2 + N2
Oxidation of carbon monoxide to carbon dioxide:
2CO + O2 2CO2
Oxidation of un-burnt hydrocarbons (HC) to carbon dioxide and water:
CxH2x+2 + [(3x+1)/2]O2 xCO2 + (x+1)H2O


Applications:
*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application


Metal-based monolith substrate offers many advantages in comparison with a ceramic one, for instance:
Shorter light off time;
Less risk of overheating
Less back pressure;
Larger effective area
Greater catalytic capacity
Smaller and more flexible design
Thinner walls
Higher mechanical strength
Better resistance to thermal shock

The cells of metallic substrate density can be 100, 200, 300, 400 or 600 CPSI and more. The shape is round, oval, racetrack and other special shape.
We can help you to make most appropriate and competitive choice according to your requirements for different vehicles and different emission standard.
The shell materials: Ferritic stainless steel SUS444, SUS441, SUS430 and austenitic stainless steel SUS304, SUS316.
The core materials: Domestic FeCrAl (2073/216), import FeCrAl (1.4725/1.4767), copper and iron, etc.
The foil thickness: 0.05-0.1 mm.
The hole density: 100-900 CPSI.
The braze welding:  Nickel-based solder.
Shape: Round, oval, racetrack, rectangle and other especial shape according to the design of client.
Type: Spirality series, "S" series and "SM" series.



Material	metal material
Size	more sizes and Spec. Can be customized to your engine
Shape	Round/ Racetrack/Oval "T" series(one hole)/ "S" series (Two holes)
Certification	ISO9001
MOQ	1 Piece
Packaging	all product package can be customized based on your requirements
Payment terms	L/C, T/T, Western Union
Conversion Rate	CO≥96%, HC≥95%, NO≥90%
Coating losing rate	≤3%
Scope	apply to Auto/Motorcycle, Infrared Gas Stove, etc.
Advantage	Low initiation temperature
	Low pressure drop
	High mechanical strength
	Excellent thermal and coking resistance
	Reliable braze welding intensity
	Durable heat-resisting impact performance
	Perfect catalyst coating binding force
	Good anti-shock
Service life	Above 120,000 KM
Price	The price is different with different specification, pls contact us directly.




Specification

Mantle	Matrix	Brazing
Ferritel (SUS444, SUS441, SUS430)	Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy Domestic FeCrAl(2073/216) Import FeCrAl(1.4725/1.4767)	Nickel base alloy
or Austenitic heat resistant stainless steel (SUS304)


Dimension and Cell Densitities

Dimensions, mm	Cell densities,CPSI	Foil thickness,mm
round shape with diameter more than 10mm, length up to 800mm	50, 100, 200,250,300,400,500,600, 800,1000	0.03,0.04, 0.05,0.06,0.08,0.10
Oval shape
Others (Rectangle etc.)
