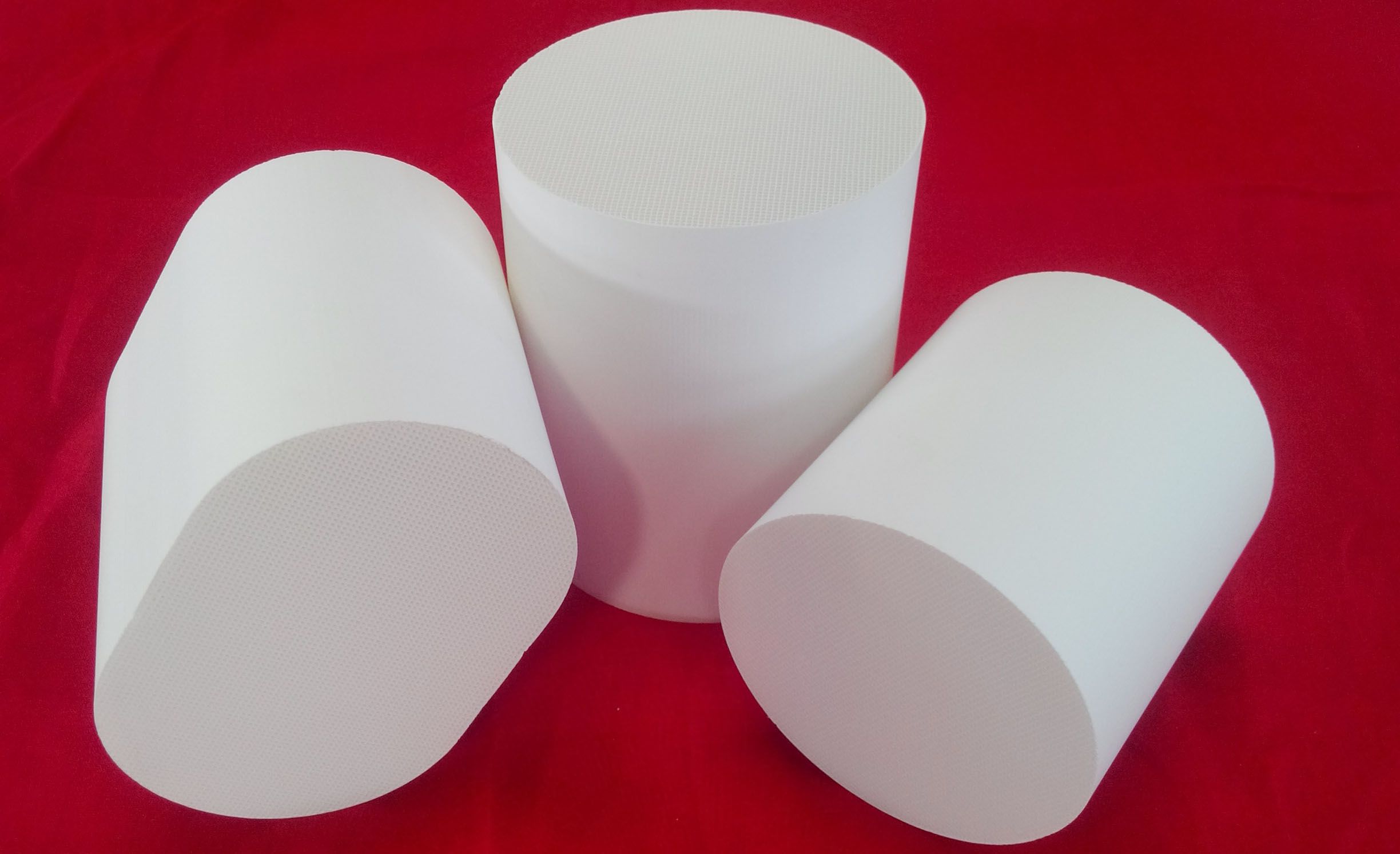

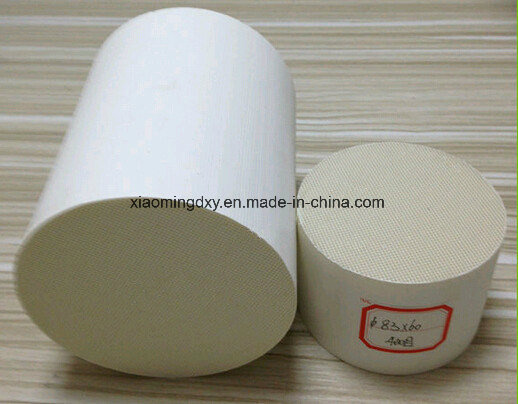

Honeycomb Ceramic Catalyst substrate used in cars:
Used as catalystic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst; At the same time, we improve the specific surface areas and cut down the heat capacity to increase the atalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.
Our ceramic honeycomb substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification for motorbike/vehicle. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI with various shapes, such as round, oval, racetrack and other customized shapes. We can coat them with noble metals like Pt, Pd, Rh to remove harmful gases such as CO, NOx etc that can meet emission standard: EuroII-EuroV.
Advantages:
>High specific surface area: Ensure exhaust gas could contact with catalyst enough.
>Stable water absorption: Guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating.
>Warm-up characters: After starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
>Low exhaust resistance: Ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine.
>High intensity: Substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
>Perfect assembly: Substrates are parts of exhaust; Perfect appearance and exact dimension could ensure assembly perfect.
| Item | Index |
Heat Property | Coefficient of heat expansion (40-800celsius degree) (x10-6/celsius degree) | <1.0 |
Heat Property | Specific heat [J/(g.k)] | 0.84 |
Heat Property | Softening temperature (celsius degree) | 1400 |
Heat Property | Melting point (celsius degree) | 1455 |
Heat Property | The highest working temperature (celsius degree) | 1350 |
Physical Property | Fine mesh bulk (cm3/g) | 0.2 |
Physical Property | Apparent porosity (%) | 36 |
Physical Property | Average fine aperture (um) | 4 |
Mechanical Property | Compress breaking strength (Mpa) | Aaxes>8.3 Baxes>1.1 Caxes>0.1 |
Thermal Shock Resistance | Aire cooled temperature difference (celsius degree) | >650 |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
