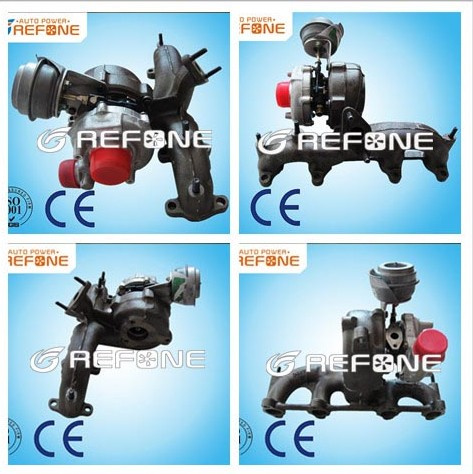

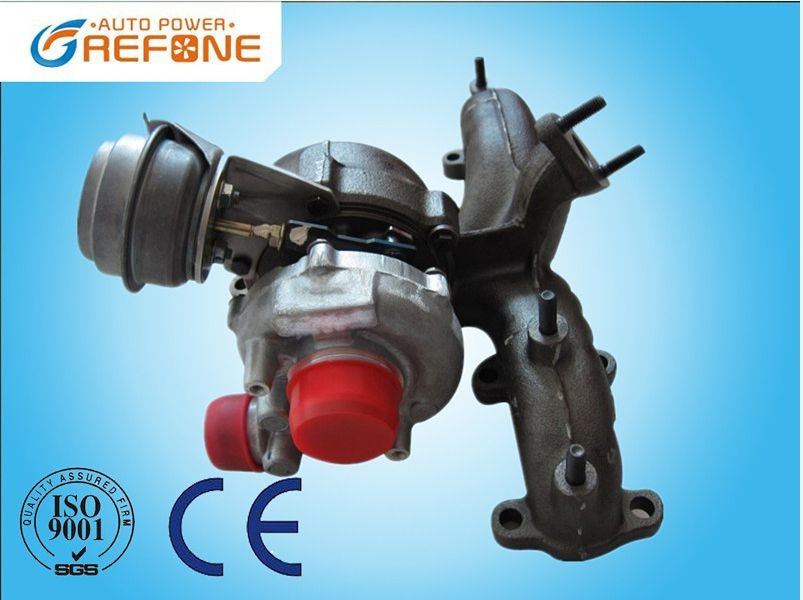

High Quantity GT1749V 713672-0002 Garrett Turbo Kit With PD UI EngineProduct Details
| Part Number | 713672-5006S |
| Previous Version | 713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S |
| OE number | 038253019C, 038253019CV500, 03G253016N, 038253019CV225 |
| Year | 2000-06 |
| Description | Audi A3, Seat Leon, Volkswagen Beetle, Golf IV |
| CHRA | 433395-0020 (433395-5020S, 433395-0040) |
| Turbo Model | GT1749V(S1) |
| Engine | PD UI, ALH, AHF, AJM, AUY |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 CYL |
| KW | 81/85 |
| RPM Max | 4000 |
| Angle α (compressor housing) | 177 |
| Angle β (turbine housing) | 90 |
| Bearing Housing | 433145-0005/722282-0002 |
| Turbine Wheel | 434533-0002/434533-0039 |
| Comp. Wheel | 434812-0001/434812-0002 |
| Back plate | 700593-0006 |
| Heat Shield | 433112-0001 |
| Thrust Kit | 732248-0003/732252-0001 |
| Service Kit, Major | 732248-003/732245-0001 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0015 |
| Settings Waste gate adjustment (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Gasket exhaust manifold | 210664 |
| Gasket (turbine outlet) | 210311 |
| Gasket (oil outlet) | 210243 |
| Gasket actuator EGR | 210313 |
| Manufacturer | Honeywell-Garrett |
Application 00-06 Audi A3 TDI with PD UI Engine
00-06 Seat Leon TDI S with PD UI Engine
00-06 Volkswagen Golf TDI with PD UI Engine
1996-2003 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1997-2001 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1999-2005 Seat Leon 1.9 TDI Engine ALH, AHF
1999-2003 Seat Toledo II 1.9 TDI Engine ALH
1999-2004 Seat Toledo II 1.9 TDI Engine AHF
1997-2007 Skoda Octavia I 1.9 TDI Engine ALH, AHF
1998-2004 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY
1998-2004 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY
1997-2003 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF
Factory Image
Your Benefits
a.Quality Warranty: 1 Year
b.High speed balancing tested
c.Produce turbo as customer's requirment
d.Easy and effective aftersale service
Company Imformation
Refone Auto Power Co., Ltd Is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia.
Contact Imformation:
Ms Tina
www.cnrefone.com
+86 551 65619971
Model |
Part No. |
OEM No. |
Application |
GT1749V |
454231-0001 |
028145702H, 0
28145702HV225,
028145702HV500,
028145702HX,
028145702HV | 97-04 A4 TDI Car with TDI 110 PD - TDI 115 PD - PD UI Engine
97-04 A6 TD with TDI 110 PD - TDI 115 PD - PD UI Engine
97-04 Skoda Superb TDI with TDI 110 PD - TDI 115 PD - PD UI Engine
97-04 Volkswagen Passat TDI with TDI 110 PD - TDI 115 PD - PD UI Engine
1997-1999 A4 1.9 TDI (B5) Engine AHH / AFN
2000-2004 A4 1.9 TDI (B6) Engine AVB, BKE
1997-2001 A6 1.9 TDI (C5) Engine AHH / AFN
1997-2000 Volkswagen Passat B5 1.9 TDI Engine AHH / AFN |
GT1749S |
732340-0003 |
282004A361
28200-4A361 |
2003 Hyundai Truck Porter 1with D4BC Engine |
T300 |
700836-5001S |
6207819330,
6207818331,
6207-81-8331,
6207-81-8330 |
1997 Komatsu Earth Moving PC150/200 with S6D95L Engine |
TA03 |
465379-0003 | 4848601,
99446021,
2992392 |
1992- Ford Truck Euro Cargo with 8040.45.4300 Engine
1992- Iveco Truck Euro Cargo with 8040.45.4300 Engine |
TB25 |
452162-0001 | 144117F400,
14411-7F400 |
1993-2007 Nissan Terrano II TDIC with TD27TDI Engine |
K03 |
53039880011 | 06A145704L,
06A145704LX,
06A145704LV,
06A145704,
06A145703G,
06A145703A,
6A145703B | 1997-1998 Volkswagen Golf IV 1,8 Engine AGU
2000-2005 Volkswagen Bora 1,8T Engine AVC,APH,AGU |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
