High Quality Paint Spray Booth with Diesel Burner Chamber
| Price: |
US $ 10800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
900 |
| Inside Size: |
6900X3900X2650mm |
| Outside Size: |
7000X5350X3300mm |
| Front Door(mm): |
3000X2600(Wxh), 4PCS |
| Ceiling Lights: |
12units*2PCS=24PCS*20W |
| Intake Fan: |
1*7.5kw Turbo Fan |
| Outtake Fan: |
1*5.5kw Turbo Fan |
| Certification: |
CCC |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Product Description
| Items | Detailed specification |
| Inside Dimension | 6900×3900×2650 mm(L×W×H) |
| Outside Dimension | 7000x5350x3300mm (LxWxH) |
| Front Door | 4 folds, Enter size:3000×2600mm(W×H), metal sheet door without rim, 50mm EPS panel. (Panel for MasterCard Brand --Fig 1 )Orange doors and White door side and top frame. With safe lock in one gate. Glass lettering " tempered glass" |
| Service Door | 1 set,Enter size:2000×800mm(W×H),With pressure lock and view glass window(1000x400mm). Glass lettering " tempered glass" |
| Basement | Height: 300mm, galvanized steel plate.
Floor:5 rows steel grating (Galvanized),with air balanced plate(Fig--2)
Ramp:2x 900mm checked plate ramps(Painting) |
| Wall Panel | 1. 50mm EPS wall panel (White), 0.426mm color plate, tongue and groove. With metal cover.
2. Roof panel made by 0.8mm thickness galvanized steel plate.
3. With Moving slide(Inside the booth to hang air gun or tools) |

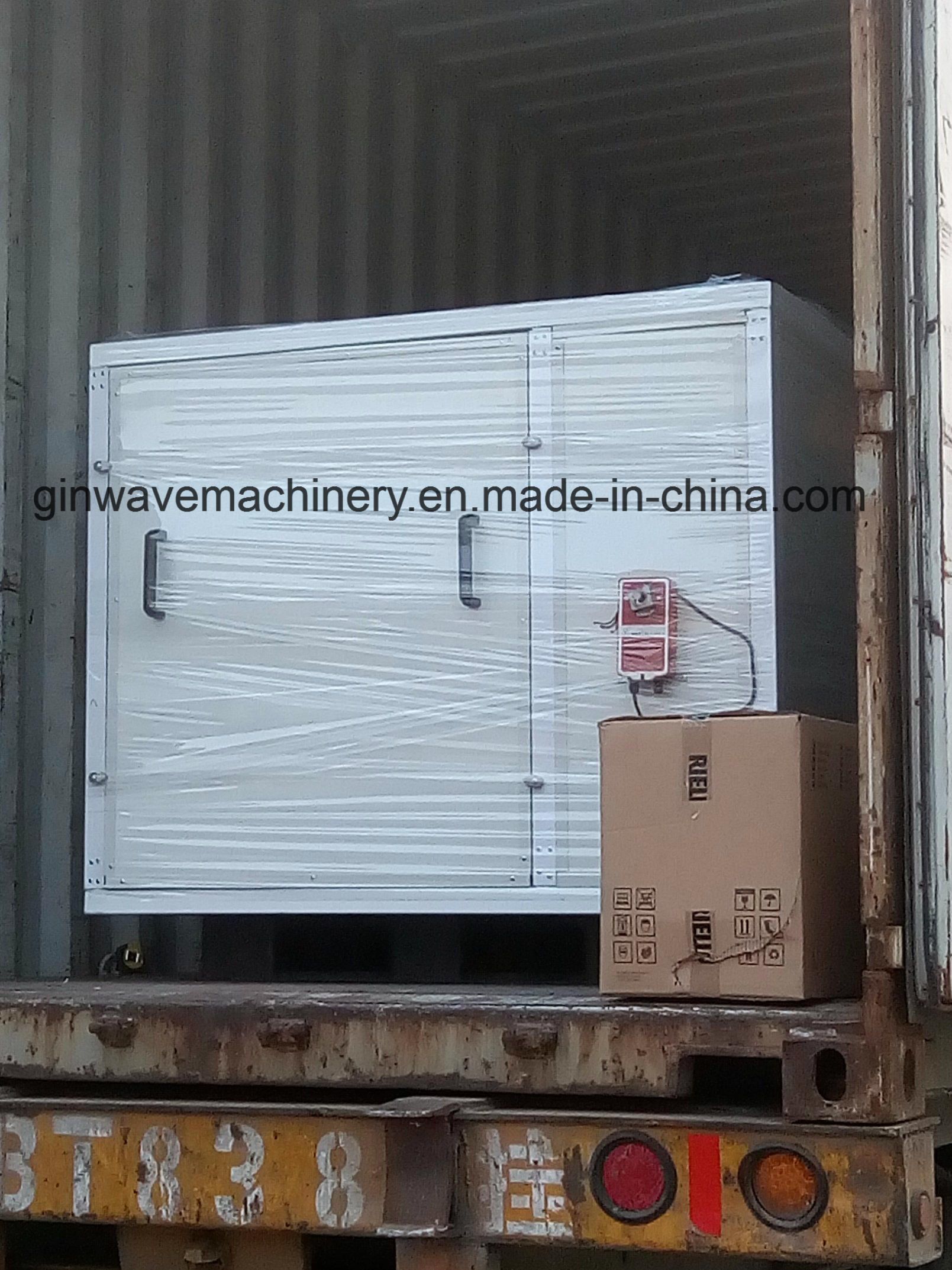

| Intake&Exhaust System | 1. Air cabinet made by spraying sectional material and spraying steel plate, covered by galvanized steel plate, with rock wool panel inside.
2. Intake Fan: 1*7.5 KW Turbo fan, and air capacity 25000m3/h.
3. Exhaust Fan: 1*5.5 KW Turbo fan,and air capacity 22000m3/h.
4. Motor with Y/start. |
Exhaust
pipe(heat) | Galvanized steel plate and flange
4 pieces straight pipe,1 piece elbow |
| Air ducting | 4 pieces straight pipe,1 piece 90 elbow, 1 VCD manual damper, 145 degree elbow
0.8mm,Galvanized steel plate and flange |
| Lighting System | Ceiling lighting: 12 groups*4pcs=32pcs, 20W anti-explosion LED lighting (Fig --3)
Side lighting: 8 groups*2pcs=16pcs, 20W anti-explosion LED lighting
Glass lettering " tempered glass" |
| Heating System | 8units×3pcs=24pcs×1kw sliding short infrared lamps on both sides, total is 24kw;
Fixed short infrared lamps on the back, total is 6kw.
G20 Diesel fuel burner,304 stainless steel heat exchanger
With 4 pcs chimney (stainless steel) and 2 elbow. With water hole
With anti-explosion mouth.
With tool cabinet for storage some paint, and other small tool. |
| Purification System | Roof filter: 600G;4 Kinds of Filter;Pre-filter;Ceiling filter: 2 rows fiber glass filter;
fiberglass filter and activated carbon filter |
| Controlling System | Button type control box. Normal temperature spraying, lighting switch, emergency stop switch,
failure alarm, time limited, pressure gage, ect. |
| Air speed | ≥0.25m/s |
| Highest temperature | 80 degree |
| Voltage | 380V/3P/50HZ |
| Color | White, blue, orange, red for optional |
| Total Power | 20 KW |
the same price higher quality, the same quality lower prices.
*2 years quality warranty!!!
*Fast and stable supply ability!!!
*Personalized design to meet customer various needs!!!
Over 14 years big spray booth factory;
Powder coating technology treatment;
Factory price and best quality;
OEM available.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply 3 years warranty, good after sale service will let you have insurance for using our product.
