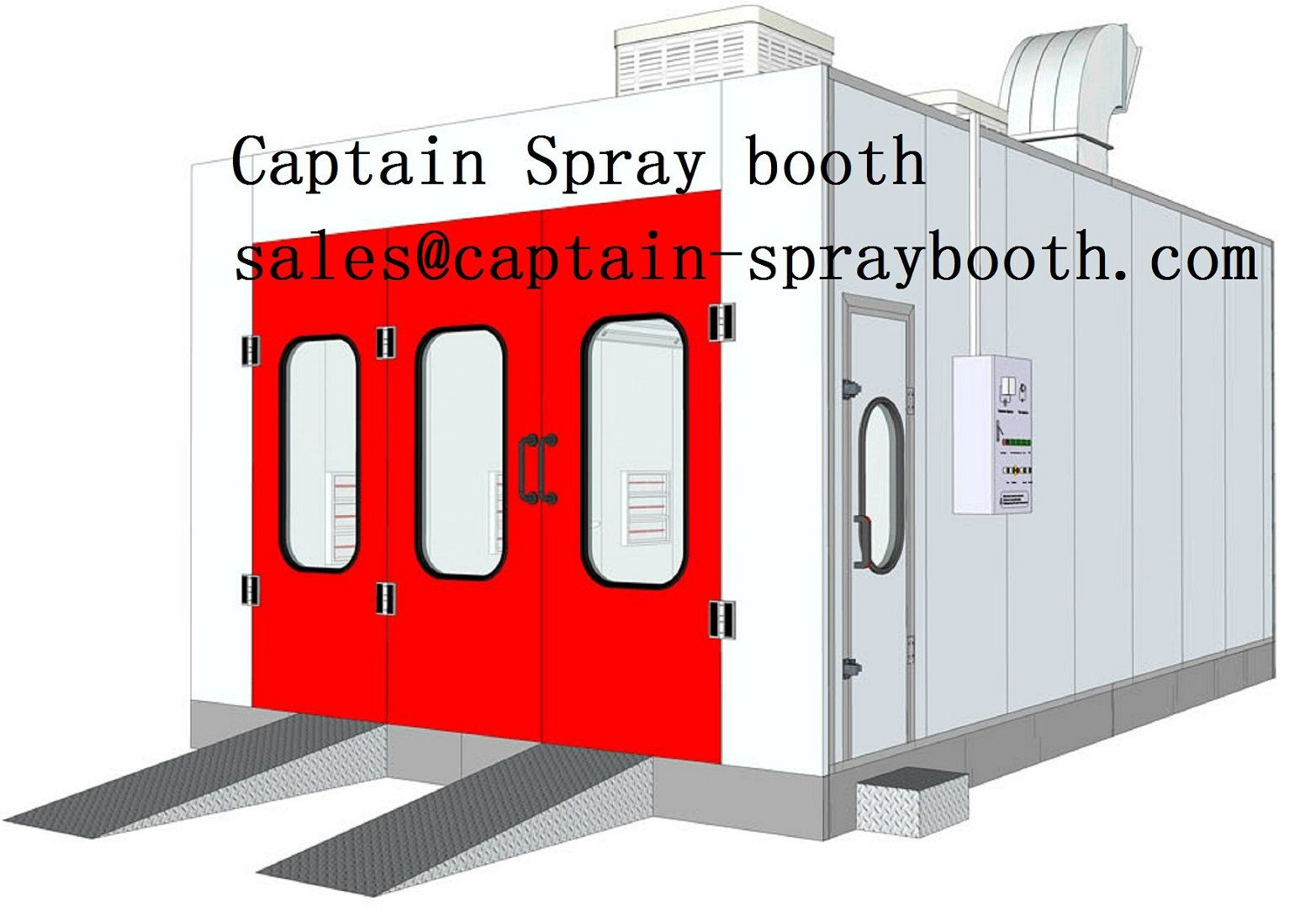

High Quality Low Price Car Spray Booth
| Price: |
US $ 4200/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Inside Size(mm) | 7000x4000x2650 | Outside Size(mm) | 8300x4100x3400 | Front Door(mm) | 3000x2600(WxH) | Total Power | 33kw |
| Basement | 3 rows of diamond plate, 2 rows of grilles, made by 30mm x 4mm flat steel, 2 embossed steel ramp, 1 piece stairs. |
| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure; The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 1.5 kw high efficiency top fans for supplying, air capacity is 20000 m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating, and 1 sets 3 kw axial flow fan, air capacity is 32000 m3/h. |
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | Standard 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. |
| Purification System | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
Spray Booth
1. German Technology
2. Spray booth professional manufacturer
3. Competitive price and assure quality
4. CE approved
| Prod Model: |
JUP6939RW5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
7000mm*4000mm*2650mm |
| Outside Dimension: |
8300X4100X3400mm |
| Front Door: |
3-Folds:3000*2600mm |
| Personal Door: |
1-Fold: 750*1800mm |
| Wall Panels: |
Rock Wool Colorful Board, 50 mm Thick,0.6mm Steel |
| Cabin System: |
No Basement |
| Color: |
Optional |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
