High Quality Diesel Burner Midsize Bus Spray Paint Booth Oven (GL8-CE)
| Price: |
US $ 2000-25780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
High Quality Diesel Burner Midsize Bus Spray Paint Booth Oven(GL8-CE)
GL8-CE Spray Booth Description--Wall panel :sandwich style,δ=50mm,polystyrene.(Rock wool as optional)
--Basement:steel structure,3 rows of vein board and 2 rows of grids(full grids as optional).
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Frame;steel,powder coated.
--One 11kw intake fan.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
--Roof filter:5pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 1pcs of M style air mouth filter.
--Upper light:12sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.-- 13kw power.| Model | GL8-CE |
| External size (m)(LxWxH) | 8.7x5.63x4.23 |
| Internal size (m)(LxWxH) | 8.6x4.0x3.4 |
| Entrance width(m) | 3.0 |
| Entrance height(m) | 3.35 |
| Fan capacity( m 3 /h ) | 35000 |
| Air velocity (m/s) | 0.25-0.3 |
| Drying temperature(ºC) | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Color | Orange,Blue,Red,White,or Client's Requirements |
| Water-based paint device | As option |
| Power (kw) | 13 |
| Suitable Automobile Type | Mid-Size Bus |

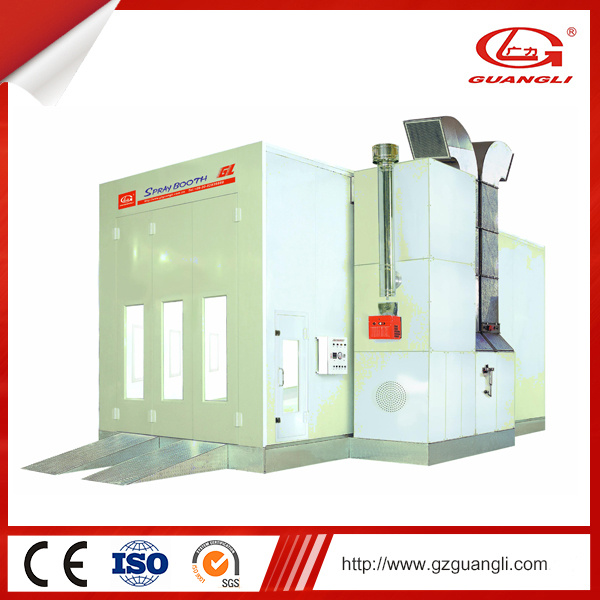

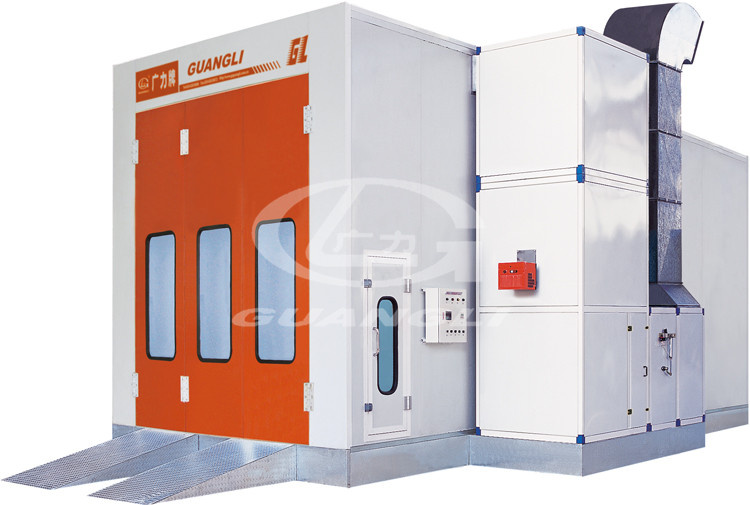

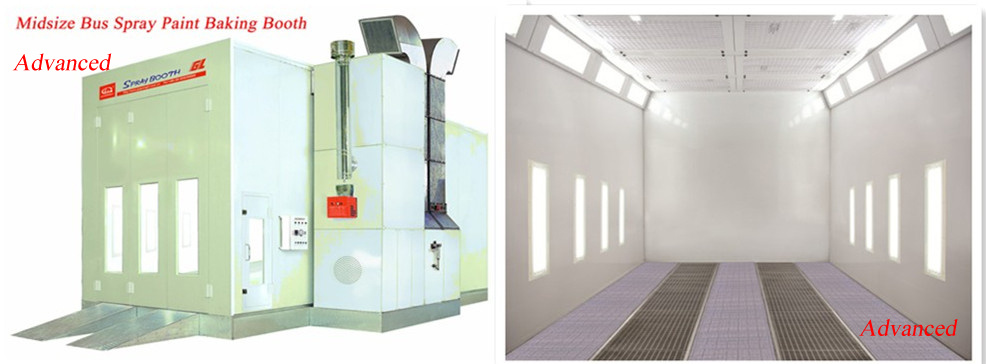

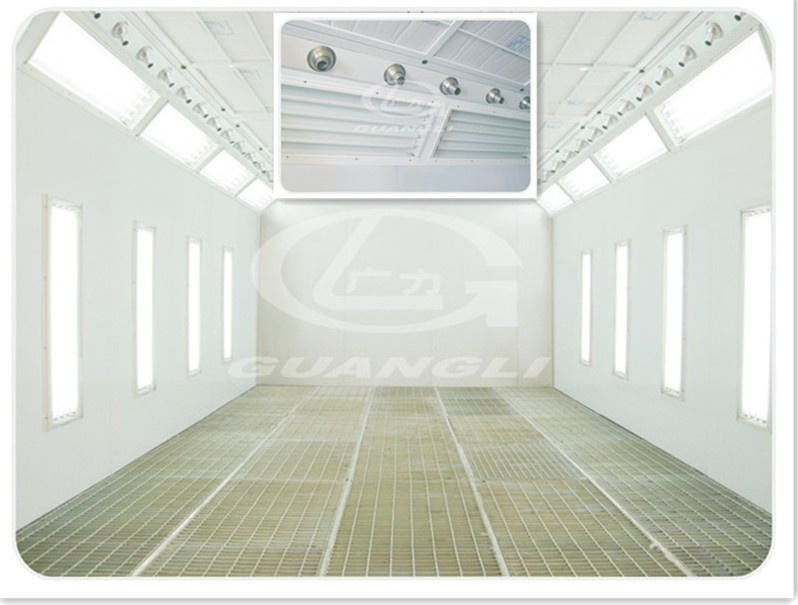

GL8-CE Spray Booth Show
EquipmentWith the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.
Exhibitions
Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.Warmly welcome to contact:
Tel:+86-20-86378972
Website:www.gzguangli.com
| Prod Model: |
GL8-CE |
| Door Width(M): |
3.0 |
| Door Height(M): |
3.35 |
| Air Flow (M3/H): |
30000 |
| Lighting System: |
Upper Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Vehical Suited: |
Midsize Bus |
| Warranty: |
Yes |
| Heating System: |
Riello Brand Diesel Burner/Gas Burner Available |
| Certification: |
ISO9001 |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
