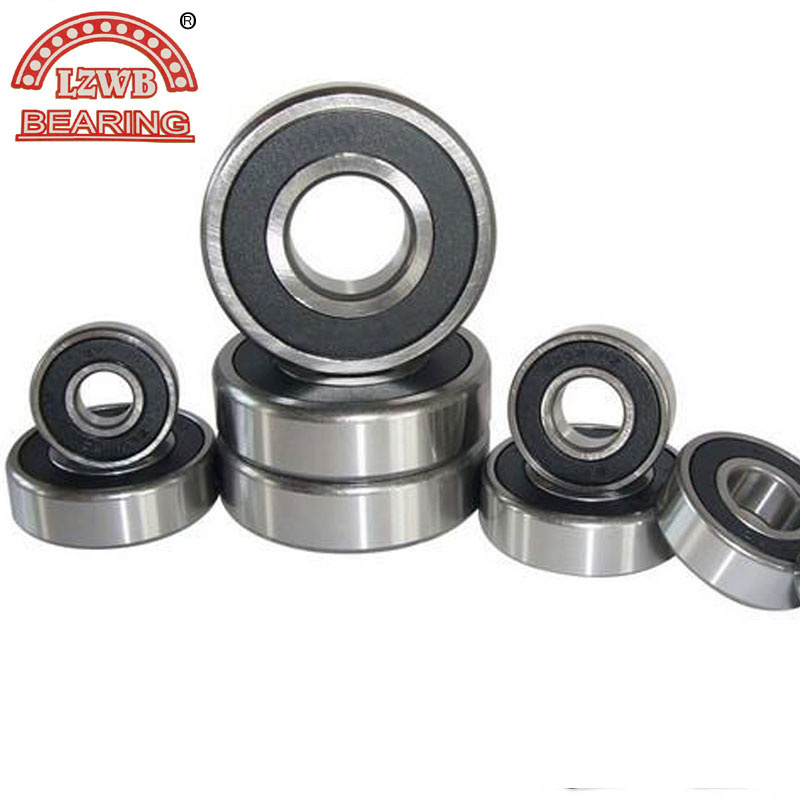

High Quality Deep Groove Ball Bearings (6312 NZR)

Deep groove ball bearings is the most common bearing. Its simple structure, easy to use. Mainly used to bear radial load, but increases when the radial bearing clearance, with certain properties of angular contact ball bearings can handle radial and axial joint load. They should not be used in a high speed thrust ball bearings, they can be used to bear the pure axial load. With the same size compared to other types of bearings, such bearings friction coefficient is small, extreme high speed. However, the impact of intolerance, unfit to bear heavy loads.

LIANGDA BEARING: Home >> ABOUT US

Linqing Liangda Bearing Co, . Ltd, our company is located in the biggest bearing base of China-Panzhuang Industries Zone, Linqing City, Shandong Province, dividing in to Bearing factory, Liaocheng Export Branch, which are covering over 20000 square meters, and 400 skilled employees, more than 80 professional engineers. There are 8 advanced automatic production lines with the measure of the British system, is one of the professional bearing factories in China. The main products includes:
1. Tapered Roller Bearing
2. Spherical Roller Bearing
3. Cylindrical Roller Bearing
4. Thrust Ball Bearing
5. Deep Groove Ball Bearing
6. Self-aligning Ball Bearing
7. Angular Contact Ball Bearing
8. Pillow Block Bearing
Our Bearing are widely used in the industrial fields such as rubber, plastic, textile, papermaking, food, electrical home appliances, chemicalindustry, petroleum, generating electricity, cement, mine, steel and automobile, etc. Our Bearing are also exported to other countries, such as Poland, Bulgaria, Canada, India, Italy, Germany, etc. We sincerely welcome friends from all over the world to visit our company and talk on business.

mm				KN				mm			rpm
Principal dimensions				Basic load ratings				Abutment and fillet dimensions			Speed ratings
d	D	B	rsmin	dyc	stc	Old spec.	Designations	Ds min	dh max	R max			Weight
				Cr	Cor						Grease	oil	kg
50	80	16	1	16.9	16.3		6010	55	75	1	6500	10000	0.248
	90	20	1.1	35	23.2		6210	56.5	83.5	1	7100	8500	0.504
	110	27	2	48	36	310	6310	59	101	2	6300	7500	1.07
	110	27	2	48	36		6310TN1	59	101	2	6300	7500	0.998
	130	31	2.1	71	55	410K	6410	61	119	2	5300	6300	1.85
55	100	21	1.5	33.5	28.8	211K	6211	63	92	1.5	6300	7500	0.605
	120	29	2	55	45	311K	6311	64	111	2	5600	6700	1.39
	120	29	2	55	45		6311TN1	64	111	2	5600	6700	1.31
	140	33	2.1	77	62	411K	6411	66	129	2	5000	6000	2.31
60	95	18	1.1	30	23	112	6012	66.5	88.5	1	6700	8000	0.426
	95	18	1.1	30	23		6012M	66.5	88.5	1	6700	8000	0.497
	110	22	1.5	47.5	33	212K1	6212	68	102	1.5	5600	7100	0.793
	130	31	2.1	63	48.5	312Q	6312	71	119	2	5300	6300	1.71
	130	31	2.1	70	53		6312Q1	71	119	2	5000	6000	2.07
	130	31	2.1	63	48.5	412K	6312TN1	71	119	2	5000	6000	1.64
	150	35	2.1	84	70		6412	71	139	2	4800	5600	2.78
65	90	13	1	15	17	1000913	61913	70	85	1	6700	8000	0.203
	100	18	1.1	32	25		6013	71.5	93.5	1	6300	7500	0.428
	100	18	1.1	32	25		6013M	71.5	93.5	1	6300	7500	0.553
	120	23	1.5	44	40	213	6213	73	112	1.5	5300	6300	0.973
	120	23	1.5	43	41	213G	6213G	73	112	1.5	5300	6300	1.01
	120	23	1.5	43	41	180213	180213	73	112	1.5	5300	6300	1.06
	140	33	2.1	63	48.5	313	6313	76	129	2	4800	5600	2.1
0	140	33	2.1	63	48.5		6313M	76	129	2	5600	4800	2.1
	160	37	2.1	118	78.5		6413	76	149	2	4500	6300	3.25
70	110	20	1.1	38	31		6014	76.5	103.5	1	6000	7000	0.62
	110	20	1.1	38	31		6014M	76.5	103.5	1	6000	7000	0.757
	125	24	1.5	46.5	46		6214	78	117	1.5	5000	6000	1.34
	150	35	2.1	80	68	314	6314	81	139	2	4500	5300	2.55
	150	35	2.1	80	68		6314/C9	81	139	2	4500	5300	2.55
72	110	20	1.1	38	31		60/72	77	105	1	4500	5300	0.584
75	115	20	1.1	38	31		6015	81.5	108.5	1	5600	6700	0.63
	115	20	1.1	38	31		6015M	81.5	108.5	1	5600	6700	0.804
	115	13	0.6	17	22	7000115	16015	81.5	108.5	1.5	5600	6700	0.583
	130	25	1.5	51	50	215	6215	83	122	1.5	4800	5600	1.16
80	110	16	1	21	25	1000916K	61916	85	105	1	5600	6700	0.35
85	130	22	1.1	47.5	40		6017M	91.5	123.5	1	5000	6000	1.12
	150	28	2	65	65	217K	6217	94	141	2	4300	5000	1.8
	150	28	2	83	64		6217/HA	94	141	2	4300	5000	1.8
	150	28	2	60	60		6217M	94	141	2	4300	5000	1.91
	180	41	3	102	96.5	317	6317	98	167	2.5	3800	4500	4.33
	210	52	4	133	136	417K	6417	101	194	3	3200	3800	8.12
90	125	18	1.1	33	31.5	1000918K	61918	96.5	118.5	1	5000	6000	0.572
	125	18	1.1	33	31.5	1000918	61918M	96.5	118.5	1	5000	6000	0.68
	140	24	1.5	58.5	50		6018	98	132	1.5	4800	5600	1.16
	140	16	1	58.5	50		16018M	95	135	1	4800	5600	0.941
	140	24	1.5	58.5	50		6018M	98	132	1.5	4800	5600	1.39
	160	30	2	73.5	72	218	6218	99	151	2	3800	4500	2.19
95	145	16	1	31.5	39		16019	100	140	1	4500	5300	0.884
	145	24	1.5	60.5	54		6019	103	137	1.5	4500	5300	1.14
	170	32	2.1	83.5	81.5	219	6219	106	159	2	3600	4300	2.61
	170	32	2.1	83.5	81.5		6219M	106	159	2	3600	4300	3.26
	200	45	3	120	122	319K	6319	108	187	2.5	3200	3800	5.65
	240	55	4	204	171		6419M	108	215	2.5	3400	3600	13.4
100	140	20	1.1	34.5	35		61920M	106.5	133.5	1	4500	5300	0.96
	140	20	1.1	34.5	35		61920	106.5	133.5	1	4500	5300	0.85
	150	24	1.5	56.5	48		6020	108	142	1.5	4300	5000	1.17
	150	24	1.5	48	56		6020M	108	142	1.5	4300	5000	1.4
	180	28	1.8	89	92	720	720	111.5	171.5	1.8	3400	4000	2.7
	180	34	2.1	94	93	220K	6220	111	169	2	3400	4000	3.2
120	150	16	1	19	28	1000824	61824	125	145	1	3800	4500	0.568
