High Performance Fuel Pump, E85 Compatible Ethanol Fuel Pump 340lph High Flow in-Tank Fuel Pump (GSS342 340LPH)

Walbro Fuel Pump GSS342 340LPH E85 Ethanol Compatible

Product Details:
High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.

High Flow In-Tank Fuel Pump flows 320 lph (84 gph) at 43 PSI and is capable of supporting over 1, 000 HP at 43 PSI.

CreditParts High Flow In-Tank Fuel Pump Features:
Designed for high output naturally aspirated and forced induction EFI vehicles
In-Tank design
Tested to flow 320 lph @ 43 PSI
39mm diameter fits most applications
Offset inlet design eases installation
Each pump individually tested
For gasoline & E85 vehicles

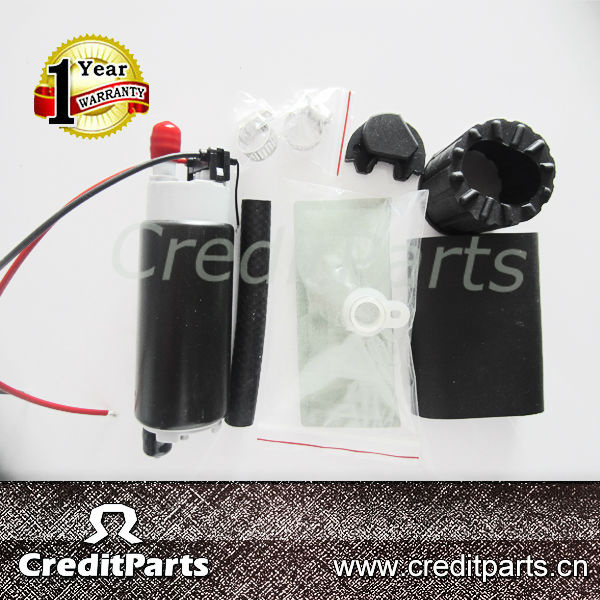

Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead

TECHNICAL SPECS:
Weight: 10.1oz (285grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 8 mm hose clamp
PRV Activation: 90 PSI
Impeller Design: Single Scroll Hard Anodized Aluminum Turbine

VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Power rating given at 43 PSI, 13.5v at the pump with a BSFC of. 5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
