High/low pressure power steering pressure pump pipes
Brief introduction of high pressure power steering hose assembly applied to auto brake system
| Application Environment | Sun, rain, snow, fog, wind, sand, dust erosion, salt spray, acid rain, dust |
| Construction | power steering hose |
| Application | Power steering system: Flexible connection from steering box to steering oil pot & steering pump in auto power steering system |
| Applicable Medium | ATF oil |
| Connection | Adopt crush or squach on rubber hose to realize permanent coupling |
| Fittings | Adding noise reducer, rubber sheath or metal support as required |
| Accreditation Standards | GB/T20461 (GB),SAE J188(US),SAE J2050 (US),ISD-V01-502B (Japan),ES 6G91-3A719-AA (Ford) |
Technical Parameters of power steering hose | TYPE | Size | (I.D) | (O.D) | Max W.P | Min B.P | Pulse life | Applied Temp. |
| Min | Max | Min | Max |
| (mm) | mm | mm | mm | mm | Bar | Bar | ≥10,000 times |
| DL01 | Φ10x20 | 9.5 | 10.5 | 19.2 | 20.8 | 10.5MPa | 36MPa | 22.5 | -40ºC~135ºC |
| DL02 | Φ9.5x20 | 9.0 | 10 | 19.2 | 20.8 | 10.5MPa | 36MPa | 22.5 | -40ºC~120ºC |
| DL03 | Φ9.5x18 | 9.0 | 10 | 17.2 | 18.8 | 10.5MPa | 36MPa | 22.5 | -40ºC~150ºC |
| DL04 | Φ9.5x18.5 | 9.0 | 10 | 17.7 | 20.3 | 10.5MPa | 36MPa | 22.5 | -40ºC~135ºC |

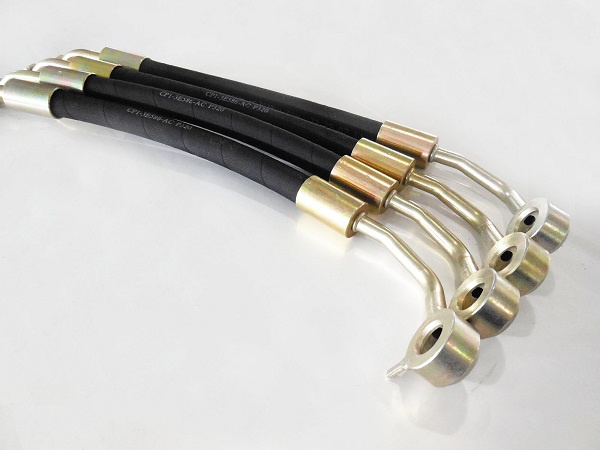

Product Show of power steering hose
Packaging: * Generally: PVC bag in carton box with ORLETE logo
* Can be customized based on your requirementsLead time: * Fitting: common fitting within 30 days; special fitting within 40 days.
* Brake hose: within 20 days.
* Brake hose assembly: within 40 days.
Please noted: exact lead time is based on the order details.Shipping: * About 30 minutes from our factory to Longtan port (Nanjing port)
* Nanjing Lukou Airport is only about 40 minutes away
* conveniently by air or by oceanWhy Choose Us?· Established in 1949, with over 65 years history· China's leading manufacturer of auto brake hoses & assemblies· 550 employees with bachelor, master and doctoral degree· With over 60 patents· With certifications of ISO9001, TS16949, CCC, CRCC, IRIS, SGS, etc· Our brake hoses are used on China leader's personal car How to select rubber hose?1. Internal working medium of rubber hose: compressed air, water, engine oil, speed changing box oil, steam, etc.2. Working temperature: including working medium temperature, surronding environment temperature.3. Working pressure: normal operating pressure, max working pressure; to decide pulsating pressure and pulsating frequency, etc.4. Working environment: if there is bending of rubber hose? What's the bending degree? If there is friction with car body?5. Special requirements: including insulating property, electrical conductivity, flame retardant property, color appearance, etc We Also Produce:Automobile Category:· Auto brake hose & assembly· Air conditioner hose & assembly· Power steering hose & assembly· Oil & water hose· Rubber hose oil seal· O-ring Railway Category:· Brake hose assembly· General air hose assembly· Average hose assembly· High-speed EMU rubber hose & assembly· Urban vehicle brake hose assembly· Railway bearing oil seal· Rail vehicle elastic side bearing· Axial rubber gasket Other Products:· Gas rubber hose· Engineering hose & assembly· Other rubber hoses Brief Introduction of Us:Nanjing Orientleader Technology Co., Ltd. (ORLETE) is originally known as Nanjing 7425 Rubber & Plastic Co., Ltd., founded in April 1949 with Mr Ju Jianhong as the legal representative while controlled by China National Chemical Corporation. Our company located at No.7 Maigaoqiao Pioneer Park, Qixia District, Nanjing, China. As a digital enterprise specialized in rubber products R&D as well as high-end products manufacturing, so far we're China largest R&D and production base of auto brake hose, and also the designated R&D center of railway rubber products for China Railway Corporation. "ORLETE" and "7425" brand have a considerable reputation and credibility with exports to America, Japan and Southeast Asia, etc. Our Workshop:
FAQ:Q1: What kind of rubber hose that you produce?
A:· Rubber brake hose· EPDM brake hose· Hydraulic brake hose· Hydraulic hose· Water hose· Fuel& oil hose· Brake hose· Stem hose· SAE J1401 brake hose· DOT 1/8" brake hose· OE No. brake hose· Flexible brake hose· Performance competition brake hose... Q2: What size of brake hose can you supply? A: Common size: 3.2x10.5mm (1/8"); 4.8x12.5mm (3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words (line) according to our requirements?
A: Yes, we can provide embossed and printing mark with different colors based on your requirements.
Q4: What kinds of fittings can you produce?
A: Various kinds. Female fitting, male fitting, banjo fitting, adepter brake hose fitting, bolts and nuts, steel with zinc , chrome, nickel...stainless steel, brass...
Q5: How many types of brake hose do you produce?
A: Brake hose, Teflon braided brake hose, PTFE stainless steel braided brake line, Steel tube, Bundy tube, Steel tube assembly, Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days, which depends on the order quantity.
