Name: High Frequency Ferrite Compression Dirver, 3 Inch Tweeter Speakers Driver H74/8074
Brand: ibuyautoparts.com
SKU: 803680885
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H74/8074
Type:	Speaker
Speaker Design:	Tweeter
Sound Frequency:	High Pitch
Connection Mode:	Double Wire
Contact Point:	With Contact Point
Energy Exchanging Mechanism:	Electromagnetic
Shape:	Round
Material:	Aluminum and Plastic

Product Description

Product Description

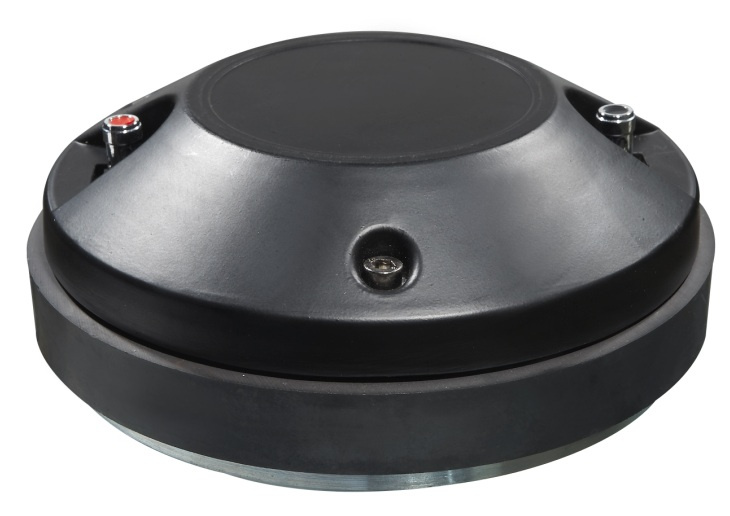

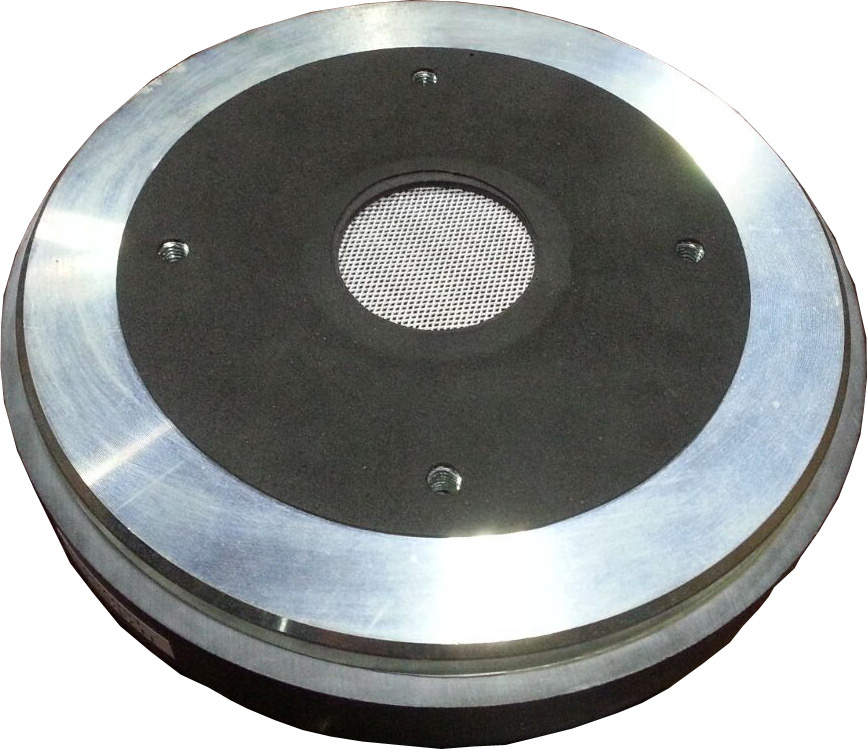

3 inch professional ferrite compression speaker driver
Product main features:
-74mm(3in)Diaphragm, 1.5-inch Exit throat
-Pure titanium compression driver
-180 Watt continuous program power handling
-106 dB Sensitivity
-0.9 kHz-18kHz Frequency range
-Optimized geometry phase plug
-Copper inductance ring for extended HF response
-Aluminum rear cover.

Introduction:
We are a PA speaker factory of more than 13 years in Panyu,Guangzhou,China,occupying 2000 square meters with 3 production lines.We make Pro audio speakers from small sizes upto 24 inch.

R& D Capacity:
In the R&D, Hipower's experienced engineers and technicians carry out researches on new materials.state-of-art components and advacned product designs with the help of an anechoic chamber,test instruments and simulation sofwares.

Markets:
Ever since 2003, we have been exporting to many countries, including Southeast Asia, Europe, North Ameria and South America.

Speaker's Details:

General Specifications
Nominal Diameter	38/1.5	mm/inch
Rated Impedance	8	ohm
Nominal Power handling	90	Watts
Program Power	180	Watts
Sensitivity(lw/lm)	108	dB
Frequency Range	700-18k	Hz
Minimum Impedance(Zmin)	8	ohm
Voice Coil Diameter	75/3	mm/inch
Voice Coil Material	Edgewound Aluminum
Voice Coil Winding Former	Kapton
Phase Plug Material	Composite
Flux Density	1.5	T
Magnet Material/Mass	Ceramic/1.63	kg

Mounting Information
Overall Diameter	169	mm
Overall Depth	63.5	mm
Net Weight	5.5	kg
4xM6 holes,90°on 101.6mm diametermm

Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.

Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.

In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.

Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.

We are looking forward to establishing long-term relationships with you.
