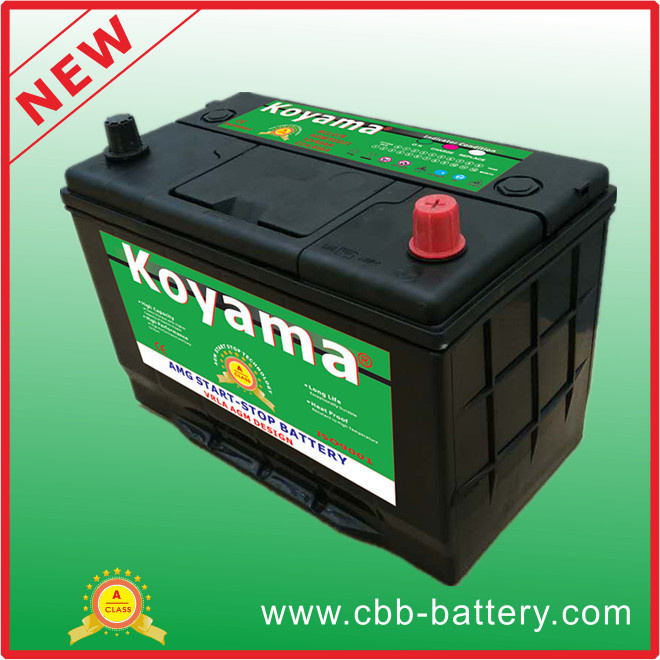

High CCA AGM start-stop battery for vehicle 95D31R-MF
Excellent 12V Sealed AGM start stop auto car battery 80ah
High performance MF AGM start-stop car battery BCI27
12V 80ah AGM start-stop battery for vehicle 95D31RAGM START-STOP BATTERYGeneral Features
DescriptionStart-Stop systems automatically shut down and restart the engine to reduce the amount of time it's idling, therefore cutting down on fuel consumption and emissions. The majority of manufacturers' choose to fit KOYAMA® batteries in their Start-Stop vehicles rolling off the production line.
When a vehicle comes to a stop at a red light, for example, and is put into neutral, the system switches off the engine, reducing fuel consumption and CO2 emissions. Start-Stop batteries must have sufficient energy to restart the engine. When the driver presses down on the clutch pedal ready to pull away, or releases the brake pedal in an automatic vehicle, the engine automatically restarts. Having a reliable battery to create and store energy is crucial for Start-Stop vehicles.
95D31R / BCI 27start-stop battery for auto/car/vehicle/automobile
Nominal Voltage: 12V
Nominal capacity: 80Ah
CCA-18 Celsius degree: 650A
Reserved Capacity: 190 minutes
Dimension: 304*175*200*220mm
Layout: 0
Terminal: A
Approx.:20.4kgs | EN & DIN Number | Capacity | R.C. | CCA | Dimensions (mm) | Layout | Termi. | Weight |
| C20(Ah) | (min.) | (EN) | T | W | H | TH | (Kgs) |
| BCI 27 (AGM-SSL5) | 80 | 190 | 650 | 304 | 175 | 200 | 220 | 0 | A |
20.4
|
Technology FocusIn response to Co2 reduction targets set by EU that require engine to be shut off instead of
idling while the vehicle is stooped , nearly all vehicle manufactures launch start-stop platforms in
Europe automotive battery.
Requirements
Battery is required to start engine more frequently and provide energy for device support while
"stop" mode battery is integrated within a sophisticated energy and battery management system
Battery Technology
Advance AGM technology for : super high power and cold cranking ampere; very good charging
acceptance performance; much longer cycle life compared to normal flooded car batteries.
Typical Applications1.Automotive
2. Stereo Systems
3.Boats& RVS
4.Hydraulic Lifts
5.Winches
6.On-board ElectronicsCertification:
ISO9001: 2000, ISO14001, CE, UL, etc
| KOYAMA | BCI | Voltage | C20 | RC | CCA | Maximum Overall Dimensions | Terminal | Approx |
| TYPE | Number | (V) | (AH) | (min) | @0ºF/-18ºC | mm (inches) | Type | Weight |
| | | | | | (A) | L | W | H | TH | | Kg(lbs) |
| AGM-SSL2 | 47 | 12 | 55 | 100 | 450 | 242(9.5) | 175(7) | 190(7.5) | 190(7.5) | A | 14 (41.4) |
| AGM-SSL3 | 48 | 12 | 66 | 120 | 510 | 278(11) | 175(7) | 190(7.5) | 190(7.5) | A | 15.7 (34.5) |
| AGM-SSL5 | 49 | 12 | 88 | 160 | 680 | 353(14) | 175(7) | 190(7.5) | 190(7.5) | A | 20.3 (44.6) |
| AGM-SSD31 | 27 | 12 | 80 | 190 | 650 | 304(11.97) | 175(7) | 200(7.87) | 220(8.66) | A | 20.4(44.88) |
| AGM-SSD31R | 27R | 12 | 80 | 190 | 650 | 304(11.97) | 175(7) | 200(7.87) | 220(8.66) | A | 20.4(44.88) |
Payment terms:
1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash
Trade terms: ex works or Fob Guangzhou/Shenzhen
Package details:
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.
Delivery time :
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.
Minimum order quantity:
1. if battery is smaller than 17ah,MOQ would be 200-1000pcs as per actual battery size if battery is bigger than 17ah, MOQ would be 50-200pcs as per actual battery size
2. if order is big quantity or 1*20'fcl load , the price would be much competitive
Koyama® NP Series batteries are the culmination of over three decades of battery manufacturing experience, offering:
§ High energy density
§ Sealed leak proof construction
§ Excellent performance in either float or cyclic applications
§ Maintenance free
§ Rechargeable, lead acid battery
§ Long service life
Koyama®brand NP Series batteries, the original and only true NP product, are the sought after power source for:
§ Security and alarm systems
§ CCTV's
§ UPS systems
§ Emergency energy lighting systems
§ OEM electrical equipment
§ Electronic applications
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, ROHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer's expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Certificate
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
