HEAVY DUTY TRUCK
Driving superior precision and performance
for nearly 100 years. THE TAPERED BEARINGS THAT OEMS PREFERIKC BOWER® products are backed with the most stringent quality standards in the industry. All of our unique solutions and proprietary technologies are fueled by our dedication to R&D and supported by our record of high customer satisfaction. For these reasons, many OEMs specify IKC BOWER bearings for their trucks. CASE-HARDENED, LONGER LASTINGCase carburizing is a heat treatment that leaves higher carbon content on the outer surface of the steel product, allowing the core to remain soft and durable. All IKC BOWER tapered roller bearings feature case-carburized rolling elements that greatly increase durability and extend life. As a result, you increase maintenance intervals and reduce downtime. PRODUCT SOLUTIONS FOR THE HEAVY DUTY TRUCK AFTERMARKETIKC BOWER products can be found in various heavy duty truck applications including Heavy Duty truck wheel ends to Heavy Duty truck differentials. IKC BOWER supports the heavy duty truck aftermarket with the following products: Bearing Products - Wheel End Sets
- Clutch Pilot Bearings
Kit Products |

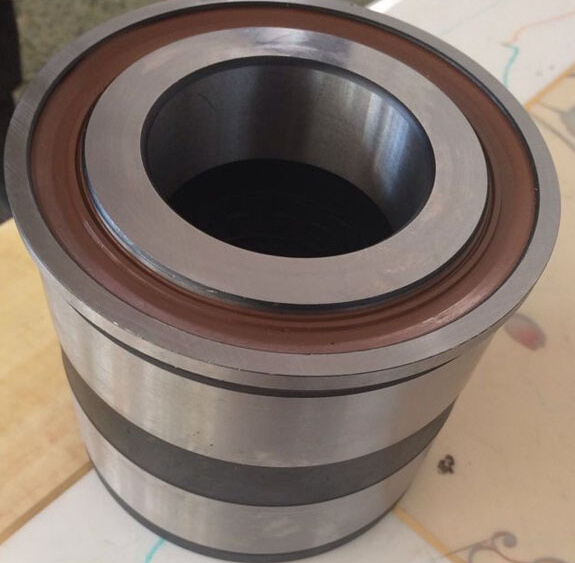

SINOTRUK HOWO truck 30222 AZ190003326067 heavy-duty truck spare parts auto parts rear wheel hub inner bearing truck parts
1, HOWO A7 front bearing
2, mack truck bearings
3, dump truck bearing
4, truck wheel bearing
5, faw truck bearing

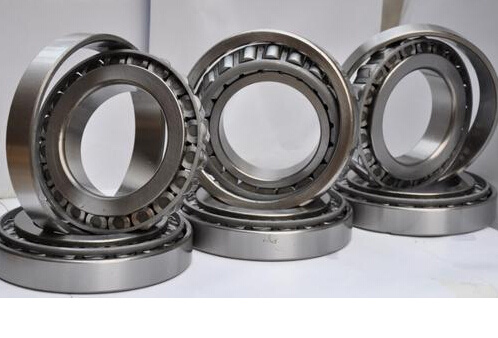

Taper roller bearing have inner and outer ring raceways and tapered rollers arranged in between.
Conical surface of the projection lines of all are the same point on the bearing axis together.
Tapered roller bearing is mainly exposed to the radial diameter, axial load. Load carrying capacity depends
On the angle of the outer ring raceway, the greater the angle the greater the carrying capacity.
Metric series:
30202, 30203, 30204, 30205, 30206, 30207, 30208, 30209, 30210, 30211, 30212, 30213, 30214, 30215,
30303, 30304, 30305, 30306, 30307, 30308, 30309, 30310, 30311, 30312, 30313, 30314, 30315, 30316,
Inch series:
LM, HM, JL, JHM, NA, LL, -D -AB, ect
567178/10, 329013A/Q, 18690/20, LM11749/10, LM11949/10, L45449/10,
LM12749/10, LM48548/10, JLM104945/10, 4T-1988/22, 25678CA/Y32011
11590/20, A5069/A5144, A2047/A2126, 603049/12, 88048/10, 802048/11
LM67048/10, R25/26, TZED045-1, LM11749/10, LM11949/10, LM12749/10, LM12749/11, LM44643/10, LM67048/10, LM48548/10 and L44649/10 and so on.
II. Applications:
Foxklift; Automobiles; Heavy trucks; Planetary; Gearbox, Speed reducers, Grabs; Pulleys; Agricultural machinery; Machine tools; Motors; Lathe; Construction machines; Railway vehicles; Industrial sewing machine; Textile machinery; Electric tools; General machinery; Washers; Vacuum cleaners; Turbine-generator
| Tapered Roller Bearing |
| Model No.: | Metric: 30200, 30300, 31300, 31000, 32200, 32300, 33000, 33200 series (Inch: JL, JLMS, LS, LM, LMS, MS, HMS series) | Material: | GCr15 |
| Brand name: | IKC | Ball Size | 20mm-190mm | Outside diameter | 40mm-320mm |
| Clearance: | C0; C2; C3; C4; C5 | Precision rating: | P0; P6; P5 | Vibration rating: | Z1; Z2; Z3 |
| Load Direction: | radial load and one way axial load | Cage: | Steel cage; nylon cage; brass cage | Certifications: | ISO: 2008; SGS |
| Sales Type | RS, 2RS, R2, Z, 2Z, 2RZ etc | Price | FOB, CIF, CNF, EXW, etc | Supply ability / sets: | 8000 0000 sets/year |
| Delivery date: | Within 10-15days Normally / as Requested | Port of loading: | Qingdao/ Ningbo | Place of origin: | Shangdong (China, mainland) |
| Applications: | Car front; Differential and pinion construction of the conveyor roller; Spindle; Trailer wheels; Larger load car; Industrial Equipment Construction; Aviation; Power transmission; Heavy industry; Spindle; Gear unit; Car axle; Transmission. |
| Advantage: | High speed, Less coefficient of friction(COF), High precision, Low noise, Low cost, Large loading capacity |
| Package: | Single box + outer carton + pallets; Tube package + middle box + outer carton + pallets; Export StandardIndustrial Package; or according to customer' s special requirements |
| Payment terms: | 30% prepayment, the balance will be arranged before delivery; T/T, L/C; western union; paypal; or other negotiable. |
The series of tapered roller bearings 30200 series, 30300 series, 32200 series, 32300 series, 32000 series, 33000 series, 32900 series
| Dimension(mm) | Rated Load(N) | Model Number | Weight(kg) | | d | D | T | B | C | r1 | r2 | Cr | Cor | | 65 | 90 | 17 | 17 | 14 | 1 | 1 | 49000 | 86500 | 32913 | 0.323 | | 100 | 23 | 23 | 17.5 | 1.5 | 1.5 | 86500 | 132000 | 32013X | 0.646 | | 100 | 27 | 27 | 21 | 1.5 | 1.5 | 97500 | 156000 | 33013 | 0.76 | | 110 | 34 | 34 | 26.5 | 1.5 | 1.5 | 148000 | 218000 | 33113 | 1.32 | | 120 | 24.75 | 23 | 20 | 2 | 1.5 | 122000 | 151000 | 30213 | 1.18 | | 120 | 32.75 | 31 | 27 | 2 | 1.5 | 157000 | 202000 | 32213 | 1.55 | | 120 | 41 | 41 | 32 | 2 | 1.5 | 202000 | 282000 | 33213 | 2.04 | | 140 | 36 | 33 | 23 | 3 | 2.5 | 173000 | 205000 | 30313DJ | 2.43 | | 140 | 36 | 33 | 28 | 3 | 2.5 | 200000 | 233000 | 30313 | 2.51 | | 140 | 51 | 48 | 39 | 3 | 2.5 | 267000 | 340000 | 32313 | 3.6 | | 70 | 100 | 20 | 20 | 16 | 1 | 1 | 70000 | 113000 | 32914 | 0.494 | | 110 | 25 | 25 | 19 | 1.5 | 1.5 | 404000 | 158000 | 32014XJ | 0.869 | | 110 | 31 | 31 | 25.5 | 1.5 | 1.5 | 127000 | 204000 | 33014 | 1.11 | | 120 | 37 | 37 | 29 | 2 | 1.5 | 117000 | 262000 | 33114 | 1.71 | | 125 | 26.25 | 24 | 21 | 2 | 1.5 | 132000 | 163000 | 30214 | 1.3 | | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 157000 | 205000 | 32214 | 1.66 | | 125 | 41 | 41 | 32 | 2 | 1.5 | 209000 | 299000 | 33214 | 2.15 | | 140 | 39 | 35.5 | 27 | 3 | 3 | 177000 | 229000 | T7FC070 | 2.55 | | 150 | 38 | 35 | 25 | 3 | 2.5 | 192000 | 229000 | 30314DJ | 2.94 | | 150 | 38 | 35 | 30 | 3 | 2.5 | 227000 | 268000 | 30314 | 3.03 | | 150 | 54 | 51 | 42 | 3 | 2.5 | 300000 | 390000 | 32314 | 4.35 | | 75 | 105 | 20 | 20 | 16 | 1 | 1 | 72500 | 120000 | 32915 | 0.53 | | 115 | 25 | 25 | 19 | 1.5 | 1.5 | 109000 | 171000 | 32015X | 0.925 | | 115 | 31 | 31 | 25.5 | 1.5 | 1.5 | 133000 | 220000 | 33015 | 1.18 | | 125 | 37 | 37 | 29 | 2 | 1.5 | 182000 | 275000 | 33115 | 1.8 | | 130 | 27.25 | 25 | 22 | 2 | 1.5 | 143000 | 182000 | 30215 | 1.43 | | 130 | 33.25 | 31 | 27 | 2 | 1.5 | 165000 | 219000 | 32215 | 1.72 | | 130 | 41 | 41 | 31 | 2 | 1.5 | 215000 | 315000 | 33215 | 2.25 | | 160 | 40 | 37 | 26 | 3 | 2.5 | 211000 | 251000 | 30315DJ | 3.47 | | 160 | 40 | 37 | 31 | 3 | 2.5 | 253000 | 300000 | 30315 | 3.63 | | 160 | 58 | 55 | 43 | 3 | 2.5 | 310000 | 420000 | 32315CA | 5.3 | | 160 | 58 | 55 | 45 | 3 | 2.5 | 340000 | 445000 | 32315 | 5.31 |
| 60series: | 6000-6220 sizes (2RS ZZ LU NR) | | 62series: | 6200-6220 sizes (2RS ZZ LU NR) | | 63series: | 6300-6320 sizes (2RS ZZ LU NR) | | 64series: | 6400-6420 sizes (2RS ZZ LU NR) | | 68series: | 6800-6820 sizes (2RS ZZ LU NR) | | 69series: | 6900-6920 sizes (2RS ZZ LU NR) | | 16000series: | 16001-1620 (2RS ZZ LU NR) | | Non-standard ball bearings | 60/22 60/28 60/32 62/22 62/28 62/32 63/22 63/28 63/32 (2RS ZZ LU NR) 98305 and 98205 According to the customer need long wide high dimensions. |
|
| Bearing No | Boundary dimensions (mm) | Weight (kg) |
| d | D | T |
| 32004 | 20 | 42 | 15 | 0.96 |
| 32005 | 25 | 47 | 15 | 0.115 |
| 32006 | 30 | 55 | 17 | 0.172 |
| 32007 | 35 | 62 | 18 | 0.227 |
| 32008 | 40 | 68 | 19 | 0.77 |
| 32009 | 45 | 75 | 20 | 0.329 |
| 32010 | 50 | 80 | 20 | 0.365 |
| 32011 | 55 | 90 | 23 | 0.55 |
| 32012 | 60 | 95 | 23 | 0.586 |
| 32013 | 65 | 100 | 23 | 0.627 |
| 32014 | 70 | 110 | 25 | 0.842 |
| 32015 | 75 | 115 | 25 | 0.887 |
| 32016 | 80 | 125 | 29 | 1.27 |
| 32017 | 85 | 130 | 29 | 1.33 |
| 32018 | 90 | 140 | 32 | 1.73 |
| 32019 | 95 | 145 | 32 | 1.8 |
| 32020 | 100 | 150 | 32 | 1.87 |
| 32021 | 105 | 160 | 35 | 2.38 |
| 32022 | 110 | 170 | 38 | 3.05 |
| 32024 | 120 | 180 | 38 | 3.2
|
