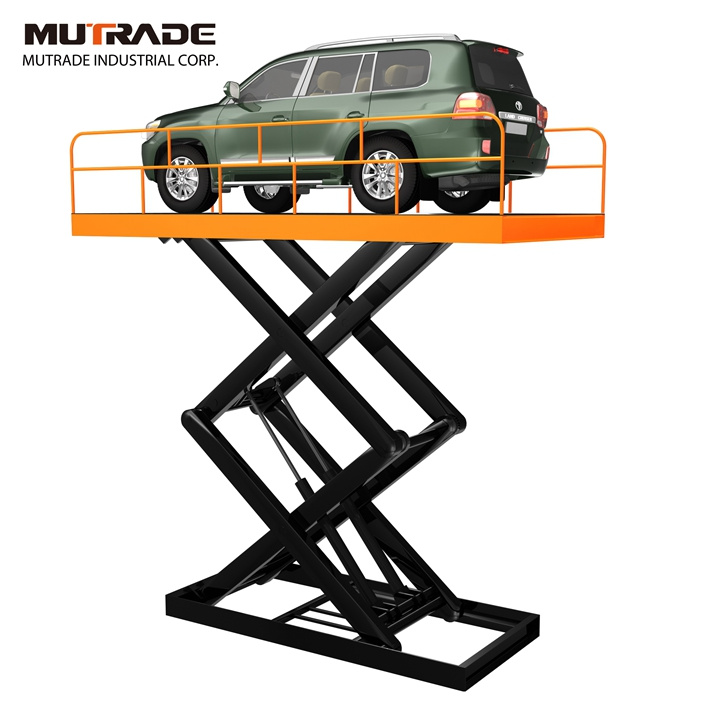

VRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving car from one floor to another; it is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size!
-S-VRC is a kind of car or goods lift, and industry use vertical table lift
-A foundation pit is needed for S-VRC
-The ground will be _at after S-VRC descend to bottom position
-Hydraulic cylinder direct drive system
-Double cylinder design
-High precision and stable hydraulic drive system
-Automatic shut-off if operator releases the button switch
-Small space occupation
-Pre-assembled structure makes easier installation
-Remote control is optional
-Double levels of platforms are available to have more parking
-Top quality diamond steel plate
-Hydraulic overloading protection available
General Parts1. Carriage
2. Transparent oil tank
3. Oil drip tray (optional)
4. Galvanized cover plate
5. Electric box
6. Rubber wheel protector (optional)
7. Key switch & emergency stop button
8. Dynamic lock
9. Front & Back footage
10. Rubber wheel protector (optional)
Product Specification
| Model | S-VRC |
| Lifting capacity | 2,000-10,000 kg*customized |
| Lifting height | 2,000-10,000mm*customized |
| platform width | 2000mm-5000mm*customized |
| Platform length | 2000mm-6000mm*customized |
| Platform material | Diamond steel sheet (standard) / 4mm Aluminum steel sheet (optional) |
| No. of level | according to your requirement |
| Drive mode | Hydraulic |
| Operation | button switch (standard) / remote controller (optional) |
| Power pack | 4 kw hydraulic power pump |
| Lifting speed | 4m/min |
| Finishing | Paint spray |
| Color | according to your requirement |
Safety Features
| Name | Safety Feature |
| Limited switch | Stop the upper car collide the ceiling |
| Emergency stop button | Operate the button to stop |
| Buzzer | Bright during operation |
| Guide rail | Four rails in the four corners to guide the operation |
| Relief valve | prevent overloading |
| 24V DC | Safety operation of button |
| Double braided steel mesh around the lift | Prevent persons from falling into the pit or lower platform during the lift moves up and down |
| Safety fence on platform | Protect driver to walk out of platform safety |
| Anti-falling | electromagnet (optional) |
| Photocell sensor | Avoid car over length or accidently entrance of person & car |

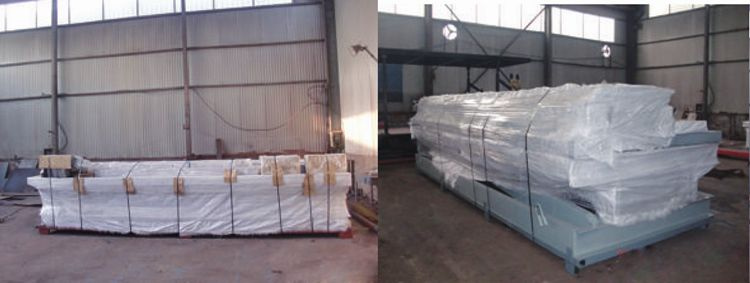

Packing & Delivery
At MUTRADE, we offer professional steel frame packaging for easy and stable container load. The main structure of S-VRC has be pre-assembled in our plant, and one package will contain all the parts.
Q&A
1. Is this product can be used indoor or outdoor?
S-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the pit dimensions needed for S-VRC?
The dimensions of pit depends on platform size and lifting height, our technical department will provide you
the professional drawing to guide your excavation.
3. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better
water-proof and looking.
4. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less
than one movement per hour), a single phase power supply can be used, otherwise it may lead to motor
burnt out.
5. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure
happens often in your city.
6. What is the warranty?
It's fve years for main structure and one year for moving parts.
7. What is the production time?
It's 30 days after prepayment and fnal drawing confrmed.
8. What is the shipping size? Is LCL acceptable, or it must be FCL?
As S-VRC is a fully customized product, the shipping size depends on the specifcations you need.
As the structure of S-VRC is pre-assembled, the package will take most space of container, LCL cannot be used.
20 feet or 40 feet container is necessary as per the platform length.
Our Services:
1. Three years guarantee for the whole machine and ten years for main structure.
2. Calling door to door service
3. Friendly English software, user manual or detailed drawing/CD.
4. To meet different user purposes, we provide customized service. Lifting capacity, lifting height, dimension of platform, color and so on is necessary. But, only quantities of order are available
