FW-558 Woven
clutch facing, high copper quality, suitable for the heavy duty trucks, excellent quality and suitable price.
We have clutch facing toolings diameters from 160mm to 440mm, full range of dimension to meet different vehicles application, the
clutch facing materials include glass fiber, copper wire covered yarn, high copper, aramid fiber, strong twisting yarn, appearance following Raybestos and Sachs etc. Different quality catagories making our products suitable for different areas, we have customers from all over the world, from Africa, India, South America, Europe and the US.
In 2008, we invested new automatic weaving machines, and since then, the production efficiency has been greatly improved. The current maximal monthly clutch facing production reaches 400, 000 PCS, and we are adding more labors and press machines to satisfy the continuously increasing order demands.
Due to the fact that global markets are requiring more non-asbestos materials, the clutch facing we produce are almost all non-asbestos quality, we have full range of quality categories that making our products suitable for North American market, European and the South East Asia. Non-asbestos facing is more flexible, and no harmful for the environments, and our clutch facing are becoming more and more popular among our customers.
One of our regular
non-asbestos clutch facing may reach the following standard:

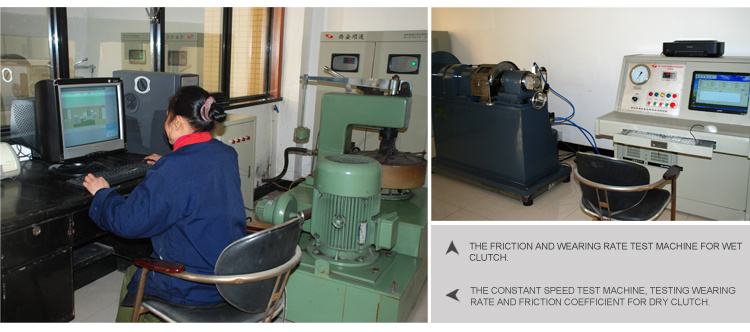

1) Wear and friction property: Following GB/T 5764-1998 national standard;
Friction coefficient: 0.32-0.55(average)
Wearing rate: 0.15-0.35(average).
2) Theoretical density: 2.0 g/cm3, actual density of our products: 1.87 g/cm3(average).
3) Hardness of our product: HRL 50.
4) Burst strength: Φ 200x130x3.5mm over 12000r/Min. (FW-78, FW-548).
5) Bend test: Over 40 N/mm2.
| FRICWEL CLUTCH FACING TOOLINGS |
| | | | | | | | |
| None. | O.D*I.D
(MM*MM) | Thickness
(MM) | Grooves | None. | O.D*I.D
(MM*MM) | Thickness
(MM) | Grooves |
| 1 | 141*82 | 3.2-5.0 | None | 105 | 275*175 | 3.2-5.0 | 24*3 |
| 2 | 145*105 | 3.2-5.0 | None | 106 | 275*180 | 3.2-5.0 | 24 |
| 3 | 150*110 | 3.2-5.0 | 16 | 107 | 275*180 | 3.2-5.0 | 18 |
| 4 | 160*110 | 3.2-5.0 | 16 | 108 | 280*165 | 3.2-5.0 | 24 |
| 5 | 160*110 | 3.2-5.0 | 18 | 109 | 280*165 | 3.2-5.0 | 18 |
| 6 | 165*90 | 3.2-5.0 | 18 | 110 | 280*170 | 3.2-5.0 | 18 |
| 7 | 170*110 | 3.2-5.0 | 16 | 111 | 284*165 | 3.2-5.0 | 24 |
| 8 | 170*110 | 3.2-5.0 | 18 | 112 | 295*170 | 3.2-5.0 | 18 |
| 9 | 170*120 | 3.2-5.0 | 18 | 113 | 295*175 | 3.2-5.0 | None |
| 10 | 178*100 | 3.2-5.0 | 6 | 114 | 295*176 | 3.2-5.0 | 18 |
| 11 | 180*100 | 3.2-5.0 | 18 | 115 | 295*180 | 3.2-5.0 | 18 |
| 12 | 180*125 | 3.2-5.0 | 18 | 116 | 300*165 | 3.2-5.0 | 18 |
| 13 | 180*125 | 3.2-5.0 | 16 | 117 | 300*180 | 3.2-5.0 | 18 |
| 14 | 181*124 | 3.2-5.0 | None | 118 | 300*180 | 3.2-5.0 | 16 |
| 15 | 181.5*127 | 3.2-5.0 | 24 | 119 | 300*190 | 3.2-5.0 | 20 |
| 16 | 186*126 | 3.2-5.0 | 18 | 120 | 300*190 | 3.2-5.0 | 16 |
| 17 | 190*132 | 3.2-5.0 | None | 121 | 300*190 | 3.2-5.0 | 18 |
| 18 | 190*132 | 3.2-5.0 | 16*2 | 122 | 302*165 | 3.2-5.0 | 18 |
| 19 | 190*132 | 3.2-5.0 | 24 | 123 | 302*190 | 3.2-5.0 | 24 |
| 20 | 190*135 | 3.2-5.0 | 24 | 124 | 302*196 | 3.2-5.0 | None |
| 21 | 190*135 | 3.2-5.0 | None | 125 | 302*197 | 3.2-5.0 | 20 |
| 22 | 193*120 | 3.2-5.0 | None | 126 | 304*177 | 3.2-5.0 | 18 |
| 23 | 193*149 | 3.2-5.0 | None | 127 | 304*189 | 3.2-5.0 | 20 |
| 24 | 195*125 | 3.2-5.0 | None | 128 | 310*175 | 3.2-5.0 | None |
| 25 | 200*130 | 3.2-5.0 | 24 | 129 | 310*175 | 3.2-5.0 | 18 |
| 26 | 200*135 | 3.2-5.0 | 24 | 130 | 310*180 | 3.2-5.0 | 18 |
| 27 | 200*137 | 3.2-5.0 | 24 | 131 | 310*190 | 3.2-5.0 | 20 |
| 28 | 200*140 | 3.2-5.0 | None | 132 | 315*155 | 3.2-5.0 | 18 |
| 29 | 200*140 | 3.2-5.0 | 16*2 | 133 | 325*180 | 3.2-5.0 | 20 |
| 30 | 200*140 | 3.2-5.0 | 24 | 134 | 325*185 | 3.2-5.0 | 20 |
| 31 | 202*145 | 3.2-5.0 | 24 | 135 | 325*190 | 3.2-5.0 | 20 |
| 32 | 203*136 | 3.2-5.0 | 24 | 136 | 325*190 | 3.2-5.0 | 18 |
| 33 | 210*134 | 3.2-5.0 | None | 137 | 325*200 | 3.2-5.0 | 18 |
| 34 | 210*135 | 3.2-5.0 | None | 138 | 325*200 | 3.2-5.0 | None |
| 35 | 210*141 | 3.2-5.0 | 24 | 139 | 325*200 | 3.2-5.0 | 20 |
| 36 | 212*130 | 3.2-5.0 | 16 | 140 | 325*210 | 3.2-5.0 | 18 |
| 37 | 212*140 | 3.2-5.0 | 24*2 | 141 | 326*180 | 3.2-5.0 | 18 |
| 38 | 212*140 | 3.2-5.0 | 24 | 142 | 327*190 | 3.2-5.0 | 24 |
| 39 | 212*150 | 3.2-5.0 | 16*2 | 143 | 327*200 | 3.2-5.0 | 20 |
| 40 | 215*130 | 3.2-5.0 | 24 | 144 | 330*185 | 3.2-5.0 | 12 |
| 41 | 215*140 | 3.2-5.0 | 16 | 145 | 340*175 | 3.2-5.0 | 18 |
| 42 | 215*143 | 3.2-5.0 | 24 | 146 | 350*187 | 3.2-5.0 | 6 |
| 43 | 215*145 | 3.2-5.0 | 24 | 147 | 350*187 | 3.2-5.0 | 16 |
| 44 | 215*145 | 3.2-5.0 | 16 | 148 | 350*195 | 3.2-5.0 | 16 |
| 45 | 215*146 | 3.2-5.0 | None | 149 | 350*200 | 3.2-5.0 | 16 |
| 46 | 215*149 | 3.2-5.0 | None | 150 | 350*200 | 3.2-5.0 | 24 |
| 47 | 215*150 | 3.2-5.0 | 24 | 151 | 350*216 | 3.2-5.0 | 16 |
| 48 | 215*150 | 3.2-5.0 | None | 152 | 350*217 | 3.2-5.0 | 24 |
| 49 | 215*155 | 3.2-5.0 | 27 | 153 | 350*220 | 3.2-5.0 | 18 |
| 50 | 220*146 | 3.2-5.0 | 24 | 154 | 352*216 | 3.2-5.0 | 22 |
| 51 | 224*150 | 3.2-5.0 | 24 | 155 | 352*216 | 3.2-5.0 | 18 |
| 52 | 225*130 | 3.2-5.0 | 24 | 156 | 352*217 | 3.2-5.0 | 22 |
| 53 | 225*140 | 3.2-5.0 | 24 | 157 | 380*200 sector | 4.1 | 92° |
| 54 | 225*150 | 3.2-5.0 | 18 | 158 | 380*200 sector | 4.4 | 92° |
| 55 | 225*150 | 3.2-5.0 | None | 159 | 380*190 | 3.2-5.0 | 16 |
| 56 | 225*150 | 3.2-5.0 | 24 | 160 | 380*200 | 3.2-5.0 | 24 |
| 57 | 225*150 | 3.2-5.0 | 16*2 | 161 | 380*200 | 3.2-5.0 | 18 |
| 58 | 225*150 | 3.2-5.0 | 32*2 | 162 | 380*200 | 3.2-5.0 | 16 |
| 59 | 225*155 | 3.2-5.0 | 24 | 163 | 380*206 | 3.2-5.0 | 18 |
| 60 | 228*150 | 3.2-5.0 | 24 | 164 | 380*220 | 3.2-5.0 | 18 |
| 61 | 228*150 | 3.2-5.0 | 16 | 165 | 380*240 | 3.2-5.0 | 18 |
| 62 | 228*150 | 3.2-5.0 | None | 166 | 380*250 | 3.2-5.0 | None |
| 63 | 228*155 | 3.2-5.0 | 16 | 167 | 380*250 | 3.2-5.0 | 24 |
| 64 | 228*155 | 3.2-5.0 | 24 | 168 | 380*250 | 3.2-5.0 | 16 |
| 65 | 230*150 | 3.2-5.0 | 24 | 169 | 395*200 | 3.2-5.0 | 16 |
| 66 | 232*155 | 3.2-5.0 | 24 | 170 | 395*215 | 3.2-5.0 | 18 |
| 67 | 232*155 | 3.2-5.0 | 8 | 171 | 395*215 | 3.2-5.0 | 24 |
| 68 | 234*175 | 3.2-5.0 | None | 172 | 395*215 | 3.2-5.0 | 16 |
| 69 | 234*80 | 3.2-5.0 | None | 173 | 395*220 | 3.2-5.0 | 16 |
| 70 | 235*155 | 3.2-5.0 | 18 | 174 | 395*230 | 3.2-5.0 | 18 |
| 71 | 236*150 | 3.2-5.0 | 24*2 | 175 | 395*230 | 3.2-5.0 | 16 |
| 72 | 236*150 | 3.2-5.0 | 30*2 | 176 | 395*241 | 3.2-5.0 | 24 |
| 73 | 236*150 | 3.2-5.0 | 18 | 177 | 400*220 | 3.2-5.0 | None |
| 74 | 240*150 | 3.2-5.0 | 24 | 178 | 400*220 | 3.2-5.0 | 18 |
| 75 | 240*152 | 3.2-5.0 | 16 | 179 | 400*230 | 3.2-5.0 | 18 |
| 76 | 240*155 | 3.2-5.0 | 24 | 180 | 400*247 | 3.2-5.0 | None |
| 77 | 240*160 | 3.2-5.0 | 18 | 181 | 400*249 | 3.2-5.0 | 13 |
| 78 | 240*160 | 3.2-5.0 | 24 | 182 | 400*250 | 3.2-5.0 | 18 |
| 79 | 240*160 | 3.2-5.0 | 27 | 183 | 400*250 | 3.2-5.0 | None |
| 80 | 240*162 | 3.2-5.0 | None | 184 | 400*250 | 3.2-5.0 | 24 |
| 81 | 242*160 | 3.2-5.0 | 24 | 185 | 405*230 | 3.2-5.0 | 18 |
| 82 | 242*162 | 3.2-5.0 | None | 186 | 410*250 | 3.2-5.0 | 18 |
| 83 | 242*185 | 3.2-5.0 | None | 187 | 410*260 | 3.2-5.0 | 18 |
| 84 | 243*190 | 3.2-5.0 | None | 188 | 420*220 | 3.2-5.0 | 24 |
| 85 | 250*155 | 3.2-5.0 | 27 | 189 | 420*220 | 3.2-5.0 | 18 |
| 86 | 250*160 | 3.2-5.0 | 24 | 190 | 420*220 | 3.2-5.0 | None |
| 87 | 250*165 | 3.2-5.0 | None | 191 | 420*225 | 3.2-5.0 | 18 |
| 88 | 250*165 | 3.2-5.0 | 24 | 192 | 420*220 | 3.6 | 106° |
| 89 | 251*185 | 3.2-5.0 | 10 | 193 | 420*220 | 3.9 | 106° |
| 90 | 254*150 | 3.2-5.0 | 18 | 194 | 420*220 | 4.6 | 92° |
| 91 | 254*150 | 3.2-5.0 | 6*2 | 195 | 430*250 | 4.5 | 96° |
| 92 | 254*150 | 3.2-5.0 | 24 | 196 | 430*230 | 4.4 | 92° |
| 93 | 254*155 | 3.2-5.0 | 24 | 197 | 430*220 | 3.2-5.0 | 24 |
| 94 | 255*160 | 3.2-5.0 | 18 | 198 | 430*230 | 3.2-5.0 | 20 |
| 95 | 255*160 | 3.2-5.0 | 27 | 199 | 430*230 | 3.2-5.0 | 18 |
| 96 | 255*170 | 3.2-5.0 | 18 | 200 | 430*235 | 3.2-5.0 | 18 |
| 97 | 260*167 | 3.2-5.0 | 30 | 201 | 430*240 | 3.2-5.0 | 18 |
| 98 | 260*170 | 3.2-5.0 | 18 | 202 | 430*242 | 3.2-5.0 | None |
| 99 | 260*170 | 3.2-5.0 | 27 | 203 | 430*242 | 3.2-5.0 | 18 |
| 100 | 267*167 | 3.2-5.0 | 30 | 204 | 430*242 | 3.2-5.0 | 24 |
| 101 | 270*165 | 3.2-5.0 | 18 | 205 | 430*250 | 3.2-5.0 | 18 |
| 102 | 270*170 | 3.2-5.0 | 18 | 206 | 430*252 | 3.2-5.0 | 18 |
| 103 | 275*170 | 3.2-5.0 | 18 | 207 | 430*261 | 3.2-5.0 | None |
| 104 | 275*175 | 3.2-5.0 | 18 | 208 | 440*280 | 3.2-5.0 | 18 |
Founded in the year 1992, our factory is one of the oldest friction material manufacturer in China, our primary business starts from 1000 square meters workshop, the products were mainly clutch buttons and clutch facing products.

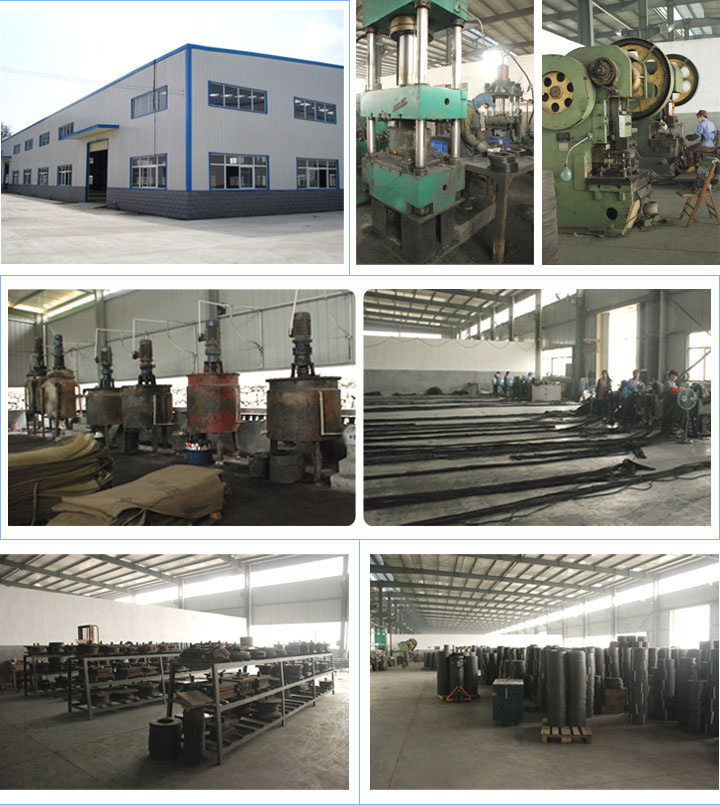

In 1999, we moved to the new 4, 000 square meters workshop, with the quick development of our clutch facing business, we were certified the quality authentication of ISO9001 in year 2000, and in 2008, our new 24, 000 square meters workshop was finished, we became one professional manufacturer of clutch facing and clutch button in China. Our current friction products production is around 100 tons per month, products includes all kinds of products like clutch facings, clutch button, friction disc, clutch disc, brake pads.
The Fricwel brand was created with the purpose to combine all our friction materials lines. We welcome our customers to visit our factory for friction materials business. To learn more about our products linesl, please visit the online brochure or E-mail us for the latest catalouge.
