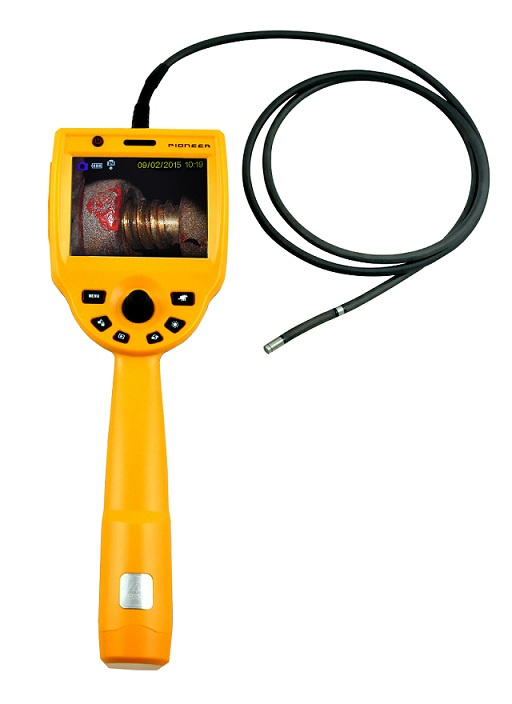

HD Video Industrial Endoscope
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
P50-620 |
| Certification: |
RoHS |
| Update Method: |
by Hard Disk |
Product Description
P50 series endoscopes are manufactured by COANTEC, after several years research and development with great concentration. As a Combination of domestic and foreign advanced technology, Pioneer endoscope broke through the technical limits from traditional endoscope industry.Application Field P50 series borescopes are widely applied in the field of special equipment inspection, electric power, car manufacturing, automotive aftermarket, petrochemical, machinery, aviation, pipeline container checking, security checking, etc.Features:
* Patent and certification----- We have obtained several national invention patents and material testing reports from China Quality Inspection Institution, secure and reliable
* Light and portable----- Host is only 1.5 kg, easy to carry. Ergonomic and integrated design.
* Sturdy quality---Waterproof, oilproof and one meter fall prevention.Titanium alloy protective camera case, wear-resistant

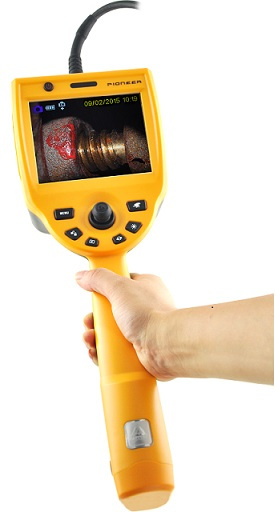

Integrated hand-held design, light and portable.

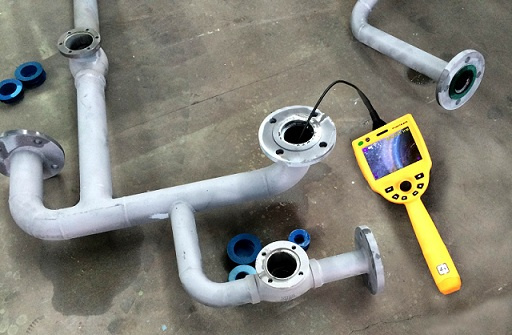

Testing scene
Parameters| Lens Diameter | Φ6/Φ8 |
| Pixles | 450,000 pixels |
| Image Resolution | Maximum:2048*1536/ three options |
| Bend control | Motor-driven 360° bend |
| Step Regulation | Step regulation between high-speed and low-speed bend |
| Angle of Field | 70°/90°/110°(optional) |
| Depth of Field | 10~100mm/50mm~∞/5mm~∞(optional) |
| Light Type | Rear-mounted LED(≥3w hour) |
| Illumination | 100,000lx at a maximum,adjustable |
| Bright Adjustment | Manual, six levels |
| White Balance | Auto white balance |
| LCD Monitor | Highlight 5.0" LCD screen |
| Language | Chines,English and other five languages |
| Photo/Video | JPG image,AVI video |
| Memory | standard configuration:8G SD card, support 32G at maximum |
| Data I / O port | USB port, TV out video signal output, support display connection
|
Insert Tube Length
| 2.1m/3.1m/4.1m/5.1m/8.1m/10.1m,accept customization |
| Bending Angle | ≥150° |
Insert Tube Material
| quadruple-wall braided tubes of Tungsten alloy wire |
| Construction Material | Dropping-resisting alloy outer case |
| Camera Material | Titanium alloy |
| Protecting Device of Durability | Protecting device joint the host and wear-resisting tube length: ≥120mm |
| Button | Setting,playback,photo/video,speed adjust,bright adjust |
| Light Add | Flashlight add on the host |
Waterproof
| Probe, line and the objective lens can withstand IP67 waterproof ( with inspection reports) |
| Working Time | ≥3 hours |
| Host Weight | ≤1.5kg(with batteries) |
| Power Supply | Rechargeable lithium battery |
| Voltage | DC12V, 1A maximum current |
| Warranty | Free charge for one year, life - long maintenance |
Operating Environment:| Host System Operating Temperature | -10 ° C ~ 50 ° C, the LCD screen to be preheated below 0° C |
| Video Probe Temperature | --20 ° C ~ 70 ° C, 0 ° C the following should be reduced steering operations |
| Storage Temperature | -20°C~60°C |
| Relative Humidity | Up to 90%, non-condensing |

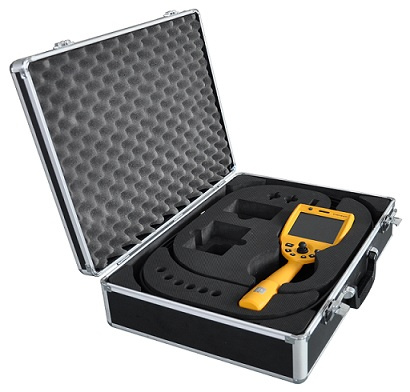

Standard Configurationinstrument Case, P50 borescope,2 sets of batteries,card reader,8G SD card,adaptor,TV-out line,users manual,certificate,warranty card.Optional:customized clamp ,shaped tube,leather bag,remote image receiver
