Harley Motorcycle Diagnostic Tool

Descriptions:

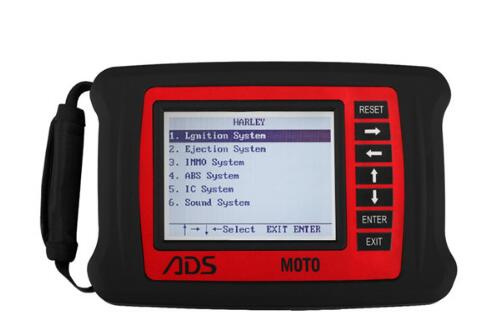

MOTO-H Motorcycle Diagnostic Scanner is the latest Product of Harley Motorcycle Diagnostic Scanners.
It can scan all kinds of Harley Motorcycle types from 2000 to 2013 and also test relative systems such as Ignition system, injection system, IMMO, ABS, Instrument System and Audio System etc. Diagnostic includes reading ECU version, reading fault code, clearing fault code and reading data stream so on.

Features:
1. Scan all Harley Motorcycle models;
2. Support IS09141-2, J1979, ISO14230, KWP2000, ISO15765 and J1939 communication protocol;
3. Support diagnostic enter from ECU selection and motorcycle model selection;
4. Read ECU version, fault codes and historical fault code. Clear fault codes, read dynamic data stream and component test etc.
5. Online update.

Specifications:
Mainframe I/O: Standard serial / parallel port
Mainframe power supply: DC12V
Mainframe power: About 9W
Display screen: Large LCD with touch screen, with backlight
Ambient temperature: 0-50° C
Relative humidity: <90%
Package: 40*11*29 COM
Weight: 4.5KG

Package:
1 PC X MOTO-H Interface
1 PC X USB Test Line
1 PC X Battery Clip
1 PC X Power Line
1 PC X 4pin Harley Test cable
1 PC X Test Main Line
1 PC X User' Manual
