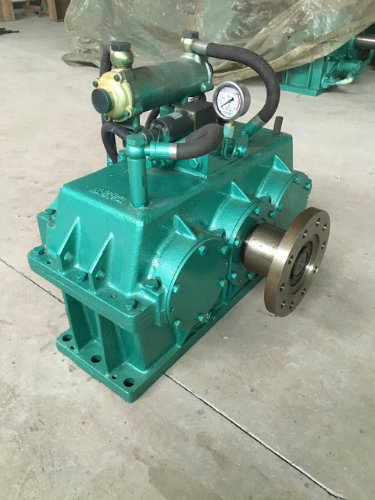

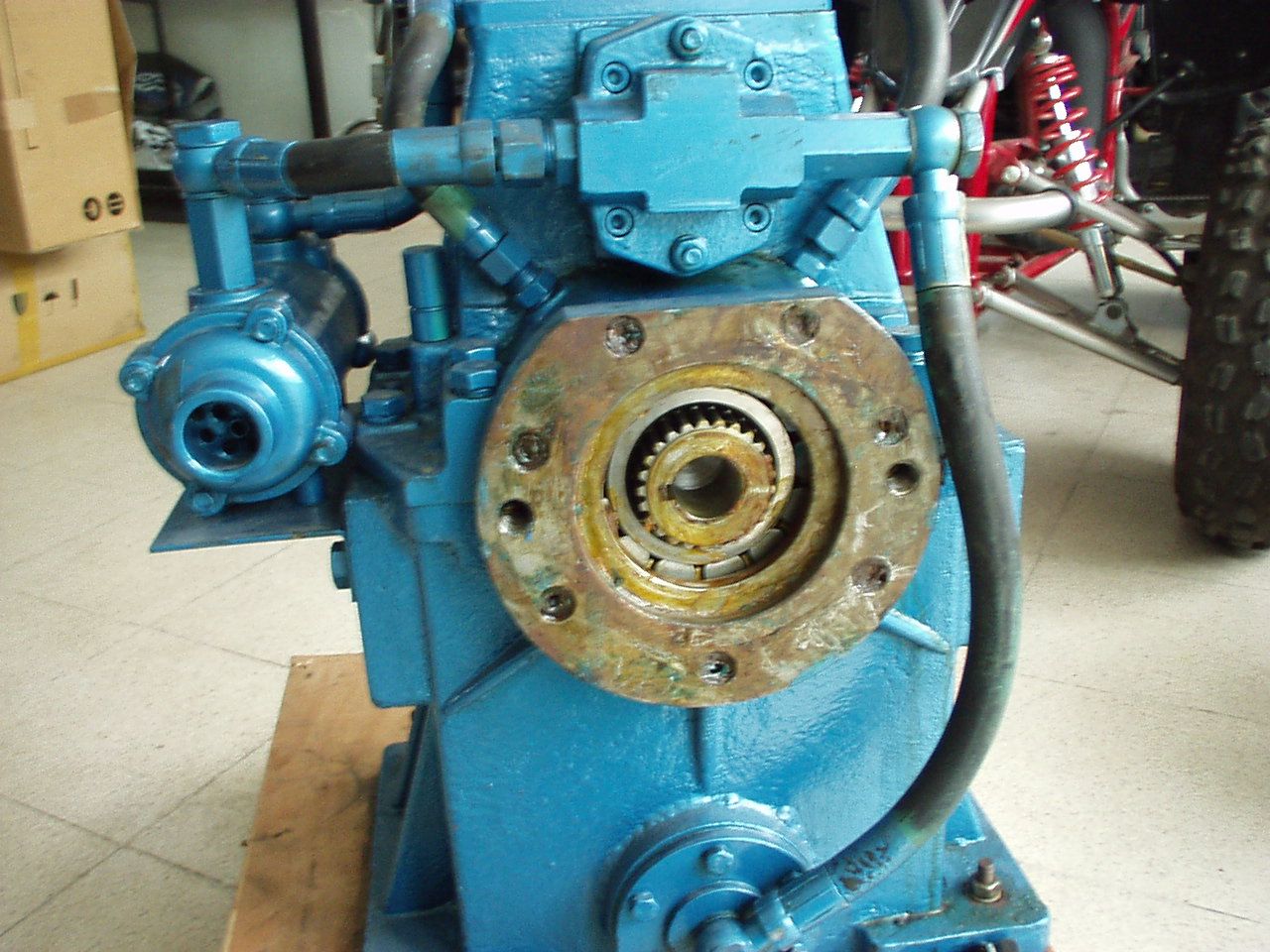

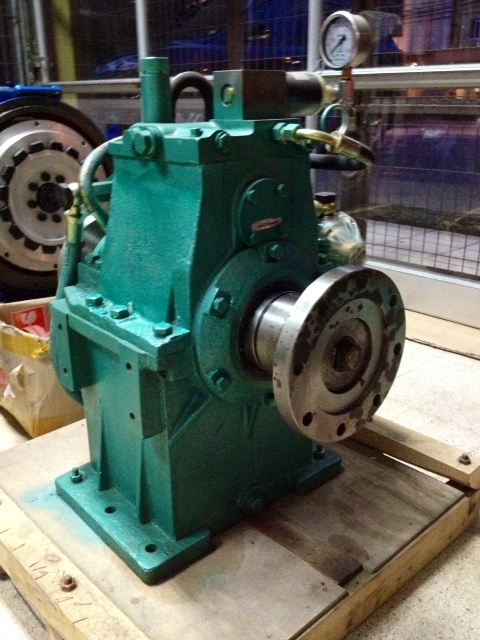

One new type transferable device which is made of hydraulic clutch and double branch decelerate speed box. Complete component, fine design, stable quality has the functions of the clutch, speed acceleration and deceleration. Using horizontal different center double branch transferable motion way, suitable for long mechanical connection and no-continous working clutch.
CHAPTER1. PRODUCTS SELECTION When matched with diesel engine or electrical motor, selection of GCL clutches for driving working machines with middle impact load (e.g.mud pumps, winches, propellers, etc.) is made acc. to following diagram (Fig.1). Determine the point of speed (r/min) on transverse coordinate and the point of rated power (KW or PS) on longitudinal coordinate, and line through the points as two lines which parallel the coordinate axes, the intersect point of two lines is fallen on the shadow area, that diagram related to the clutch type is your direct choice.
CHAPTER2. TECHNICAL SPECIFICATIONS OF GCLCLUTCH | Type | GCL30 | GCL100 | GCL250
GCL320 | GCL600 |
| Input coupling type (SAE) | Toothed rubber block coupling | XL75 or
selcted by user |
| Input speed (r/min) | Slow type (S) | 7500~1500 | 750~1500 | 500~1000 | 750~1000 |
| Fast type (F) | 1500~2500 | 1500~2500 | 1000~2500 | >1000~1800 |
| Rated transmission capacity (N·m) | 300 | 1000 | 2500
3200 | 6000 |
| Control type | Mechanic-Hydraulic | Working oil pressure 1.1~1.3MPa. Lub oil pressure 0.05~0.3MPa. |
| Electric-Hydraulic | DC24V, Pressures are same as above |
| Mechanical efficiency (%) | ≥97 | ≥98 | ≥98 | ≥98 |
| Engaging time (s) | ≤5 |
| Oil grade | SD/CC40 or SD/CC30 |
| Oil capacity (L) | 3 | 6.2 | 10 | 28 |
| Cooling water consumption (L/min) | 15 | 20 | 20 | 50 |
| Max oil temperature (ºC) | 80ºC |
| Overhaul (hrs) | ~10000 |
| Net weitht (kg) | ~100 | ~156 | ~210 | ~450 |
| Overall dimensions (L×W×H) (mm) | 345×310×455 | 570×420×535 | 554×425×635 | 746×560×688 |
