| Prod Model: |
GTA4294 |
| Part No.: |
471087-0001, 702015-0001, 714788-0001, 714788-1, 7 |
| OEM No.: |
23528065, 23522188 |
| Material: |
K18 Shaft and Wheel |
| Chra: |
712402-0007 |
| Displacement: |
12.7L, 12700 CCM, 6 Cylinders |
| Balancing: |
High Speed Balancing Tested |
| Engine: |
Series 60 |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
CE |
| Brand: |
Refone |
| Application: |
Detroit |
Product Description

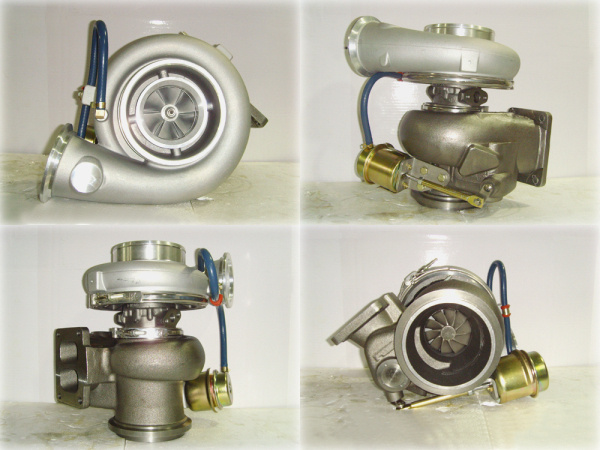

GTA4294BNS 714788 714788-0001 Turbocharger for Detroit Diesel Truck 12.7L
Details:| Part Number | 714788-5001S |
| Previous Version | 471087-0001, 702015-0001, 714788-0001, 714788-1, 70201-1, 471987-1 |
| OE number | 23528065, 23522188, 806220, 23522189, R23528065, R23522188, 806220, R23522189 |
| Description | Heavy Truck Engine |
| CHRA | 712402-0007 (712402-5007S, 23528070) |
| Turbo Model | GTA4294BNS, K31 |
| Engine | Series 60 |
| Engine Manufacturer | Detroit |
| Displacement | 12.7L, 12700 ccm, 6 Cylinders |
| RPM Max | 2100 |
| Fuel | Diesel |
| KW | 430/500 HP |
| Bearing Housing | |
| Turbine Wheel | |
| Comp. Wheel | 712340-0002/712340-0009 |
| Back plate | 712339-0001 |
| Heat shield Number | 410366-0007 |
| Repair Kit | 709153-0001 |
| Turbine Housing | 451824-0001 |
| Compressor Cover | 447844-0013 |
| Turbine Housing + Actuator | 451911-0027 |
| Gasket oil inlet | 210019 (129119) |
| Gasket (oil outlet) | 210060 (2475013) |
Applications
Detroit Diesel Truck with Series 60 Engine
DDC-MTU Industrial with Series 60 Engine
Packing Images

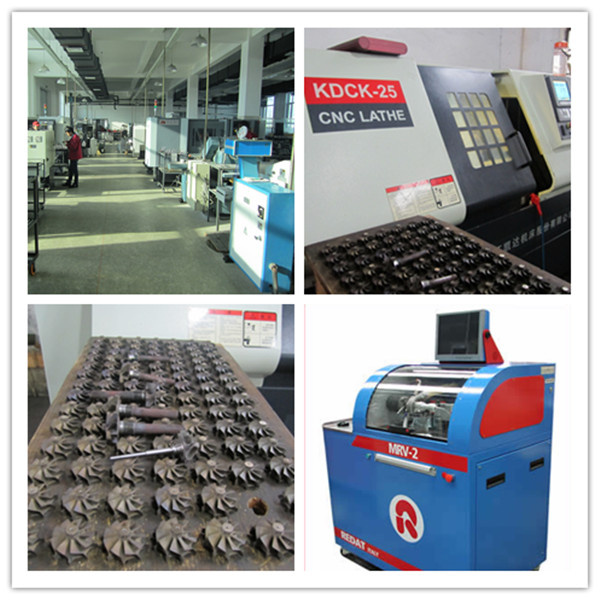

Factory Images
Delivery Ways
Company Description
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us?
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Contact us now!
Ms Ivy Lee
Tel: +86 551 65617152
www.cnrefone.com
HOT Models of holset turbocharger | Turbo Model | Part NO. | OEM | Application |
|
| H1C | 3802289(3522778) | 3522778 | Cummins 6BT,6T590--5.9L |
| H1C | 3528238 | | Cummins 6BTAA,5.9L |
| H1C | 3802290 | | Cummins 4BT--3.9L |
| H1C | 3522900,3535381/3522900/3520030/171270/
3528743/3528744,
3535422/3/4/5/6/7,3536677 | 3802290 | Cummins 4BT---3.9L |
| H2C | 3524695/
TA4505 466200-0015 | 5.000.249.763(C290)/
5.000.681.178(R300)/
5.000.686.372(R330) | RENAULT
Engine:MIDR-062045,9840CC,6L,320HP |
| H1E | Part No: 3802348 | 3528237 | Cummins Intercool,6BTAA--5.9L |
| H1E | 3524034/4035234 | 3527370(3802303) | Cummins 6CT---8.3L |
| HX30W | 4040382/4040353/4040383/
4045759/A3960907/A3592318 | A3592318 | Cummins 4BTAA |
| HX35W | 4050268 | 6BT | Cummins 6BT |
| HX35W |
3595279/3597180 | 504040250 | IVECO TECTOR /
EUROCARGO 150E28 |
| HX40 | 4032127 | 2C46-6K682-BA | Ford Otosan Truck |
| HX40W | 3538856 | 4090213 | Cummins 6CTA |
| HY55V | 4036283/4046943 4033101
3594725, 3597277, 4043380, 4046944, 3773772 | OE:504044516/504255233 | IVECO |
| HY55V | 4046945/3594712/3595671/3598515/
4036282/4038389/4042547/4043267 | OE:504000453/504004854/4031404 | iveco cursor |
| HE221W | 2835142 | 4043976/4955962 | Perkins Truck with Remus ISDE4 Engine |
| HE221W | 2835143/4043978 | 4956031 | Cummins Truck with ISDE4 Engine
|
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
