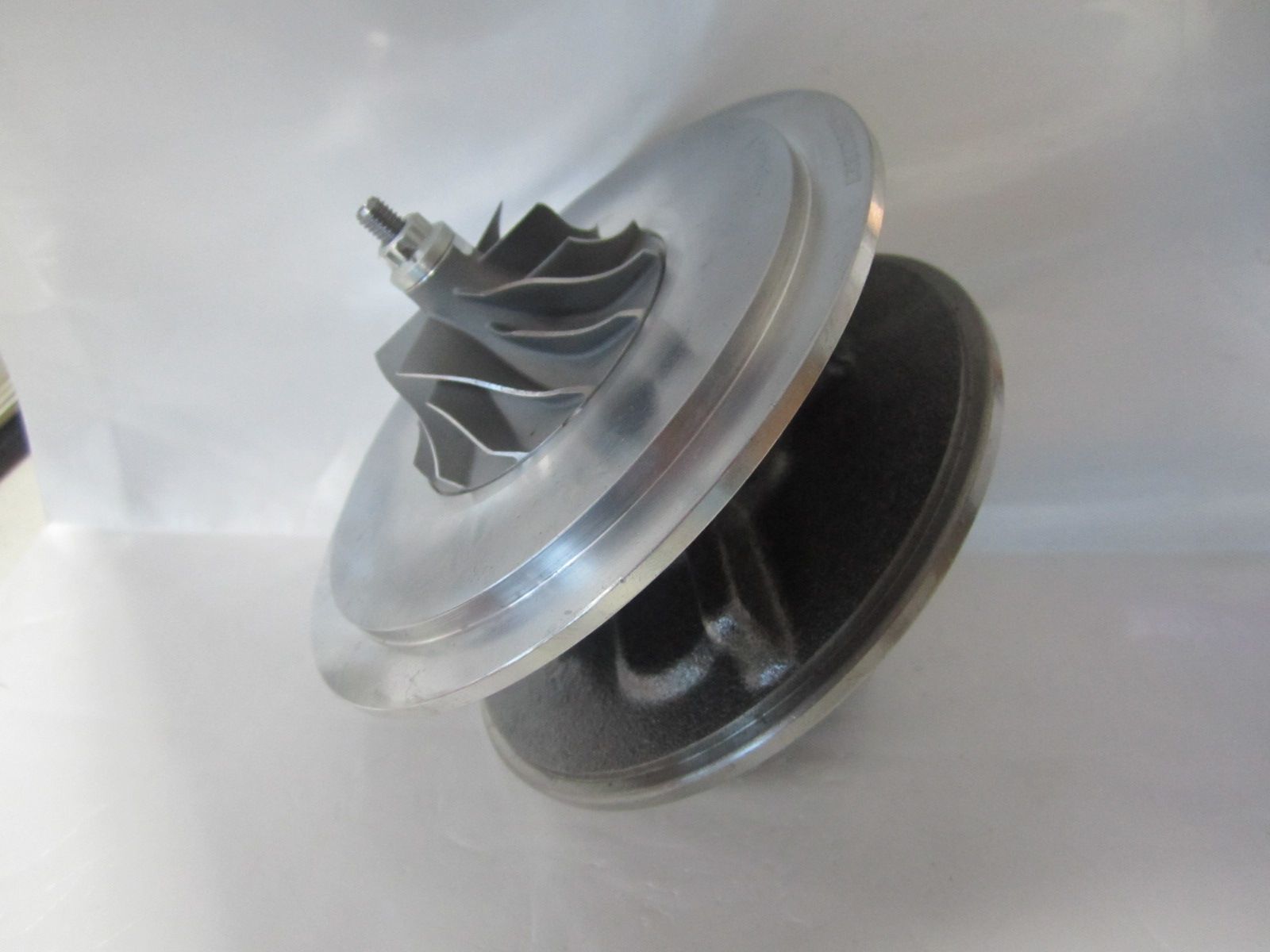

Gt2052V (S1) 454205-5006s Turbocharger Cartridge for Volkswagen Commercial Lt II Van with Tdi Engine

ΔGT2052V (S1) 454205-5006S turbocharger cartridge for Volkswagen Commercial LT II VAN with TDI Engine

Part Number	454205-5006S
Previous Version	454205-0001, 454205-0006, 454205-7, 454205-6
OE number	074145701DV248, 074145701D, 074145701DX, 074145701DV
Year	1999-06
Description	Commercial
Fitted To Model	LT II van
CHRA	434766-0024 (434766-5024S)
Turbo Model	GT2052V (S1)
Engine	TDI
Engine Manufacturer	VW
Displacement	2.5L, 2461 ccm, 5 Cylinders
KW	80/109 HP
RPM Max	3500
Fuel	Diesel
Angle α (compressor housing)	79
Angle β (turbine housing)	0
Bearing Housing	700967-0006
Turbine Wheel	434883-0033
Comp. Wheel	436322-0018/436131-0003, 436131-0021, 705878-0017
Back plate	701335-0006
Heat shield Number	443768-0003
Nozzle Ring Assembly	700968-0004
Turbine Housing	701542-0001
Compressor Cover	704647-0001
Turbine Housing AR	VNT1
Actuator	434855-0069
Settings waste gate (pressure)	0.040-0.120 bar
Settings Waste gate (lift shaft)	0.2 mm
Gasket (turbine inlet)	210586
Gasket (turbine outlet)	210227
Gasket (oil outlet)	210243
Manufacturer	Honeywell-Garrett

Applications
1999-06 Volkswagen Commercial LT II VAN with TDI Engine


Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
