| Part Number: |
452239 |
| OE Number: |
Pmf500040 Pmf100460 |
| MOQ: |
1PCS |
| Engine: |
Mdi 525 |
| Kw: |
90/136/122 |
| Displacement: |
2.5L, 2500 CCM, 5 Cylinders |
| Chra: |
433467-0017 |
| Body Material: |
Iron |
| Certification: |
CE |
| Type: |
Turbocharger |
Product Description

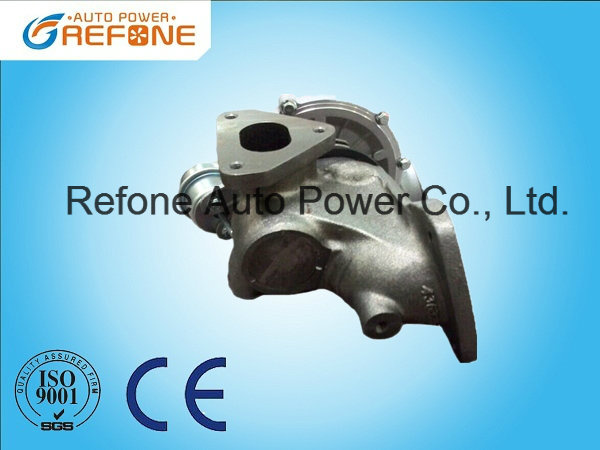

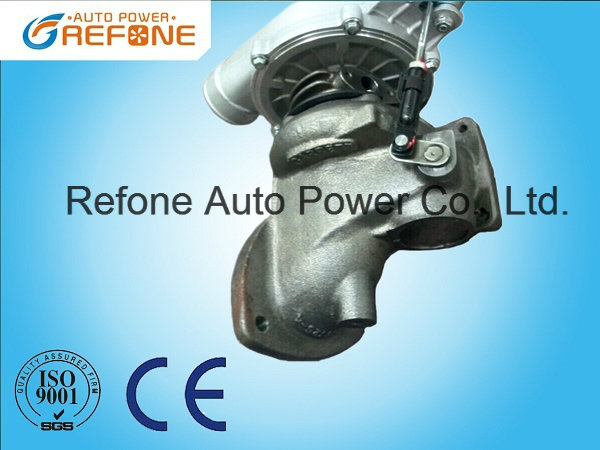

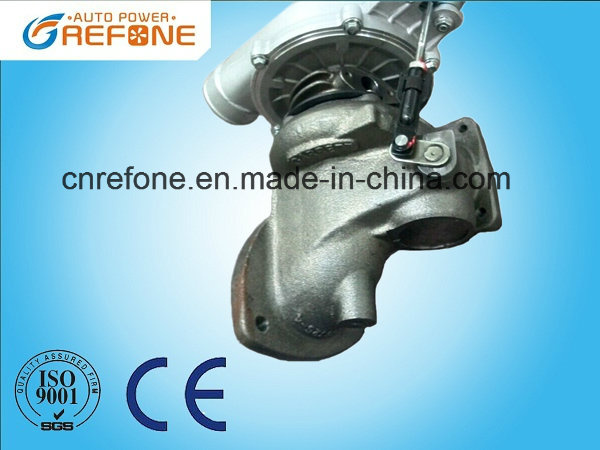

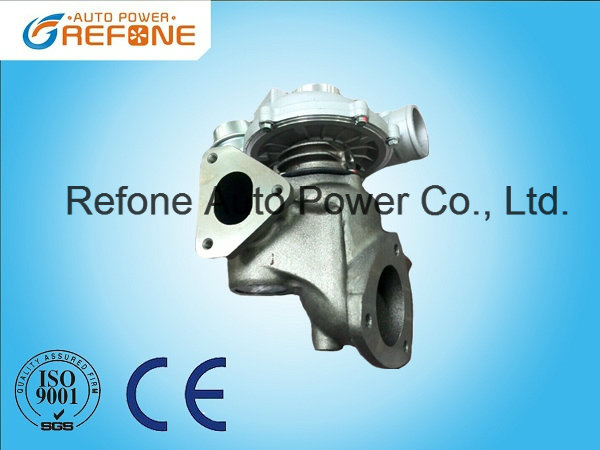

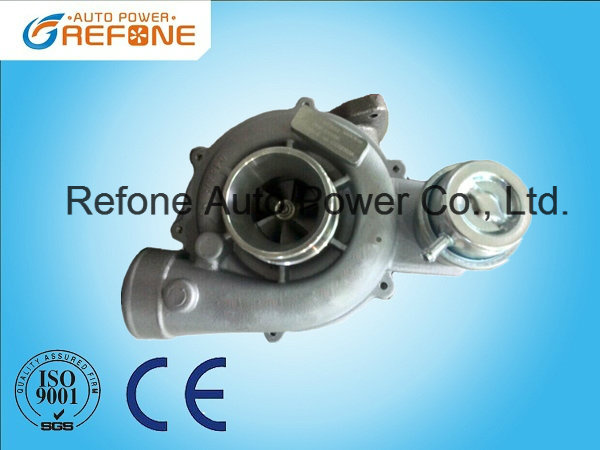

GT2052S Turbo 452239-0009 452239-0003/5/6/8 PMF500040 For Defender TD5, Discovery TD5, Rover 75
Product Description
| Part Number | 452239-5009S |
| Previous Version | 452239-0003, 452239-0005, 452239-0006, 452239-0008, 452239-0009, 452239-5006S, 452239-5008S, 452239-9 |
| OE number | PMF500040, PMF100460, PMF100410, LR005955, LR006595, LR017315 |
| Year | 1998-09 |
| Description | Defender TD5, Discovery TD5, Rover 75 |
| CHRA | 433467-0017 $399.00 NEW IN STOCK |
| Turbo Model | GT2052S |
| Engine | "L" series, MDI 525, |
| Engine Manufacturer | Land Rover |
| Displacement | 2.5L, 2500 ccm, 5 Cylinders |
| KW | 90/136/122 |
| RPM Max | 4200 |
| Fuel | Diesel |
| Angle a (compressor housing) | 346 |
| Angle (turbine housing) | 90 |
| Bearing housing | 713782-0003 |
| Turbine Wheel | 434715-0013 |
| Comp. Wheel | 451584-0007 |
| Back plate | 436466-0002 |
| Heat Shield | 434684-0001 |
| Repair Kit | 732252-0001 |
| Turbine Housing | 436173-0009 |
| Compressor Cover | 436468-0006 |
| Actuator | 434133-0046 |
| Turbine Housing AR | 0.46 |
| Settings Waste gate (pressure) | 1.260 - 1.310 bar |
| Settings Waste gate (lifting rod) | 1.00 mm |
| Gasket (turbine inlet) | 210332 |
| Gasket (turbine outlet) | 210333 |
| Gasket (oil outlet) | 210243 |
| 452239-0009 | Also directly replace 452239-0009 turbo and an alternative replacement for -0008, -5006S, -0005 and -0003 turbos |
| | |
Rover Built Engine. Not interchangeable with BMW unit
Applications
Land Rover Defender Td5 with "L" series - MDI 525 Engine
1998- Land-Rover Defender 2.5L TDI TD5 Engine MDI 525
98-2004 Discovery MDI 525 15P /16P 2 TD5 (Automatic) Engine
1999- Land-Rover Discovery II 2.5L TDI Engine Td5
2002- Land-Rover Discovery II 2.5L TD5 Engine MDI 525
Photos:
Δ REFONE GT2502V turbochargers
Hot Models
|
Part number
| OEM number | Application |
GT2052V
|
454205-5006S
454205-0001
454205-0006
|
074145701DV248
074145701D
074145701DX
074145701DV
| Volkswagen Commercial LT II VAN , TDI Engine |
| GT2052V |
724639-5006S
705954-0008
705954-0009
705954-0011
705954-0013
705954-0015
724639-0002
724639-0004
| 144112X900
14411VC100
144112X90A
14411VC100
1679410G01 | Nissan Patrol, Safari, Terrano II
Engine: 123ZD30ETi, ZD30ETi |
| GT2052V | 710415-5003S
710415-0001
710415-0003 |
77814359
7780199D
860049
116577814359
11657780199D
1165860049
7781434
7781435
11657781434
11657781435
7780199C
11657780199C
| BMW 525D (E39), M57D E39
Opel Omega B 2.5L, engine: Y25DT
|
| GT2052V |
700935-5003S
700935-0001
700935-0002
700935-0006
700935-0004
|
7785991B
7785993B
7785992
11657785991B
11657785993B
11657785992
7785991C03
11657785991C03
7785993C03
11657785993C03
11657785993
11657785991
| BMW X5 3.0 d (E53)
Engine : M57D E53 RH |
| GT2052V |
454135-5009S
454135-0001
454135-0002
454135-0006
454135-0009
454135-9009S
| 059145702D
059145701C
059145701G
059145701K | Audi A4 2.5L TDI (B5)
Audi A6 2.5L TDI (C5)
Audi A8 2.5 TDI (D2)
Skoda Superb I 2.5L TD
Volkswagen Passat B5 2.5L TDI
Volkswagen Passat B5 2.5L TDI
|
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
