Prod Model: |
GT1849V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
K18 Sharft and Wheel |
Part Number: |
717625-5001s |
OE Number: |
24445061, 860050, 860098 |
Parts Availability: |
All Available |
Aftre-Sale Service: |
Take Photos, Sending Back for Testing |
Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
Package: |
Mold Foam, Pallet |
Sample Order: |
Acceptable |
Balancing: |
High Speed Balancing Tested |
Quality Warranty: |
12 Months |
Body Material: |
Iron |
Certification: |
ISO9001 |
Type: |
Turbocharger |
Application: |
Opel |
Product Description

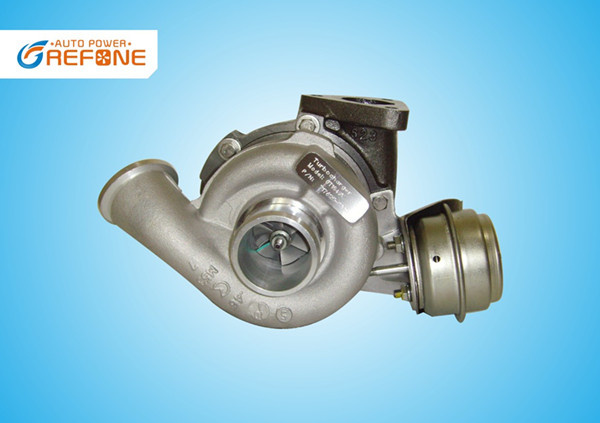

Gt1849V 717625-0001 717625-1 Diesel Engine Turbocharger for Opel Astra
Products Details:Part Number | 717625-5001S |
Previous Version | 717625-0001, 717625-1 |
OE Number | 24445061, 860050, 860098 |
Year | 2002- |
Description | Opel, Vauxhall Astra, Zafira, Vectra |
CHRA | 703890-0018 |
Turbo Model | GT1849V, GTA1849V |
Engine | Y22DTR |
Engine Manufacturer | Opel |
Displacement | 2.2L, 2200 ccm |
KW | 92 |
RPM Max | 4000 |
Fuel | Diesel |
Angle α (compressor housing) | 321.4 |
Angle β (turbine housing) | 300 |
Bearing Housing | 722282-0013 |
Turbine Wheel | 704580-0001 |
Comp. Wheel | 436132-0003 (replaces 436132-3/703925-3) |
Back plate | 700593-0006/703682-0045 (OD 99 mm/10 mm P/Ring) |
Heat shield Number | 433112-0001 |
Nozzle Ring Assembly | 704013-0011/704013-0013 |
Repair Kit | 732252-0001 |
Turbine Housing | 717624-0002 |
Compressor Cover | 703896-0003 |
Turbine Housing AR | VNT2 |
Actuator | 434855-0060 |
Settings Waste gate (pressure) | 0.197-0.203/0.530-0.570 bar |
Settings Waste gate (lift rod) | 0.5-4.0/0.2 mm |
Gasket (turbine inlet) | 210505 |
Gasket oil inlet | 210511 |
Gasket (oil outlet) | 210243 |
Manufacturer | Honeywell-Garrett |
Applications:2002- Opel Astra with Y22DTR Engine
2002- Opel Zafira with Y22DTR Engine
Products Pictures:Our Service
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Company Imformation
Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us
1. 1 Year quality warranty.
2.High speed balancing tested.
3.Meeting customers' needs.
4.Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
LAND ROVER | FREELANDER | 2000 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0001 | 7781450B | |
LAND ROVER | FREELANDER | 2000 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0002 | 77814759 | |
LAND ROVER | FREELANDER | 2000 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0003 | 77814769 | |
LAND ROVER | FREELANDER | 2006 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0004 | 7781450C | |
LAND ROVER | FREELANDER | 2006 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0005 | 7781475C | |
LAND ROVER | FREELANDER | 2006 | M47D | | 110 | 2.0/4 | D | GT1749V | 708366-0006 | LR018265 | |
MANUFACTURER | MODEL | YEAR | ENGINE | CODE | HP | CC | FUEL | MODEL | PART NUMBER | O.E.M. PART No. | ALT |
---|
