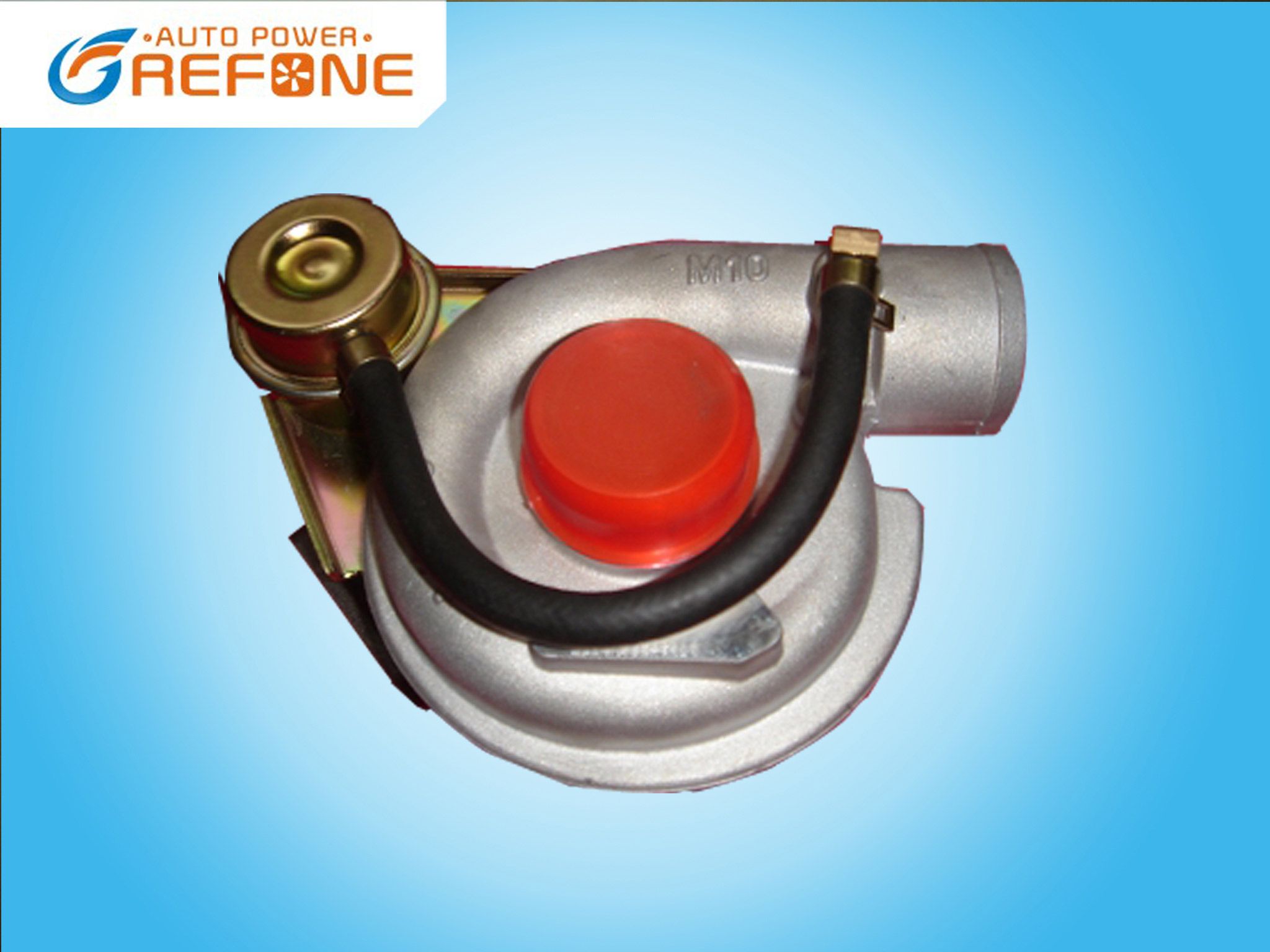

GT1752S 708163-5001S 99450703/99449170 Turbocharger
1.Production Description :
KW 90/122
RPM Max 3500
Fuel Diesel
Angle α (compressor housing) 345
Angle β (turbine housing) 357
Bearing Housing 49177-25420
Turbine Wheel 49135-30100
Comp. Wheel 49135-00015
Back plate 49135-00044
Heat shield Number 49170-19100
Repair Kit 49135-TFO35
Turbine Housing 49135-15000
Compressor Cover 49135-00080
Turbine Housing AR 6. 0
Actuator 49135-18801
Settings Wastegate (pressure) 1. 40 bar
Settings Wastegate (lift shaft) 1.95 mm
NOTE Intercooler
Replaced By 53149886446
2.Applications
96-05 Iveco-Sofim Daily 2.8L TD 8140.43.3700 Euro 2 Engine
3. Packing & Shipping
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
4. Company Information
Refone is a professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends
5. Our Service
Δ Fast response and good service
Δ Sample order acceptable
Δ ODM&OEM service available
Δ 1year warranty
Δ All turbochargers and chras performance balanced.
6. Contact Person:
Ms Gina Mu
Tel:+86 551 65617152
Fax:+86 551 65613152
7.We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
1)GT TA TB TO
2)K03 K04 K14 K16 K24 K26 K27 K29 K31 K33
3)BV43 KP35 KP39
4)TDO TFO CT
5)RHB RHC RHF RHG
6)H1C H2C H1E H2D HX HY
7)WH1C WH1E
8)HE HP 4LE 4LGZ S 3LM-319 J08C
9)HT12 HT18 PC200 SJ KTR
8.Related Products:
Model | Part No. | OEM NO. | Application |
GT1649V / GTB1649V | 757886-5003S, 757886-0003 | 2823127400, 28231-27400 | Hyundai Tucson 2.0 CRDi / Kia SPORTAGE CRDi Engine D4EA |
GT1852V | 709835-5002S | 6110960399/6110960799 | Mercedes-PKW E-Klasse 220 CDI (W210) |
GT1852V | 709836-0004 | A6110960899 | Mercedes Sprinter OM611 |
GT1852V | 717625-5001S/1 | 86005024445061 | Opel Astra G 2.2 DTI |
GT1852V | 7176265001S/1/2/5002S | 860055-24443096 860051-24445062 | Opel Signum 2.2 DTI |
GT1852V | 718089-5008S/5/6/5007S | 8200267138/7701475282 8200447624/7711134877 8200447624A | Renault Avantime 2.2 dCi |
GT1852V | 726698-0001/2/3/5003S 778794-0001 709836-0001/5004S | A6110960899 A6110961699 A6110961599 | Mercedes Sprinter I 211/311/411CDI OM611 109HP 00-06 |
GT2052V | 7246390002/5002S/5006S 705954-0009/0015/0017 | 14411-2X900 14411-VC100 | Nissan Terrano II 3.0L Di 229 |
GT2052V | 454135-0001/2//5006S/5009S/5010S | 059145701G/GZ/GV/C/CX/CV | Audi A4 2.5 TDI (B5) |
GT2052V | 454205-0006 | 074145701DV248 | VW LT II 2.5TDI |
GT2052V | 710415-0001/5003S | 11657781434/5 7781436 /7780199D | BMW 525 d (E39) |
GT2052S | 452301-0001 | 2674A326/391 | Perkins 4000 - T4.40(0.0) |
GT2052S | 703389-0001 | 28230-41450 | Hyundai Mighty Truck |
GT22 | 709838-5004/5S/3/1 | A6120960399 | Mercedes Sprinter I 216/316/416CDI |
GT2252 | 452187-0006 | 1441169T00 | BD-30Ti |
GT2252V | 454192-0001 | 074145703E | V.W. T4 Transporter 2.5L |
GT2556V | 454191-0001/0003/5012S/5015S | 11652248906/11652248907/11652247691 | BMW 530 d (E39) |
GT2256V | 704361-0004/5/5006S | 11652249950/11652248834 | 330 d (E46) |
GT2256V | 709838-0001/3/4/5005S | 05104006AAA6120960399 | BENZ,DODGESprinter |
GT2256V | 710811-5002S | 55191597 | ALFA ROMEO |
GT2256V | 751758-0001/5001S 707114-0001 | 5001855042/500379251 | Iveco Daily |
GT1749MV | GARRET | 755042-0002 | 55196858 | OPEL | Vectra | | |
GT1749MV | GARRET | 755373-0001 | | OPEL | Astra CDTI | | |
GT1749MV | GARRET | 766340-0001 | 55205483 | OPEL | ASTRA DTI | | |
GT1749MV | GARRET | 767835-0001 | 55205474 | FIAT/OPEL | | | |
GT1749V | GARRET | 454161-0001 | 028145702D | VW | Passat1.9 | TDI 110 | |
GT1749V | GARRET | 717858-0001/7 | 038145702E | VW | A4 TDI | PD UI 130HP | |
GT1749V | GARRET | 701855-0005 | 028145702PV500 | FORD | Galaxy Tdi 1.9L | TDI 110 | |
GT1749V | GARRET | 708639-0002 | 8200110519 | RENAULT | Laguna II | F9Q | |
GT1749V | GARRET | 713517-0012 | 1S4Q-6K682-AL | FORD | Focus 1.8L - DI D | TDCi | |
GT1749V | GARRET | 750431-0006/9/12 | 7787626F | BMW | 320 D - 4 cyl. - 2.0L - M47 TU - DI D | | |
GT1749V | GARRET | 454232-0001/3/4/5 | 038253019A | AUDI | A3 TDI/New Golf TDI | TDI 110 PD | |
GT1749V | GARRET | 712766-0001 | 46786078 | ALFA ROMEO | 145 JTD | M.724.19 (8 valve) | |
GT1749V | GARRET | 717478-0001/2/3 | 7787626F | BMW | 320d | M47TU | |
GT1749V | GARRET | 729853-0001 | 6280960699 | M-BENZ | S class (W220/163) | OM628 | |
GT1749V | GARRET | 713672-0002/3 | 038253019C | AUDI | A3 TDI | 1.9L | |
GT1749V | GARRET | 713672-0006 | 038253019C | AUDI | A3 TDI | 1.9L | |
GT1749V | GARRET | 713673-0002 | 038253019NV220 | AUDI | A3 TDI - 4 cyl. - 1.9L. 115HP. DI D | PD UI | |
GT1749V | GARRET | 454231-0001 | 028145702HV500 | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | | |
GT1749V | GARRET | 454231-0003 | 028145702HV500 | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | TDI 110 PD | |
GT1749V | GARRET | 721164-0003 | 17201-27030-A | TOYOTA | Estima | 2.0L | |
GT1749V | GARRET | 750030-0002 | 9654128780 | FORD | Focus,C-MAX,PG307 407 | | |
GT1749V | GARRET | 759688-0005/7 | 6460900480 | M-BENZ | Sprinter 2.2L,2005 | OM646 | |
GT1749V | GARRET | 714467-0008 | 2S7Q-6K682-AD | FORD | Transit V-184,2.0L,2002 | 125PS | |
GT1749V | GARRET | 753556-0002 | 9654919580 | PEUGEOT | 207 Hdi 136HP (05) 2.0L D | DW10BTED4S | |
GT1749V | GARRET | 729325-5003 | 070145701KV301 | VW | T5 BUS | | |
GT1749V | GARRET | 724930-0006 | 03G253014H | AUDI | A3 TDI - 4 cyl. - 2.0L DI D | | |
GT1749V | GARRET | 756047-0002 | 9658673480 | PEUGEOT | 207 Hdi 136HP (05) 2.0L D | DW10BTED4S | |
GT1749V | GARRET | 721021-0001 | 038253016G | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | PD UI | |
GTA1749V | GARRET | 765015-0004 | | RENAULT | Espace,laguna |
