| Prod Model: |
GT1749V(S1) |
| Fuel: |
Diesel |
| Chra: |
433395-0020 (433395-5020s, 433395-0040) (110201591 |
| Turbo OE Number: |
038253019c, 038253019CV500, 03G253016n |
| Displacement: |
1.9L, 1896 CCM, 4 Cyl |
| Kw: |
81/85/105 |
| Engine: |
Pd Ui, Alh, Ahf, Ajm, Auy |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
ISO9001 |
| Brand: |
Refone |
Product Description

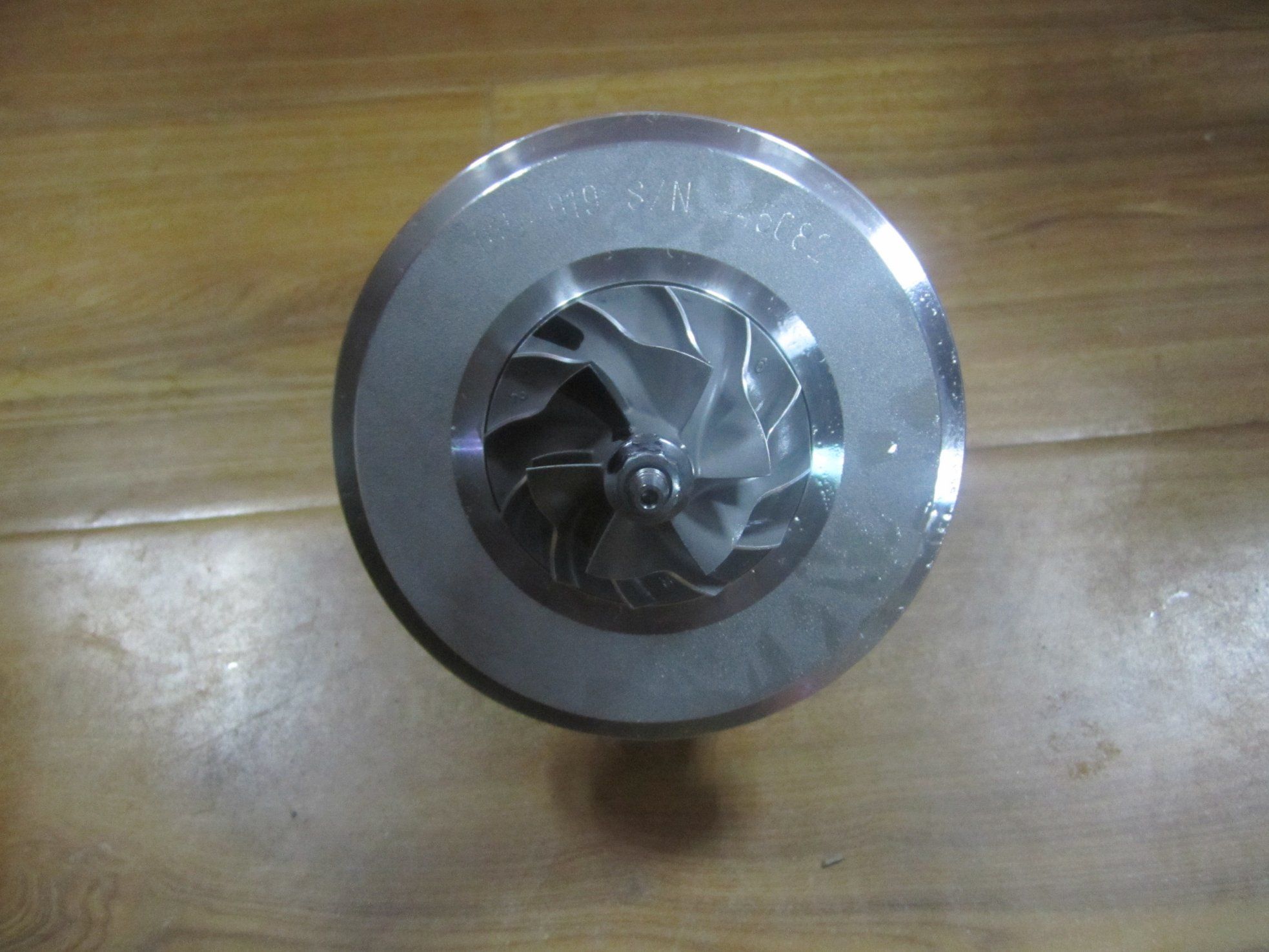

Δ GT1749V(S1) 713672-5006S turbocharger for PD UI, ALH, AHF, AJM, AUY
| Part Number | 713672-5006S |
| Previous Version | 713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S, , 713672-9006S, 713672-5005S, 713672-0002, 768329-5001S |
| OE number | 038253019C, 038253019CV500, 03G253016N, 038253019CV225 |
| Year | 2000-06 |
| Description | Audi A3, Seat Leon, Volkswagen Beetle, Golf IV |
| CHRA | 433395-0020 (433395-5020S, 433395-0040) (1102015919) |
| Turbo Model | GT1749V(S1) |
| Engine | PD UI, ALH, AHF, AJM, AUY |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 CYL |
| KW | 81/85/105 |
| RPM Max | 4000 |
| Angle α (compressor housing) | 177 |
| Angle β (turbine housing) | 90 |
| Bearing Housing | 433145-0005/722282-0002 (1102017450) |
| Turbine Wheel | 434533-0002/434533-0037/434533-0039 (1102017441, 1102017438)(Ind. 43. mm, Exd. 35.9 mm, Trm 69, 9 Blades) |
| Comp. Wheel | 434812-0001/434812-0002 (Ind. 49. mm, Exd. 32. mm, Trm 45, Extended back disc type 6 blades)(1102015400) |
| Back plate | 434813-0001/700593-0006/703682-0023/703682-0045 (1102015306) (1102015300) |
| Heat shield Number | 433112-0001 (1102015342) |
| Repair Kit | 732252-0001 (1102015756) |
| Thrust Kit | 732248-0003/732252-0001 |
| Nozzle Ring | 704013-0001 (1102017830) |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0015 |
| Settings Waste gate adjustment (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Settings Waste gate (pressure) | 0.135-0.215 bar |
| Settings Waste gate (lift shaft) | 0.2 mm |
| Gasket (turbine inlet) (outlet) | 210311 |
| Gasket (turbine inlet) (inlet) | 210293 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Applications
2000-06 Audi A3 TDI with PD UI Engine
2000-06 Seat Leon TDI S with PD UI Engine
2000-06 Volkswagen Golf TDI with PD UI Engine
1996-03 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1997-01 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1999-05 Seat Leon 1.9 TDI Engine ALH, AHF
1999-03 Seat Toledo II 1.9 TDI Engine ALH
1999-04 Seat Toledo II 1.9 TDI Engine AHF
1997-07 Skoda Octavia I 1.9 TDI Engine ALH, AHF
1998-04 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY
1998-04 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY
1997-03 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
