| Prod Model: |
GT1749V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
708366-5005s, 708366-0005 |
| OE Number: |
77814769 |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Engine Code: |
M47r, M47D |
| Balancing: |
High Speed Balancing Tested |
| Delivery Time: |
7 Days |
| Part Availablity: |
Available |
| Quality Warranty: |
12 Months |
| Turbine Housing Ar: |
Vnt1 |
| Actuator: |
434855-0022 |
| Body Material: |
Iron |
| Certification: |
ISO9001 |
| Type: |
Turbocharger |
Product Description

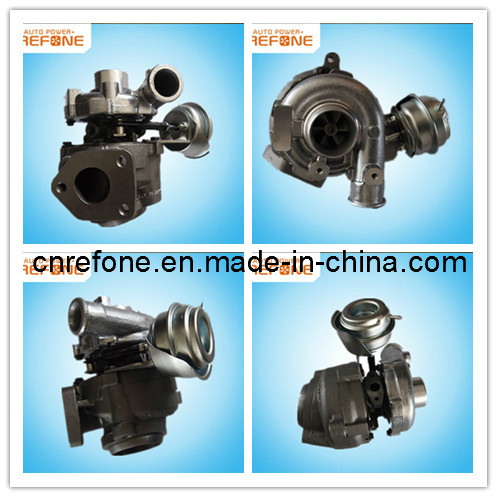

GT1749V 708366-0005 77814769 VNT1 Freelander Turbocharger
Specification
| Part Number | 708366-5005S |
| Previous Version | 708366-0005, 708366-9005S, 708366-0001, 708366-0002, 708366-0003, 708366-5002S |
| OE number | 77814769, 77814759, 7781450B, 7781450C03, 7781475C03, 7781476C03, STC4546, LR006108, LR008839, 7781475.9, 7781476.9, 7781450B, STC4547 |
| Year | 2000-06 |
| Description | Land-Rover Freelander I 2.0L, TD4 |
| CHRA | 706287-0002 |
| Turbo Model | GT1749V |
| Engine Code | M47R, M47D |
| Engine Manufacturer | BMW |
| Displacement | 2.0L, 2000 ccm, 4 Cylinders |
| KW | 82/112 HP |
| Angle α (compressor housing) | 150 |
| Angle β (turbine housing) | 295 |
| Bearing Housing | 706288-0002 |
| Turbine Wheel | 434533-0002 |
| Comp. Wheel | 702489-0001 |
| Back plate | 700593-0006 |
| Heat shield Number | 433112-0001 |
| Nozzle Ring Assembly | 434596-0002 |
| Repair Kit | 732248-003/732245-0001 |
| Thrust Kit | 732248-0003 |
| Turbine Housing | 707515-0006 |
| Compressor Cover | 434725-0004 |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0022 |
| Gasket (turbine inlet) | 210563 |
| Gasket (oil outlet) | 210243 |
| Replaced by | 708366-0007, 708366-5006S |
| Manufacturer | Honeywell-Garrett |
Applications:
2000-08 Audi A4, A6 with AAVF, AWX, BLB, BPW Engine
2000-08 Skoda Superb Tdi with AVF, AWX, BLB, BPW Engine
2000-08 Volkswagen Passat TDI with AVF, AWX, BLB, BPW Engine
Our Service:
1.12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Company Imformation:
Refone Auto Power Co., Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading. Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide:
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us:
1.1 Year quality warranty.
2. High speed balancing tested.
3. Meeting customers' needs.
4. Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
| RHB31 | VZ9 NB130042/VA110023/VA110065/VB110023/
VB110065/VC110023/VC110065/VD110023/
VD110065/VE110065/VF110065 | | SUZUKI Jimmy 500-660cc engine,or for motorcycle and dune buggy modification purpose |
| RHB31 | VZ21 VE110069/VJ110069 | | SUZUKI Jimmy 500-660cc engine,or for motorcycle and dune buggy modification purpose |
| RHB5 | 8973659480 | 34123A | Isuzu |
| RHB5 | 8944739540 | | Isuzu 100ps |
| RHC7 | 1-14400-2100 | | Ex200-1 6BDIT |
| RHF4 | VV14 | | Mercedes-PKW Sprinter II 211CDI/311CDI/411CDI/511CDI |
| RHF4H | VG420014 | | |
| RHF4V | VJ32 | | Mazda 6 CiTD |
| RHF4V | VJ33 | WL8413700A | MAZDA |
| RHF5 | 3047087 | 8973311850 | Isuzu |
| RHF5 | 897139743 | | Isuzu |
| RHF5 | 8973659480 | 34123A | Isuzu |
| RHF5 | 897240101 | VA20037 | IHI VIDA--Isuzu Pick-up,4JAIT,2.5L |
| RHF5B | VH660012 | 8970863433 | ISUZU/Opel FRONTERA |
| IHIVVP1 | 507/VJ400002 | 9622526980 | Citroen Xsara/Picasso |
| IHIVA70 | F400010 | 35242096F | Cherokee 2.5CRO |
| RHB31 | VZ9 NB130042/VA110023/VA110065/VB110023/
VB110065/VC110023/VC110065/VD110023/
VD110065/VE110065/VF110065 | | SUZUKI Jimmy 500-660cc engine,or for motorcycle and dune buggy modification purpose |
| RHB31 | VZ21 VE110069/VJ110069 | | SUZUKI Jimmy 500-660cc engine,or for motorcycle and dune buggy modification purpose |
| RHB5 | 8973659480 | 34123A | Isuzu |
| RHB5 | 8944739540 | | Isuzu 100ps |
| RHC7 | 1-14400-2100 | | Ex200-1 6BDIT |
| RHF4 | VV14 | | Mercedes-PKW Sprinter II 211CDI/311CDI/411CDI/511CDI |
| RHF4H | VG420014 | | |
| RHF4V | VJ32 | | Mazda 6 CiTD |
| RHF4V | VJ33 | WL8413700A | MAZDA |
| RHF5 | 3047087 | 8973311850 | Isuzu |
| RHF5 | 897139743 | | Isuzu |
| RHF5 | 8973659480 | 34123A | Isuzu |
| RHF5 | 897240101 | VA20037 | IHI VIDA--Isuzu Pick-up,4JAIT,2.5L |
| RHF5B | VH660012 | 8970863433 | ISUZU/Opel FRONTERA |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
