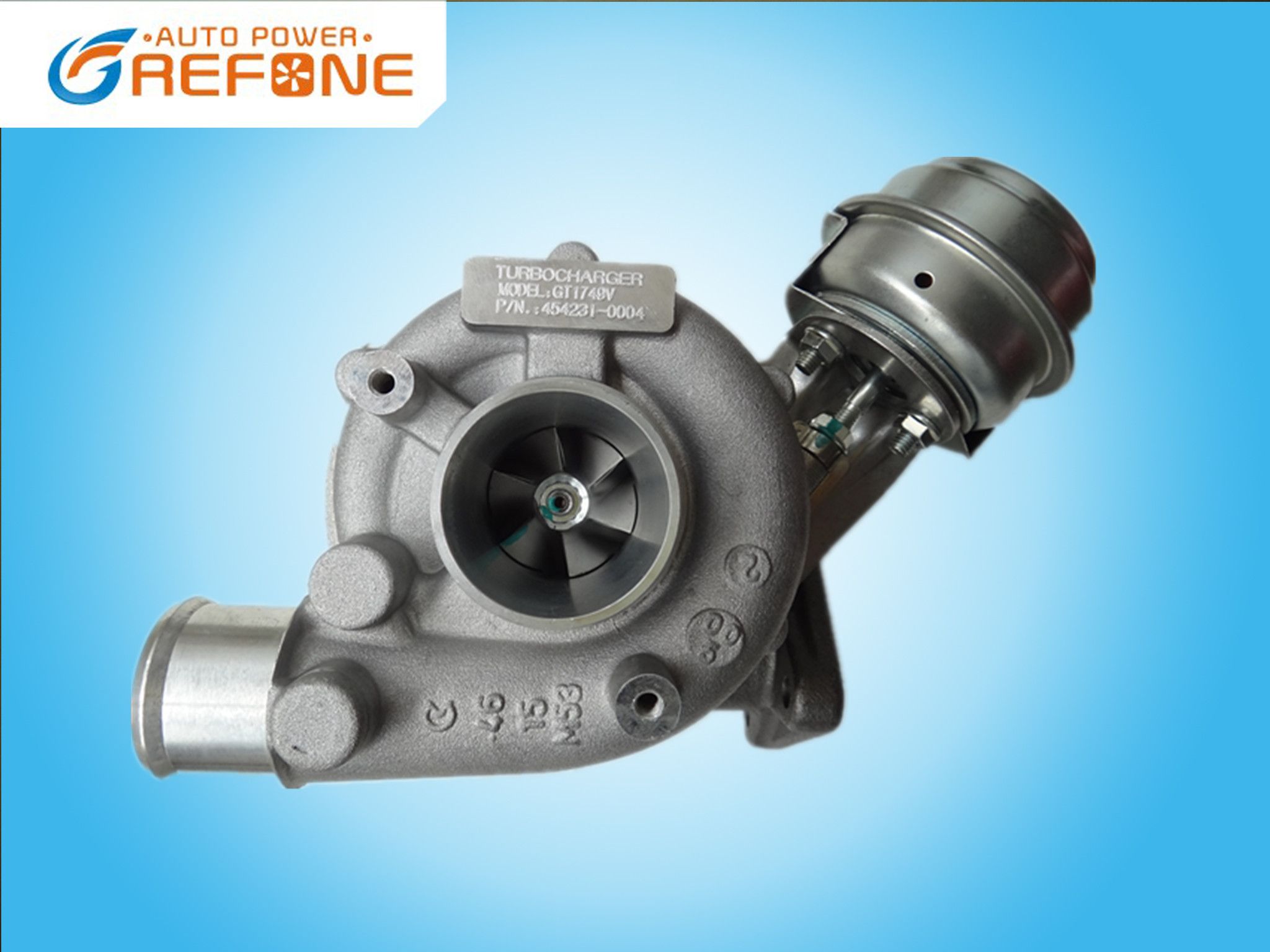

Δ GT1749V 454231-5007S turbocharger specs
| Part Number |
454231-5007S
|
| Previous Version |
454231-0001, 454231-0003, 454231-0004, 454231-0007, 454231-5005S, 454231-5012S, 454231-9012S, 454231-0007, 454231-7
|
| OE number |
028145702H, 028145702HV225, 028145702HV500, 028145702HX, 028145702HV
|
| Year |
1997-04
|
| CHRA |
433395-0019 (433395-5019S)
|
| Turbo Model |
GT1749V (S1), GT1749V(S2)
|
| Engine |
AVB, AHH/AFN, TDI 110 PD, TDI 115 PD, PD UI
|
| Engine Manufacturer | VW |
| Displacement |
1.9L, 1900 ccm
|
| KW |
110/115
|
| RPM Max |
4250
|
| Fuel |
Diesel
|
| Angle α (compressor housing) | 90 |
| Angle β (turbine housing) | 230 |
| Bearing Housing |
434533-0002/433145-0004
|
| Turbine Wheel |
434533-0002
|
| Comp. Wheel |
434812-0001
|
| Back plate |
434813-0001/700593-0006
|
| Heat Shield |
433112-0001
|
| Repair Kit Minor |
732136-0001
|
| Repair Kit Major |
732248-003/732245-0001
|
| Thrust Kit |
732248-0003
|
| Nozzle Ring Assembly | 434596-0001 |
| Turbine Housing |
701227-0001
|
| Compressor Cover | 434808-0002 |
| Turbine Housing AR | VNT1 |
| Actuator |
434855-0012
|
| Replaced By |
454231-0010
|
Δ Application
1997-04 Audi A4 TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Audi A6 TD with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Skoda Superb TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Volkswagen Passat TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-99 Audi A4 1.9L TDI (B5) Engine AHH / AFN
2000-04 Audi A4 1.9L TDI (B6) Engine AVB, BKE
1997-01 Audi A6 1.9L TDI (C5) Engine AHH / AFN
1997-00 Volkswagen Passat B5 1.9L TDI Engine AHH / AFN
Δ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Δ GT1749V turbochargers
| GT1749V |
454161-0001
| 028145702D | VW | Passat1.9 | TDI 110 |
| GT1749V |
717858-0001/7
| 038145702E | VW | A4 TDI | PD UI 130HP |
| GT1749V |
701855-0005
| 028145702PV500 | FORD | Galaxy Tdi 1.9L | TDI 110 |
| GT1749V |
708639-0002
| 8200110519 | RENAULT | Laguna II | F9Q |
| GT1749V |
713517-0012
| 1S4Q-6K682-AL | FORD | Focus 1.8L - DI D | TDCi |
| GT1749V |
4542320001/3/4/5
| 038253019A | AUDI | A3 TDI/New Golf TDI | TDI 110 PD |
| GT1749V |
712766-0001
| 46786078 | ALFA ROMEO | 145 JTD | M.724.19 (8 valve) |
| GT1749V |
756047-0002
| 9658673480 | PEUGEOT | 207 Hdi 136HP (05) 2.0L D | DW10BTED4S |
| GT1749V |
721021-0001
| 038253016G | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | PD UI |
| GT1749V |
729853-0001
| 6280960699 | M-BENZ | S class (W220/163) | OM628 |
| GT1749V |
713672-0002/3
| 038253019C | AUDI | A3 TDI | 1.9L |
| GT1749V |
713672-0006
| 038253019C | AUDI | A3 TDI | 1.9L |
| GT1749V |
713673-0002
| 038253019NV220 | AUDI | A3 TDI - 4 cyl. - 1.9L. 115HP. DI D | PD UI |
| GT1749V |
454231-0001
| 028145702HV500 | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | |
| GT1749V |
454231-0003
| 028145702HV500 | AUDI | A3 TDI - 4 cyl. - 1.9L DI D | TDI 110 PD |
| GT1749V |
721164-0003
| 17201-27030-A | TOYOTA | Estima | 2.0L |
| GT1749V |
750030-0002
| 9654128780 | FORD | Focus,C-MAX,PG307 407 | |
| GT1749V |
759688-0005/7
| 6460900480 | M-BENZ | Sprinter 2.2L,2005 | OM646 |
| GT1749V |
714467-0008
| 2S7Q-6K682-AD | FORD | Transit V-184,2.0L,2002 | 125PS |
| GT1749V |
753556-0002
| 9654919580 | PEUGEOT | 207 Hdi 136HP (05) 2.0L D | DW10BTED4S |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
