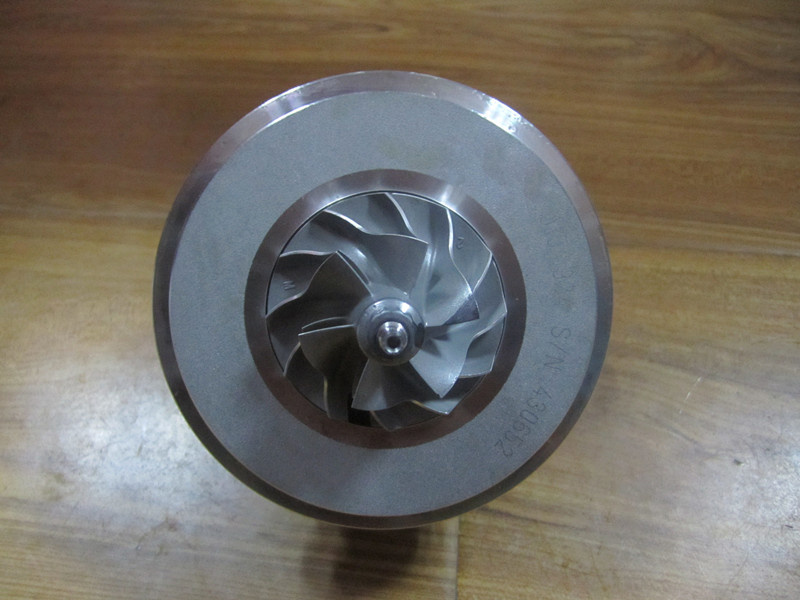

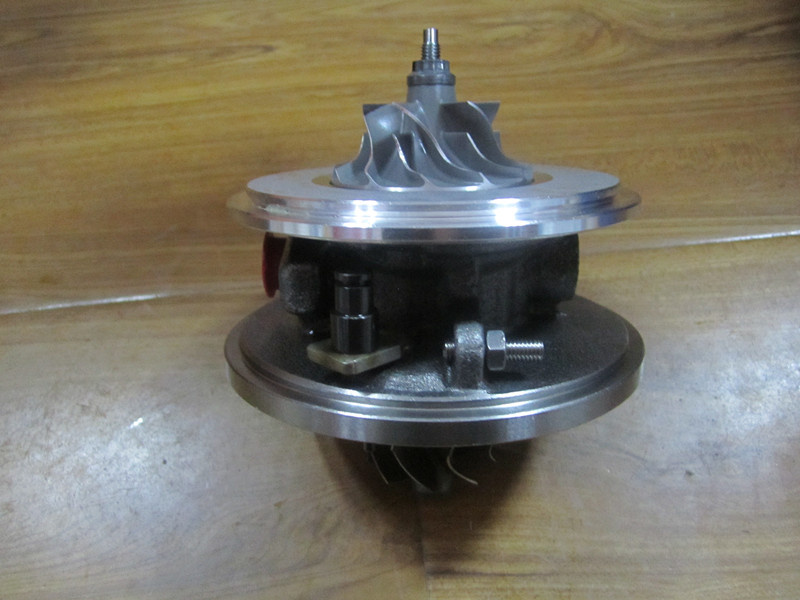

GT1749V 454231-0002, 454231-0006, 454231-0008, 454231-0009, 454231-0010 turbo chra cartridge for AudiProduct Description
| Part Number | 454231-5010S |
| Previous Version | 454231-0002, 454231-0006, 454231-0008, 454231-0009, 454231-5009S, AR0110 |
| OE number | 028145702R, 028145702RV225, 028145702RV500, 028145702RV550 - 038145702L, 028145702H, 028145702HX, 028145702HV |
| Year | 1999-06 |
| Description | Audi A4, Skoda Superb, Volkswagen Passat B5 |
| CHRA | 433395-0019 |
| Turbo Model | GT1749V (S2) |
| Engine | PD UI 100HP, TDI 115 PD |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm |
| KW | 74/81/85 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Bearing Housing | 433145-0004 |
| Turbine Wheel | 434533-0002 |
| Comp. Wheel | 434812-0001 |
| Back plate | 700593-0006 |
| Heat Shield | 433112-0001 |
| Repair Kit Minor | 732136-0001 |
| Repair Kit Major | 732248-003/732245-0001 |
| Thrust Kit | 732248-0003 |
Applications
1996-00 Audi A4 TDI Car with PD UI 100 HP - TDI 115 PD Engine
1996-00 Seat Skoda TDI Car with PD UI 100 HP - TDI 115 PD Engine
1999-06 Volkswagen Passat TDI Car with PD UI 100 HP - TDI 115 PD Engine
1997-99 Audi A4 1.9 TDI (B5) Engine AHH / AFN
2000-01 Audi A4 1.9 TDI (B5) Engine ATJ / AJM
2000-04 Audi A4 1.9 TDI (B6) Engine AVB, BKE
1997-01 Audi A6 1.9 TDI (C5) Engine AHH / AFN
1998-01 Audi A6 1.9 TDI (C5) Engine ATJ
2000-05 Skoda Superb I 1.9 TDI Engine AVB
1997-00 Volkswagen Passat B5 1.9 TDI Engine AHH / AFN
1998-05 Volkswagen Passat B5 1.9 TDI Engine AVB
1998-00 Volkswagen Passat B5 1.9 TDI Engine AJM / ATJ
Company Description:
REFONE Turbo has been making turbocharger and components( including cartridge, compressor wheel, turbine wheel, turbine housing, compressor housing, waste gate, nozzle ring, repair kits,etc) for the aftermarket heave diesel trucks and light vehicles.
We develop new part to keep with the changing market request and supply arround 800 turbo models now.We producing custom turbo parts according the clients' sample or drawing.
Quality is our culture. Our quality and price is highly welcomed by many European, Japanese and South American customers. Sample order is accepted so you could check quality firstly.
Why choose us:1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Service
1.12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
Welcome to contact us! We will feedback in 24 hours.
Contact us
Contacts: Gavin Wang
Website: www.cnrefone.com
| GT1749V | 717858-0007/1 |
| GT1749V | 708639-0002 |
| GT1749V | 713672-0002 |
| GT1749V | 713673-0002 |
| GT1749V | 454231-0001/3/4/5 |
| GT1749V | 454231-0002/6/8/9 |
| GT1238S | 712290-0001 |
| GT1544V | 753420-0002 |
| GT1852V | 709836-0004/3/1 |
| GT1749V | 721164-0003 |
| GT1646V | 765261-0003/5 |
| GT1646V | 751851-0003 |
| GT1852V | 718089-0005/8 |
| GT1749V | 714467-0008 |
| GT1749V | 724930-0006 |
| GT1849V | 717626-0001 |
| GTB1749VM | 757042-0013/10 |
| K03 | 5303-970-0029 |
| K14 | 5314-970-7018 |
| KP35 | 5435-970-0005/6 |
| K03 | 5303-970-0055 |
| BV39 | 5439-970-0022/21 |
| K03 | 5303-970-0019 |
| BV39 | 5439-970-0030 |
| K03 | 5303-970-0051 |
| RHF4V | VJ32 |
| TD025S2 | 49173-07506 |
| TF035HM | 49135-05130/2 |
| GTA1749V | 761618 |
| GTA2052GVK | 757608 |
| TD04HL | 49189-02950 |
| GT2256MS | GARRET | 704136-5003S | 8973267520 - 8972083520 - 8973267520 | ISUZU | NPR 2001,Ukrnian BOGDAN 5.6L | 4HG1-T |
| GT2256V | GARRET | 704361-0004/5/6 | 2249950.9 | BMW | 330 D - 6 cyl. - 3.0L - DI D | M57D E46 |
| GT2256V | GARRET | 707114-0001 | 500379251 | IVECO | Daily | 8140.43K.4000 |
| GT2256V | GARRET | 710811-5002S | 55191597/46769104 | ALFA ROMEO | 156/166 JTD 5 Cyl. - 2.4L DI D | 841C.000 |
| GT2256V | GARRET | 710812-0001 | 46767677 | ALFA ROMEO | 166 JTD 2.4L DI D | M722.PT.24 |
| GT2256V | GARRET | 709838-0001 | 6120960399 | M-BENZ | Sprinter 2.7L,2000 | OM612 |
| GT2256V | GARRET | 715910-0001/2 | 6120960599 | M-BENZ | E270 CDI | OM612 |
| GT2256VK | GARRET | 736088-0003 | 6470900280 | M-BENZ | Sprinter 2.7,2004 | OM647 |
| GT2259 | GARRET | 452214-0001 | 9040960799 | M-BENZ | Truck 4.3L,1995 | OM904LA |
| GT2260V | GARRET | 753392-0018 | 7791046F | BMW | X5 3.0D | |
| GT2260V | GARRET | 725364-0004 | 7789081F | BMW | 530D | |
| GT2359V | GARRET | 709841-0001/2 | 6130960199 | M-BENZ | E class | OM613 |
| GT25 | GARRET | 708954-0001 | | SSANGYONG | | |
| GT2538C | GARRET | 454193-0001 | 6020960799 | M-BENZ | Sprinter 2.9L,1996 | OM602 |
| GT2538C | GARRET | 454207-0001 | 6020960899 | M-BENZ | Sprinter 2.9L,1997 | OM602 |
| GT2538C | GARRET | 454111-0001 | 6020960199 | M-BENZ | Sprinter 2.9L,1996 | OM602 |
| GT25C | GARRET | 703325-0001 | 82145701 | VW | LT Van | 2.8 |
| GT25V | GARRET | 701900-0002 | 46766388 | LANCIA | KAPPA JTD | 2.4 L / D |
| GT2556V | GARRET | 454191-0003/4/5/6 | 2247691F | BMW | 530D & 730D 3.0L | M57D E38. E39 |
| GT2556V | GARRET | 454191-0008/9/10/11/12/13 | 2247691F | BMW | 530D & 730D - 6 cyl. - 3.0L | M57D E38. E39 |
| GT2556V | GARRET | 721204-0001 | 9.0529.20.1.0071-04 | VW | LT2 Van | 4.07 TCA Electronic |
| GT3576DL | GARRET | 704407-0011 | 8926029271 | ISUZU | 6HK1T | |
| GT3576 | GARRET | 479016-0002 | 24100-3251C | HINO | GD/GH | J08C-T1 |
| GT3776 | GARRET | 452159-0001 | 87841189 | FORD | New Holland,COMBINE | EP040B |
| GT3782S | GARRET | 452312-0009 | 1412942 - 1501661 - 1524889 - 1766753 | SCANIA | N-bus | |
| GT37VA | GARRET | 736554-0011 | 8973525645 | GMC | DURAMAX LLY, LBZ, LMM | |
| GT3782VA | GARRET | 743250-0014 | 1832255C91 | FORD | 6.0L | |
| GT3782VA | GARRET | | 1854593C91 | FORD | 6.0L | |
| GTP38 | GARRET | 702014-0017 | 1831434C96 | FORD | 7.3L Powerstroke | |
| GTP38 | GARRET | 702011-5011 | 1831383C92 | FORD | 7.3L Powerstroke | 1995-2003 |
| | GARRET | | 8976024982 | ISUZU | 7.8L ISUZU TILTCAB GMC TOPKICK 04-08 | |
| | GARRET | 480000-0426 | 14411-28705-9 | NISSAN | | |
| GTA4082 | GARRET | 739542-0002 | 1520024 | SCANIA | | |
| GT4082 | GARRET | 452309-0012/13 | 1501643/1524874 | SCANIA | L-Bus 9.0L | DSC912 |
| GT4088 | GARRET | 452231-0002 | 1314933 | DAF | F75 | PF230M |
| GT4288 | GARRET | 452109-0001 | 1388059 | SCANIA | SCANIA 113 | |
| GT4288 | GARRET | 703072-0001 | 1412299 | SCANIA | | DSC1201/2/3/5 |
| GT4294 | GARRET | 706844-0001 | 1362357 | DAF | Leyland DAF,95XF | XF250/280/315 |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
