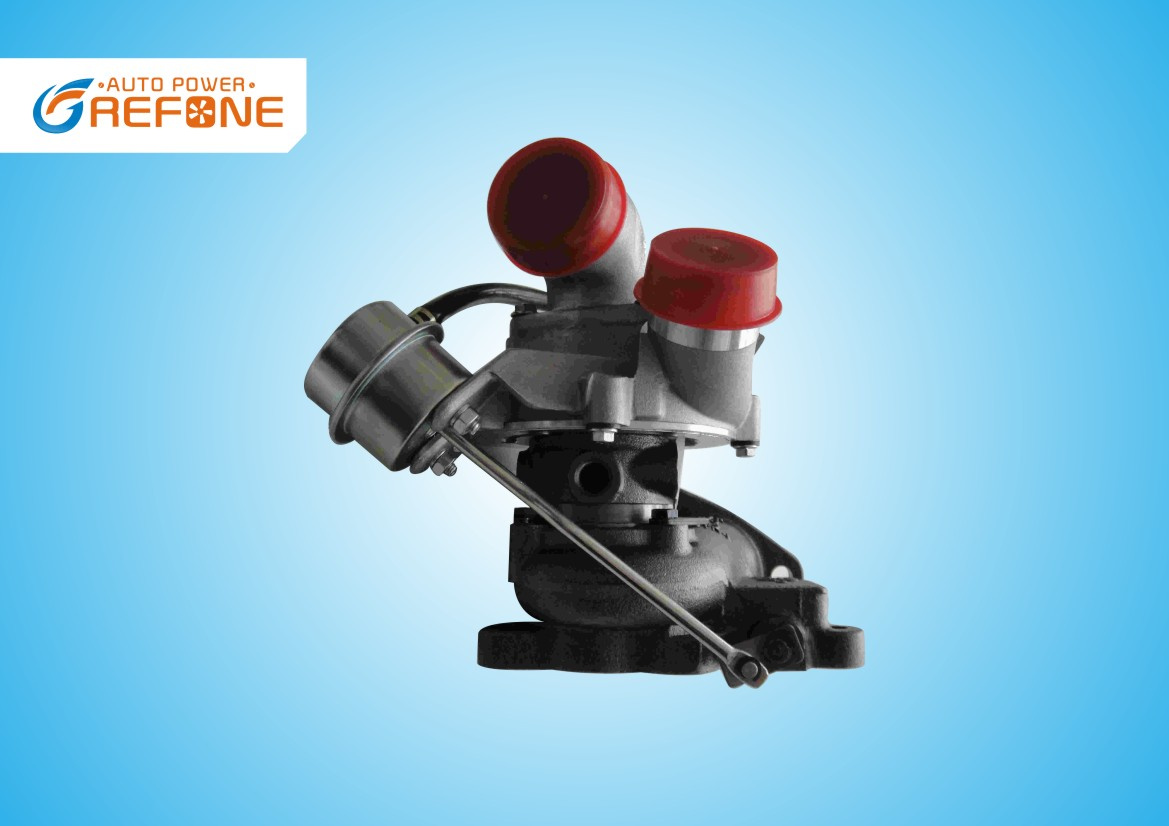

GT1749S 715924 28200-42700 Truck 4D56TCI Engine Turbocharger for Hyundai

Δ Turbo specs

Part Number	715924-5004S
Previous Version	715924-0004,715924-0001, 715924-0003, 715924-0002, 715924-4
OE number	2820042700, 28200-42700
Year	2003-
CHRA	433352-0031 (433352-5031S)
Turbo Model	GT1749S
Engine	4D56TCI, Euro III 4D56TCi, D4BH, 4D56TCi Euro3
Displacement	2.5L, 2476 ccm, 4 Cylinders
KW	73/100/206
RPM Max	4000
Fuel	Diesel
Angle a (compressor housing)	110
Angle (turbine housing)	270
Bearing Housing	436132-0003/434578-0012
Turbine Wheel	434714-0021
Comp. Wheel	436132-0003
Back plate	433254-0003/433294-0002
Heat shield Number	N/A
Repair Kit	732252-0001 $97.60
Turbine Housing	452540-0007
Compressor Cover	435791-0143
Turbine Housing AR	0.40
Settings Waste gate (pressure)	0.670-0.710/0.870-0.910 bar
Settings Waste gate (lifting rod)	1.00/4.00 mm
Actuator	432340-0119
Gasket oil inlet	1203715
Gasket (oil outlet, Non Metallic)	2455001 (210553)
(turbine inlet, Gasket steel)	2455183
(turbine outlet, Gasket steel)	2455184



Δ Applications

2003- Hyundai Truck Porter



Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support



Δ More turbos of GT1749S model

Model	Part No.	Oem No.	Application
GT1749S	730640-5001S 730640-0001	282004A200 28200-4A200	Hyundai Galloper I / II
GT1749S	708337-0002  708337-5002S	28230-41730	Hyundai Truck Mighty II Engine : D4AL
GT1749S	715843-0001 715843-5001S	28200-42600	Hyundai Commercial Starex(H1) Hyundai Commercial H100 Engine : 4D56
gt1749	716938-0001 716938-5001S	28200-42560	Hyundai Commercial Starex (H1) with 4D56T
