Gt1549s 433289-0419 Cartridge for 762785-5004s Turbocharger

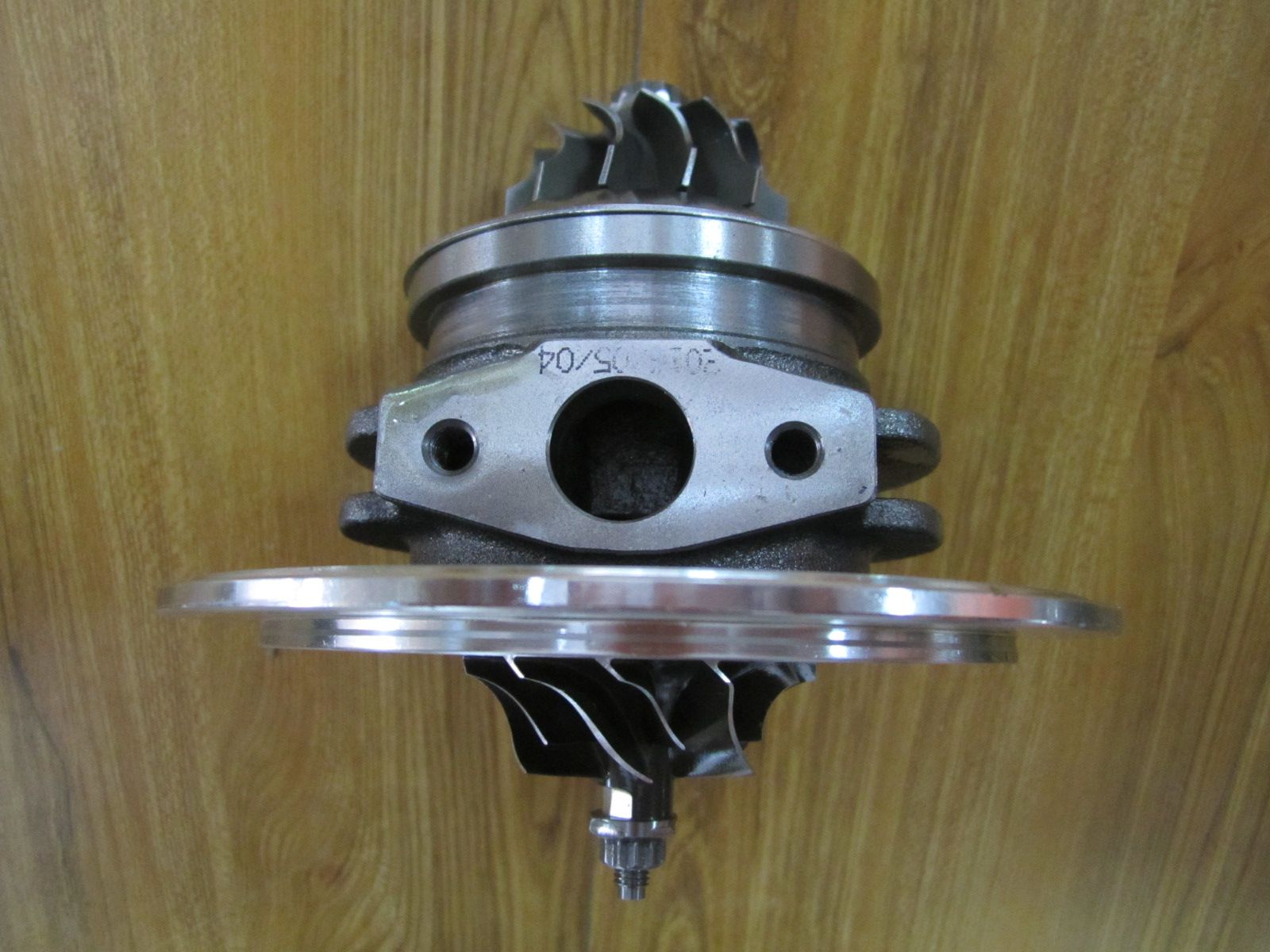

Δ GT1549S 433289-0419 cartridge for 762785-5004S turbocharger

Part Number	762785-5004S
Previous Version	762785-0001, 762785-0002, 762785-0003, 762785-5004S, 762785-5003S
OE number	8200543466B, 8200766344, 8200637628, 820091077A, 7701477300, 7711368774
Year	2006-08
Description	Traffic, Commercial Vehicle
CHRA	433289-0419 (433289-0380) (1102015955)
Turbo Model	GT1549S
Engine	M1DVU, M1D VU Euro 4, M9R780
Displacement	2.0L, 2000 ccm, 4 Cylinders
KW	84/90 HP
RPM Max	4000
Fuel	Diesel
Angle α (compressor housing)	13
Angle β (turbine housing)	0
Bearing Housing	435911-0002/713782-0003 (1102015453)
Turbine Wheel	434712-0034
Comp. Wheel	784361-0003
Back plate	703682-0220 (1102015319)
Heat shield Number	434302-0001 (1102015343)
Repair Kit	732252-0001 (1102015756)
Turbine Housing	700866-0013
Compressor Cover	752187-0017
Actuator	703785-0017
Settings Waste gate (pressure)	0.120-0.400 bar
Settings Waste gate (lift shaft)	1.0-4.0 mm/9.5-11.5 mm
Gasket (turbine inlet)	210661
Gasket (turbine outlet)	210880
Washer (oil inlet fitting)	435197-0005
Gasket (oil outlet)	210243
Manufacturer	Honeywell-Garrett

Applications
2006-08 Renault Commercial Traffic with M1D VU Euro 4 Engine
2006- Opel Vivaro 2.0L CDTI with M9R780 Engine

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
